F401 A2 (F401) - Honda Tiller, Made in Japan (SN: F401-1000001 - F401-1099999) WHEEL SHAFT Parts Diagram

Tiller, Made in Japan

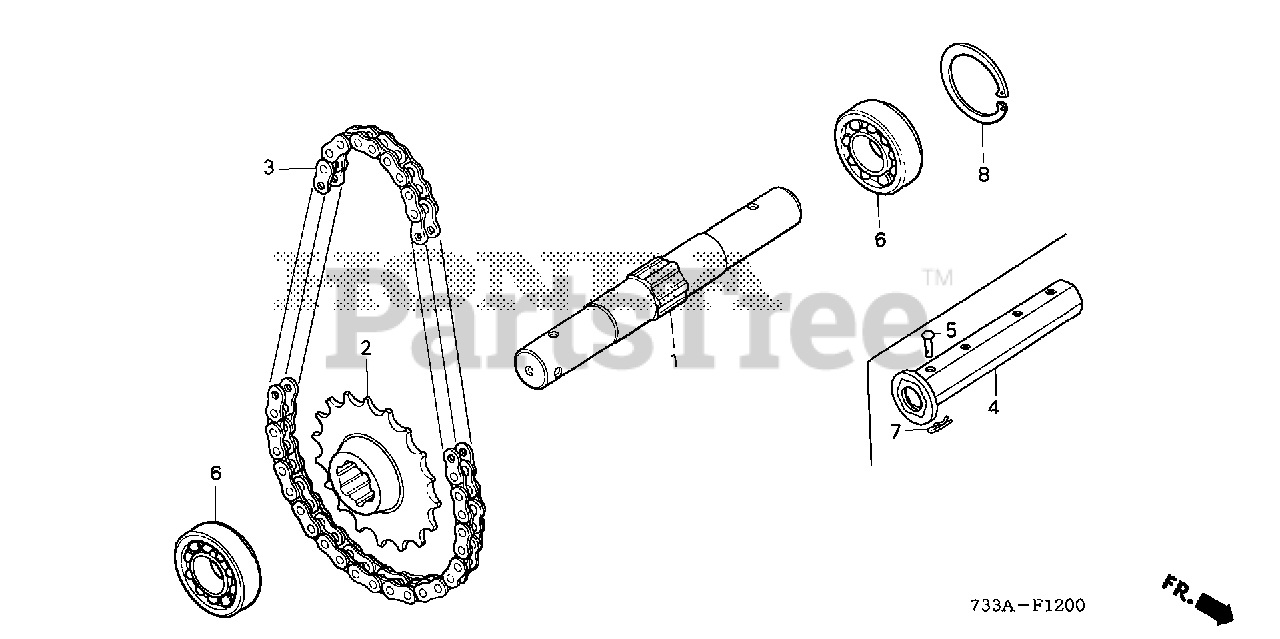

WHEEL SHAFT Parts Diagram

  • Title

1

Honda 23371-733-700

SHAFT, WHEEL

$232.99

$

Usually ships in 3-6 days

0

2

Honda 23372-723-672

SEE PART DETAILS - PRI; SPROCKET, DRIVEN (18T)

$84.99

$

Usually ships in 3-6 days

0

3

Honda 23861-723-721

CHAIN, FINAL

$104.99

$

Usually ships in 3-6 days

0

4

Honda 42400-733-A00

SHAFT A, EXTENSION (23X32X179)

Note: (Optional).

$82.99

$

Usually ships in 3-6 days

0

5

Honda 90757-723-670

PIN (10X53.5)

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

6

Honda 91003-733-701

BEARING, RADIAL BALL (60/32)

$28.99

$

Usually ships in 3-6 days

0

7

Honda 94252-10000

PIN, LOCK (10MM)

Note: (Optional).

$1.99

$

In Stock, only 4 left!

0

8

Honda 94520-58000

CIRCLIP, INNER (58MM)

$4.99

$

Usually ships in 3-6 days

0
