F401 A2 (F401) - Honda Tiller, Made in Japan (SN: F401-1000001 - F401-1099999) CRANKCASE COVER Parts Diagram

Tiller, Made in Japan

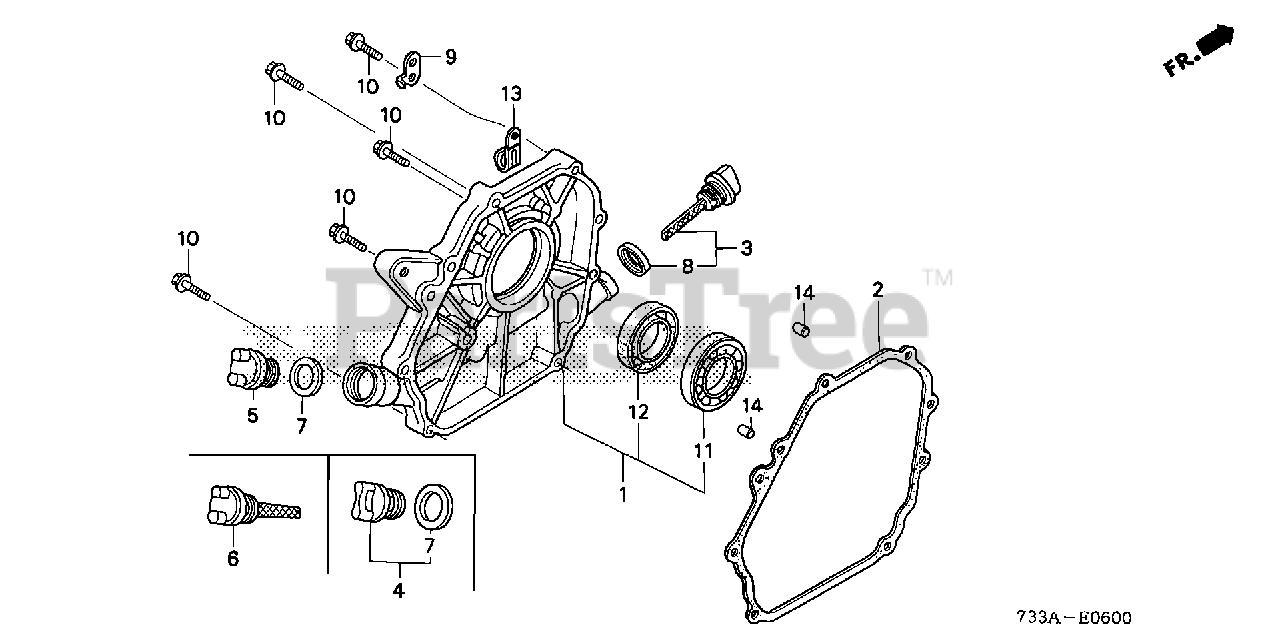

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZE0-010

COVER ASSY., CRANKCASE

$198.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZH7-800

SEE PART DETAILS - PRI; GASKET, CASE COVER

$9.49

$

In Stock, Qty 12

0

3

Honda 15600-ZE1-000

SEE PART DETAILS - SUP; CAP ASSY., OIL FILLER (GRAY)
(Superseded to 15600-ZE1-003)

$1.49

$

In Stock, Qty 8

0

3

Honda 15600-ZE1-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER (GRAY)
(Superseded to 15600-Z0T-810)

$1.49

$

In Stock, Qty 8

0

5

Honda 15620-ZG4-910

SEE PART DETAILS - PRI; CAP, OIL FILLER

Note: Use from Engine SN 2431393.

$4.49

$

Usually ships in 3-6 days

0

6

Honda 15621-ZE1-000

CAP, OIL HOLE

Note: Use up to Engine SN 2431392.

$6.99

$

Usually ships in 3-6 days

0

7

Honda 15621-896-010

GASKET, OIL FILLER CAP

$5.49

$

In Stock, Qty 5

0

8

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$3.49

$

In Stock, only 1 left!

0

9

Honda 32302-744-000

STAY, WIRE CLIP

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.99

$

In Stock, Qty 8

0

11

Honda 91001-878-003

BEARING, RADIAL BALL

$37.99

$

In Stock, only 1 left!

0

12

Honda 91203-ZE0-013

OIL SEAL (22X41X6)

$10.99

$

Usually ships in 3-6 days

0

13

Honda 91406-657-671

CLIP, WIRE HARNESS

$14.99

$

Usually ships in 3-6 days

0

14

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0
