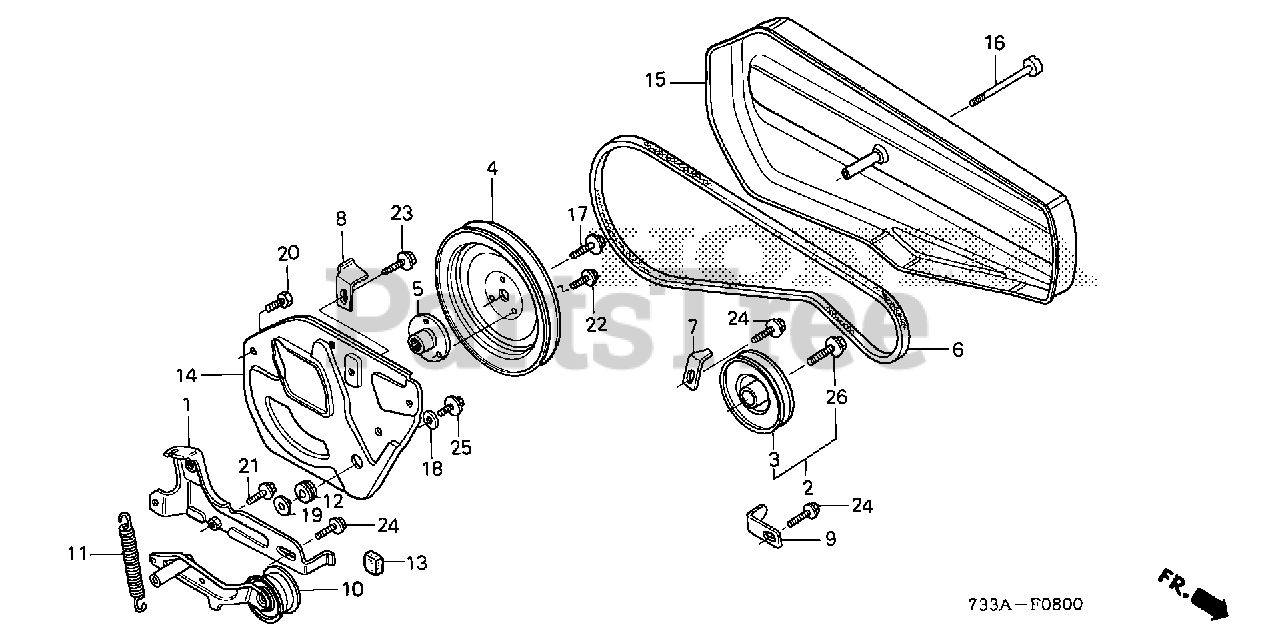

F401 A2 (F401) - Honda Tiller, Made in Japan (SN: F401-1000001 - F401-1099999) BELT COVER Parts Diagram

Tiller, Made in Japan

BELT COVER Parts Diagram

  • Title

1

Honda 11801-733-000

STAY, ENGINE

$39.99

$

Usually ships in 3-6 days

0

2

Honda 22040-733-305

SEE PART DETAILS - PRI; PULLEY SET, DRIVE (NOT AVAILABLE)

Note: Use up to Frame SN 1004348.

$

$

Not available

3

Honda 22411-733-000

SEE PART DETAILS - SUP; PULLEY, DRIVE
(Superseded to 22040-733-305)

Note: Use up to Frame SN 1004348.

$

$

Not available

3

Honda 22411-733-010

PULLEY, DRIVE

Note: Use from Frame SN 1004349.

$47.99

$

Usually ships in 3-6 days

0

4

Honda 22415-733-620

PULLEY, DRIVEN (141MM)

$47.99

$

Usually ships in 3-6 days

0

5

Honda 22426-733-000

BOSS, DRIVEN PULLEY

$12.99

$

Usually ships in 3-6 days

0

6

Honda 22431-733-622

V-BELT (37)

$40.99

$

In Stock, only 1 left!

0

7

Honda 22442-733-000

STOPPER, BELT (UPPER)

$12.99

$

Usually ships in 3-6 days

0

8

Honda 22444-733-000

STOPPER C, BELT

$9.99

$

Usually ships in 3-6 days

0

9

Honda 22445-733-000

STOPPER, BELT (LOWER)

$12.99

$

Usually ships in 3-6 days

0

10

Honda 22520-733-000

ARM, TENSIONER

$61.99

$

Usually ships in 3-6 days

0

11

Honda 22531-719-000

SPRING, BELT TENSIONER

$11.99

$

Usually ships in 3-6 days

0

12

Honda 32983-028-000

GROMMET, WIRE HARNESS

$1.99

$

Usually ships in 3-6 days

0

13

Honda 38260-422-000

HOLDER, FUSE STAY (NOT AVAILABLE)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 50650-733-000

STAY, BELT COVER

$44.99

$

Usually ships in 3-6 days

0

15

Honda 63610-733-000ZE

COVER, BELT *R280* (POWER RED)

$75.99

$

Usually ships in 3-6 days

0

16

Honda 90028-733-000

BOLT, BELT COVER (NOT AVAILABLE)

$

$

Not available

17

Honda 90101-733-000

BOLT, FLANGE

$4.49

$

In Stock, only 1 left!

0

18

Honda 90428-844-650

WASHER (8MM)

$4.99

$

Usually ships in 3-6 days

0

19

Honda 90563-045-000

WASHER, NUMBER BRACKET MOUNTING

$4.49

$

Usually ships in 3-6 days

0

20

Honda 92101-06008-0A

BOLT, HEX. (6X8)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 93404-06016-00

BOLT-WASHER (6X16)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0

23

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

23

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

24

Honda 95700-08016-00

BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

24

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

25

Honda 95701-08020-00

BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 1 left!

0

26

Honda 90029-733-000

BOLT, FLANGE (8X22)

Note: Use from Frame SN 1004349.

$4.49

$

Usually ships in 3-6 days

0

26

Honda 95701-08022-00

BOLT, FLANGE (8X22)

Note: Use up to Frame SN 1004348.

$2.99

$

In Stock, Qty 7

0
