F400 K1 A2 (F400) - Honda Tiller, Made in Japan (SN: F400-2100001 - F400-9999999) TRANSMISSION GEAR (TYPEA2) Parts Diagram

Tiller, Made in Japan

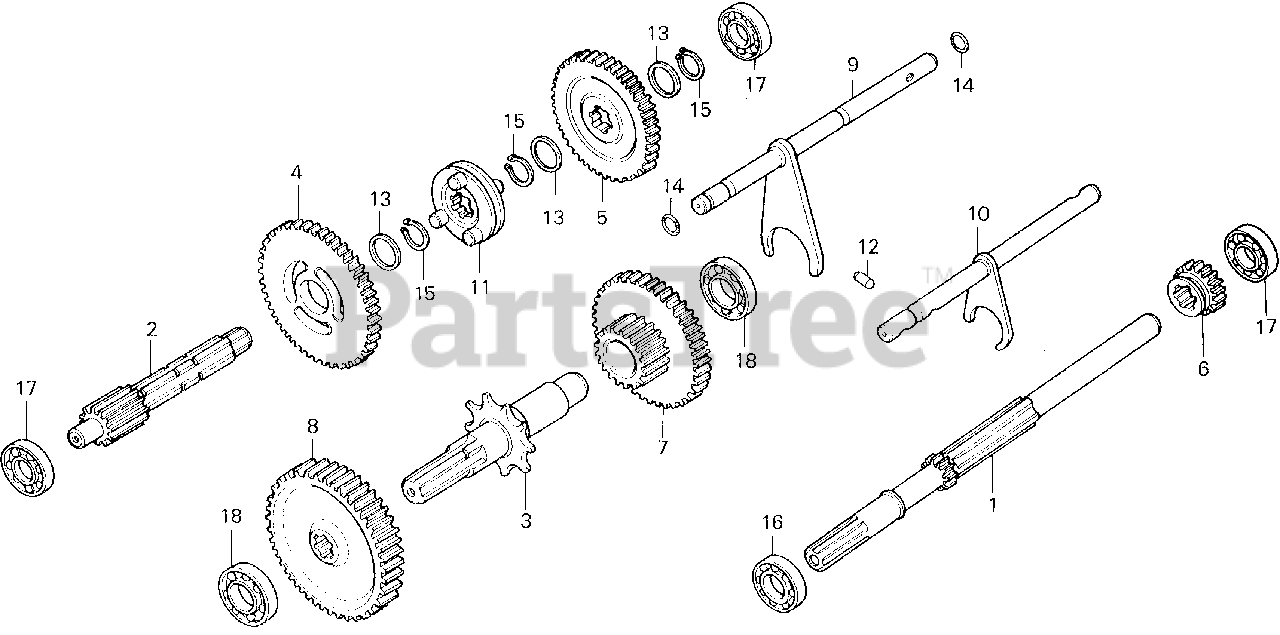

TRANSMISSION GEAR (TYPEA2) Parts Diagram

  • Title

1

Honda 23111-723-670

SHAFT, INPUT

$

$

Not available

2

Honda 23221-723-000

COUNTERSHAFT

$

$

Not available

3

Honda 23251-723-000

SHAFT, FINAL

$

$

Not available

4

Honda 23411-723-670

GEAR, COUNTERSHAFT FIRST

$

$

Currently unavailable

5

Honda 23421-723-000

GEAR, COUNTER

$

$

Not available

6

Honda 23451-723-000

GEAR, CHANGE

$39.99

$

Usually ships in 3-6 days

0

7

Honda 23461-723-000

GEAR, REVERSE IDLE

$

$

Not available

8

Honda 23581-723-000

GEAR, FINAL

$

$

Not available

9

Honda 24110-723-000

SHAFT, MAIN GEARSHIFT FORK

$

$

Not available

10

Honda 24120-723-000

SHAFT, SHIFT FORK REVERSE

$

$

Not available

11

Honda 24281-715-000

INSULATOR, PLATE (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 24481-719-000

PIECE, INTERLOCK

$

$

Not available

13

Honda 90451-040-000

WASHER, THRUST (17MM)

$

$

Not available

14

Honda 91302-GE0-000

O-RING (8.8X1.9)

$5.49

$

In Stock, only 2 left!

0

15

Honda 94510-17000

CIRCLIP (OUTER) (17MM)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 96100-60030

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6003)

$

$

Currently unavailable

16

Honda 96100-60030-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6003)

$12.99

$

Usually ships in 3-6 days

0

17

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 1 left!

0

18

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0
