F400 K1 A2 (F400) - Honda Tiller, Made in Japan (SN: F400-2100001 - F400-9999999) F400K1 FAN COVER + SIDE PLATE Parts Diagram

Tiller, Made in Japan

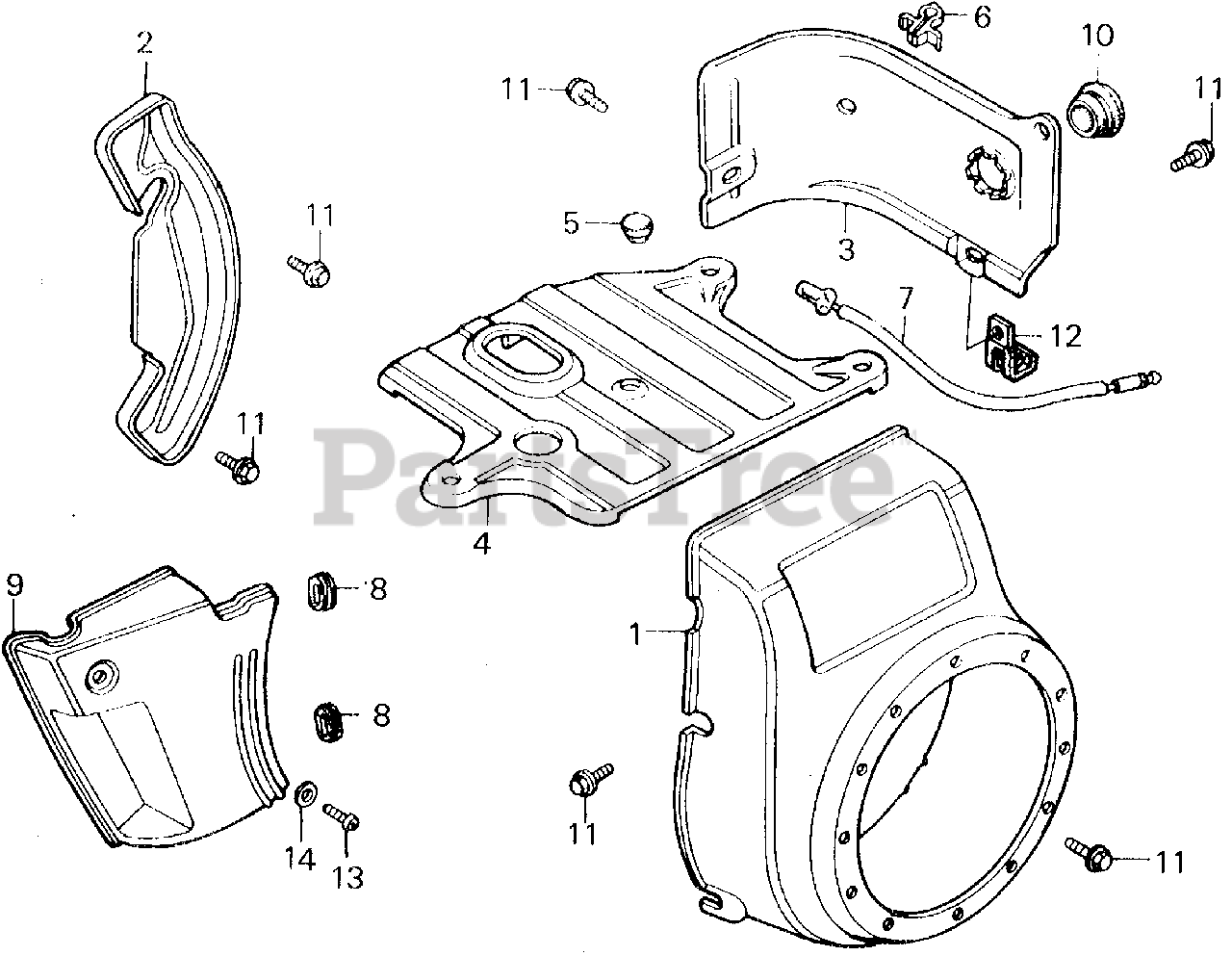

F400K1 FAN COVER + SIDE PLATE Parts Diagram

  • Title

1

Honda 19610-887-020ZA

SEE PART DETAILS - SUP; COVER, FAN *R8* (BRIGHT RED)

$

$

Currently unavailable

1

Honda 19610-887-020ZB

SEE PART DETAILS - PRI; COVER, FAN *R8* (BRIGHT RED)

$

$

Not available

2

Honda 19611-887-000

PLATE, SIDE

$

$

Not available

3

Honda 19631-887-791H

SHROUD *R8* (BRIGHT RED)

$

$

Not available

4

Honda 19641-887-791H

COVER, TOP *R8* (BRIGHT RED)

$

$

Not available

5

Honda 19643-883-010

GROMMET, TOP COVER

$3.49

$

Usually ships in 3-6 days

0

6

Honda 30701-887-790

CLIP, IGNITION WIRE

$5.49

$

Usually ships in 3-6 days

0

7

Honda 35310-887-790

WIRE A, ENGINE STOP

$14.99

$

Usually ships in 3-6 days

0

8

Honda 40513-310-000

RUBBER, CHAIN CASE SETTING

$3.49

$

In Stock, only 2 left!

0

9

Honda 63501-887-791

COVER, ENGINE SIDE

$

$

Not available

10

Honda 81329-567-020

GROMMET, DRAIN HOLE

$5.99

$

Usually ships in 3-6 days

0

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

12

Honda 91405-671-000

CLIP, CABLE

$12.99

$

Usually ships in 3-6 days

0

13

Honda 93500-06012-0B

SCREW, PAN (6X12)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94101-06200

WASHER, PLAIN (6MM)

$0.99

$

Usually ships in 3-6 days

0
