F400 K1 A2 (F400) - Honda Tiller, Made in Japan (SN: F400-2100001 - F400-9999999) F400K1 CARBURETOR (1000055) Parts Diagram

Tiller, Made in Japan

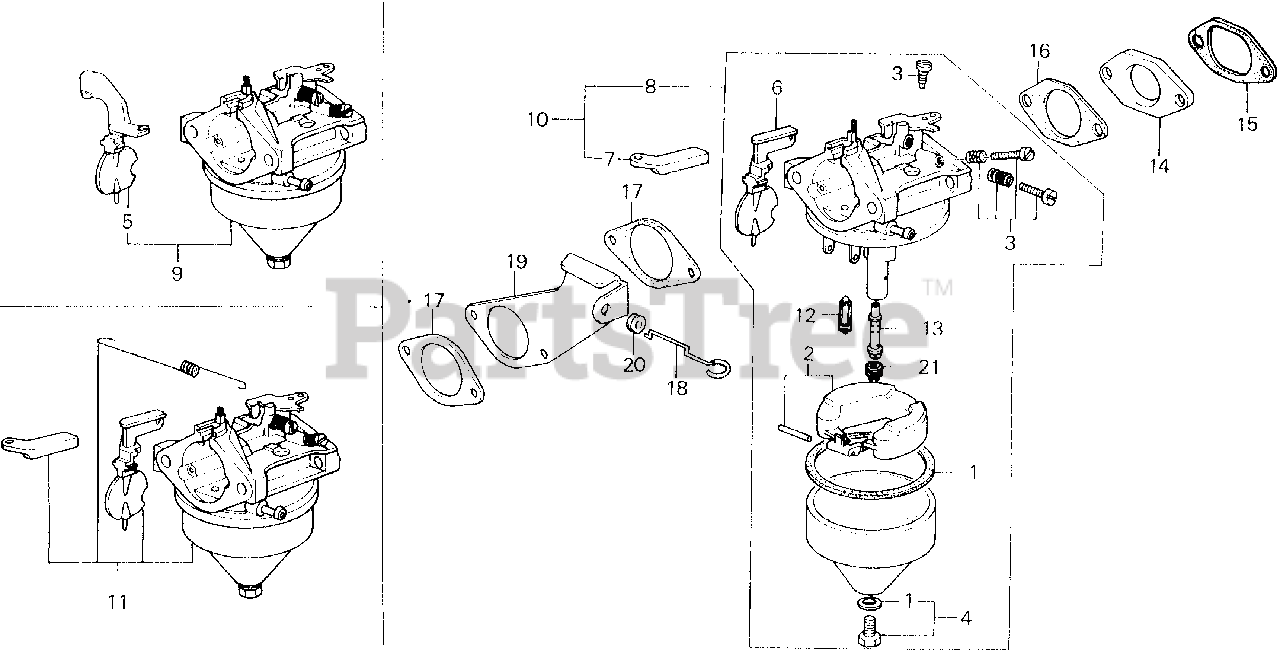

F400K1 CARBURETOR (1000055) Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

Note: Use up to Engine SN BB28A D.

$12.99

$

In Stock, Qty 6

0

2

Honda 16013-883-005

FLOAT SET

Note: Use up to Engine SN BB28A D.

$38.99

$

Usually ships in 3-6 days

0

3

Honda 16016-148-610

SCREW SET A

Note: Use up to Engine SN BB28A C.

$22.99

$

Usually ships in 3-6 days

0

3

Honda 16016-148-611

SEE PART DETAILS - SUP; SCREW SET A
(Superseded to 16016-890-015)

Note: Use from Engine SN BB28A D to BB28A D.

$

$

Not available

4

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

Note: Use up to Engine SN BB28A D.

$13.99

$

In Stock, only 1 left!

0

5

Honda 16044-883-005

CHOKE SET (NOT AVAILABLE)

Note: Use up to Engine SN BB28A A.

$

$

Not available

6

Honda 16044-883-015

CHOKE SET

Note: Use from Engine SN BB28A B to BB28A D.

$39.99

$

Usually ships in 3-6 days

0

7

Honda 16046-883-005

ARM, CHOKE LEVER

Note: Use from Engine SN BB28A B to BB28A D.

$

$

Not available

8

Honda 16100-887-095

SEE PART DETAILS - SUP; CARBURETOR ASSY.

Note: Use from Engine SN 1131403 to 1335195.

$

$

Currently unavailable

8

Honda 16100-887-105

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB28A D)

Note: Use from Engine SN 1131403 to 1335195.

$90.99

$

In Stock, only 1 left!

0

9

Honda 16100-887-095

SEE PART DETAILS - SUP; CARBURETOR ASSY.

Note: Use up to Engine SN 1131402.

$

$

Currently unavailable

9

Honda 16100-887-105

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB28A A)

Note: Use up to Engine SN 1131402.

$90.99

$

In Stock, only 1 left!

0

9

Honda 16100-887-355

SEE PART DETAILS - SUP; CARBURETOR ASSY.

Note: Use up to Engine SN 1131402.

$

$

Currently unavailable

10

Honda 16100-887-095

SEE PART DETAILS - SUP; CARBURETOR ASSY.

Note: Use up to Engine SN 1131402.

$

$

Currently unavailable

10

Honda 16100-887-105

SEE PART DETAILS - PRI; CARBURETOR ASSY.

Note: Use up to Engine SN 1131402.

$90.99

$

In Stock, only 1 left!

0

10

Honda 16100-887-355

SEE PART DETAILS - SUP; CARBURETOR ASSY.

Note: Use up to Engine SN 1131402.

$

$

Currently unavailable

11

Honda 16100-887-095

SEE PART DETAILS - SUP; CARBURETOR ASSY.

Note: Use up to Engine SN 1156981.

$

$

Currently unavailable

11

Honda 16100-887-095

SEE PART DETAILS - SUP; CARBURETOR ASSY.

Note: Use up to Engine SN 1229068.

$

$

Currently unavailable

11

Honda 16100-887-105

SEE PART DETAILS - PRI; CARBURETOR ASSY.

Note: Use up to Engine SN 1156981.

$90.99

$

In Stock, only 1 left!

0

11

Honda 16100-887-105

SEE PART DETAILS - PRI; CARBURETOR ASSY.

Note: Use up to Engine SN 1229068.

$90.99

$

In Stock, only 1 left!

0

11

Honda 16100-887-355

SEE PART DETAILS - SUP; CARBURETOR ASSY.

Note: Use up to Engine SN 1156981.

$

$

Currently unavailable

11

Honda 16100-887-355

SEE PART DETAILS - SUP; CARBURETOR ASSY.

Note: Use up to Engine SN 1229068.

$

$

Currently unavailable

12

Honda 16155-883-005

VALVE, FLOAT

Note: Use up to Engine SN BB28A D.

$26.99

$

Usually ships in 3-6 days

0

13

Honda 16166-883-005

NOZZLE, MAIN

Note: Use up to Engine SN BB28A D.

$12.99

$

Usually ships in 3-6 days

0

14

Honda 16211-887-000

INSULATOR, CARBURETOR

Note: Use up to Engine SN 1335195.

$15.99

$

Usually ships in 3-6 days

0

15

Honda 16212-887-306

GASKET, INSULATOR

Note: Use up to Engine SN 1335195.

$3.49

$

Usually ships in 3-6 days

0

16

Honda 16221-883-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-887-800)

Note: Use up to Engine SN 1335195.

$3.49

$

In Stock, Qty 20+

0

16

Honda 16221-887-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

Note: Use up to Engine SN 1335195.

$3.49

$

In Stock, Qty 20+

0

17

Honda 16269-883-800

GASKET, AIR CLEANER

Note: Use up to Engine SN 1335195.

$1.99

$

In Stock, Qty 11

0

18

Honda 16611-883-610

ROD, CHOKE CONTROL

Note: Use up to Engine SN 1335195.

$

$

Not available

19

Honda 16612-883-610

STAY, CHOKE CONTROL

Note: Use up to Engine SN 1335195.

$

$

Not available

20

Honda 16613-883-610

GROMMET, CHOKE ROD

Note: Use up to Engine SN 1335195.

$2.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0620

JET, MAIN (#62)

Note: Use up to Engine SN BB28A D.

$11.99

$

Usually ships in 3-6 days

0
