F400 K1 A2 (F400) - Honda Tiller, Made in Japan (SN: F400-2100001 - F400-9999999) F400K1 CAMSHAFT Parts Diagram

Tiller, Made in Japan

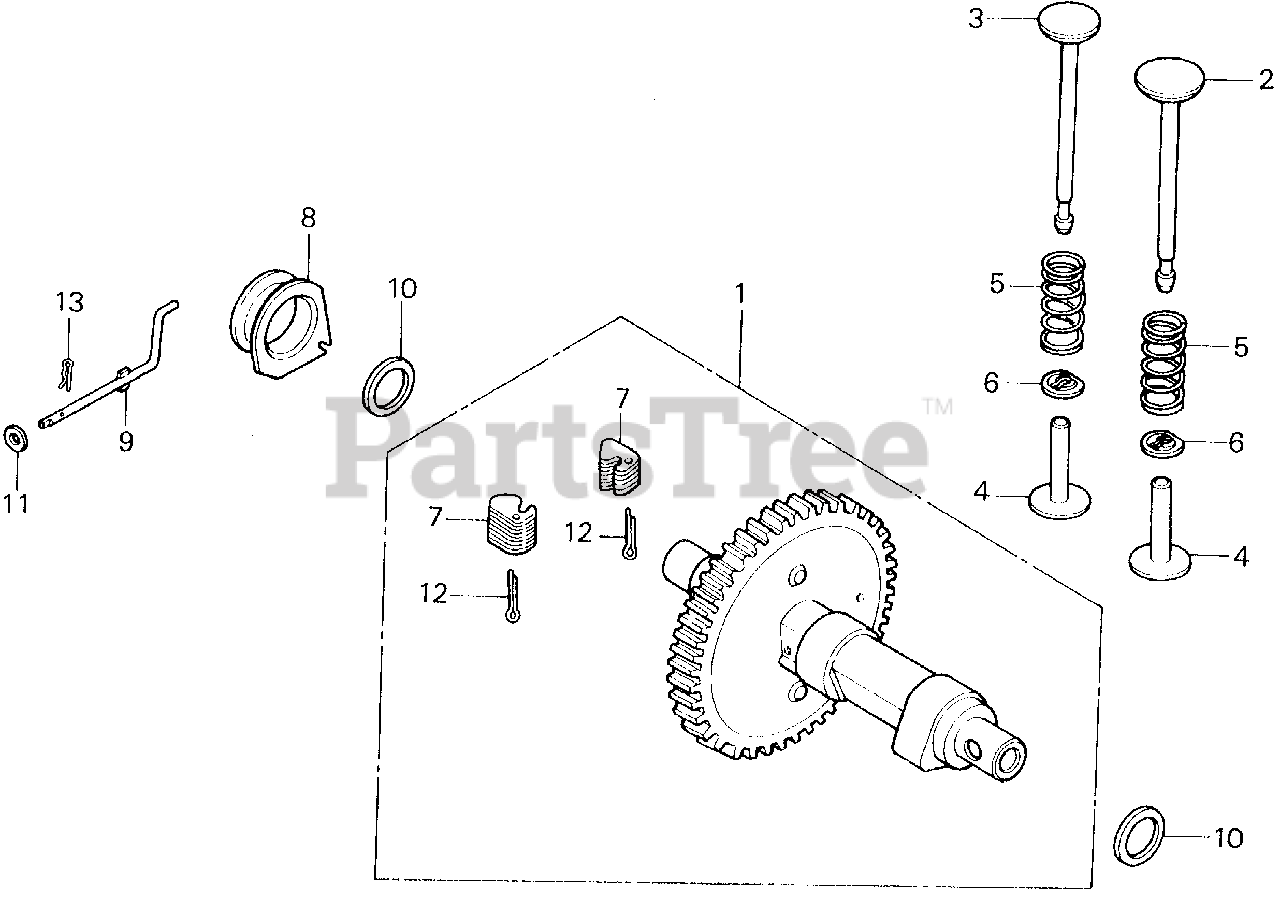

F400K1 CAMSHAFT Parts Diagram

  • Title

1

Honda 14110-887-010

CAMSHAFT ASSY.

$286.99

$

Usually ships in 3-6 days

0

2

Honda 14711-887-000

VALVE, IN.

$19.99

$

Usually ships in 3-6 days

0

3

Honda 14721-887-000

VALVE, EX.

$32.99

$

Usually ships in 3-6 days

0

4

Honda 14740-887-010

SEE PART DETAILS - PRI; LIFTER, VALVE (34.39)

$

$

Not available

4

Honda 14749-887-010

LIFTER, VALVE (34.66)

$

$

Not available

5

Honda 14751-883-000

SPRING, VALVE

$6.49

$

Usually ships in 3-6 days

0

6

Honda 14771-883-305

RETAINER, VALVE SPRING

$14.99

$

Usually ships in 3-6 days

0

7

Honda 16511-883-300

WEIGHT, GOVERNOR

$2.49

$

Usually ships in 3-6 days

0

8

Honda 16531-883-010

SLIDER, GOVERNOR

$

$

Not available

9

Honda 16541-883-000

SHAFT, GOVERNOR ARM

$

$

Not available

10

Honda 90452-883-000

WASHER, THRUST (18MM)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 94101-05000

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0

12

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 20+

0

13

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 9

0
