F400 K1 A2 (F400) - Honda Tiller, Made in Japan (SN: F400-2100001 - F400-9999999) ENGINE BED Parts Diagram

Tiller, Made in Japan

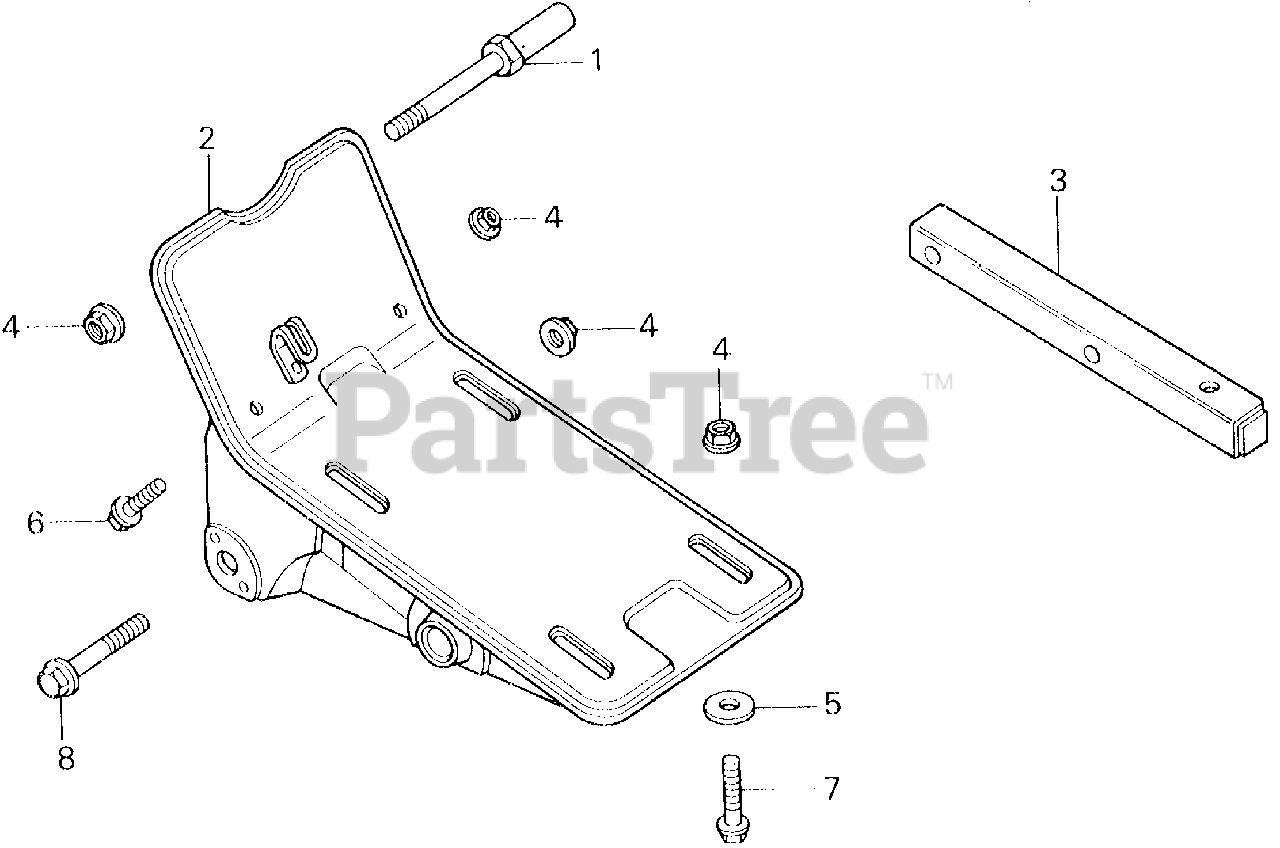

ENGINE BED Parts Diagram

  • Title
1

Honda 22551-723-000

BOLT, TENSIONER ARM

$27.99

$

Usually ships in 3-6 days

0

2

Honda 51110-723-020

BED, ENGINE

Note: Use up to Frame SN 2143555.

$

$

Currently unavailable

2

Honda 51110-723-030

BED, ENGINE (NOT AVAILABLE)

Note: Use from Frame SN 2143556.

$

$

Currently unavailable

4

Honda 90236-300-000

SEE PART DETAILS - SUP; NUT, FLANGE (8MM)

$

$

Currently unavailable

4

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

5

Honda 90402-344-820

WASHER (8X22)

$2.49

$

Usually ships in 3-6 days

0

6

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

6

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

7

Honda 95700-08040-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X40)
(Superseded to 95701-08040-00)

$1.99

$

In Stock, Qty 20+

0

7

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 20+

0

8

Honda 95801-08045-00

BOLT, FLANGE (8X45)

$2.49

$

Usually ships in 3-6 days

0
