F400 A2 (F400) - Honda Tiller, Made in Japan (SN: F400-2000001 - F400-2031403) BELT COVER + PULLEY Parts Diagram

Tiller, Made in Japan

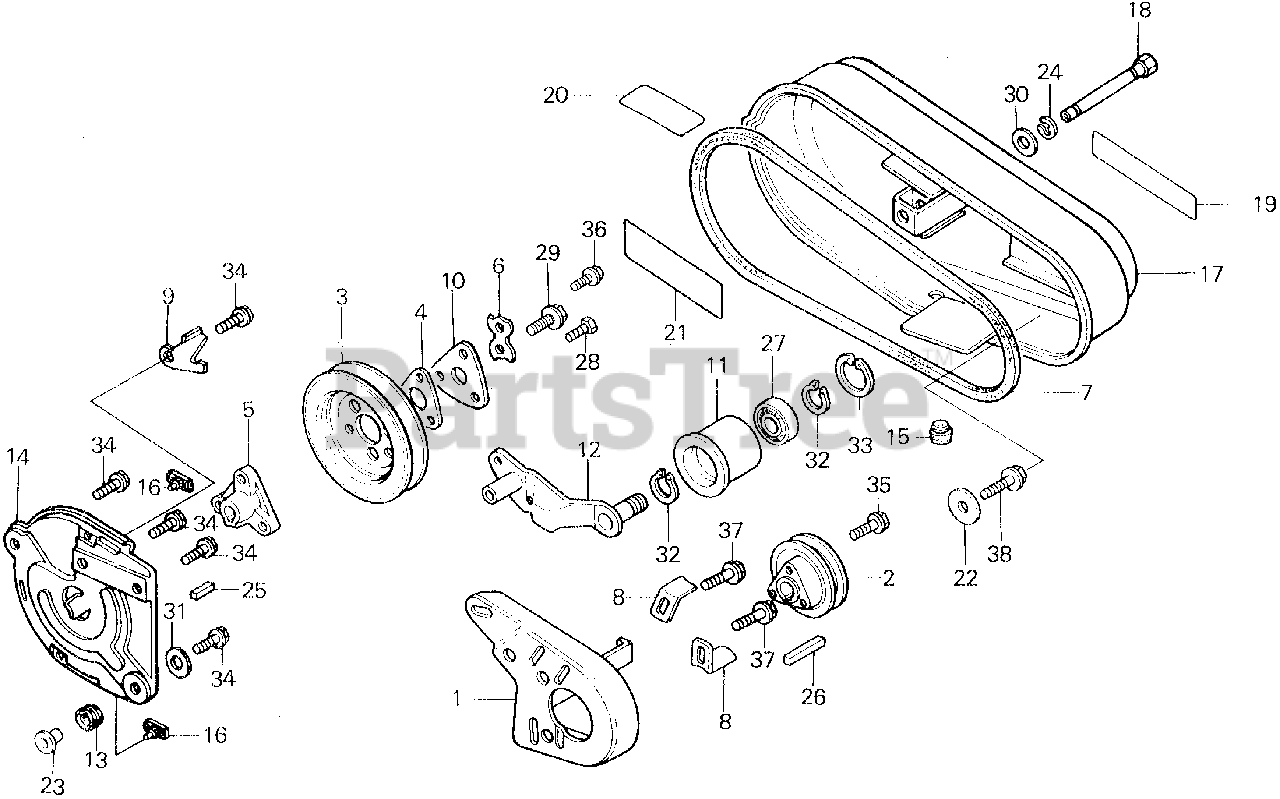

BELT COVER + PULLEY Parts Diagram

  • Title

1

Honda 11802-723-670

PLATE, ENGINE ADJUSTING

$

$

Not available

2

Honda 22411-723-000

SEE PART DETAILS - SUP; PULLEY, DRIVEN (80MM)

$

$

Currently unavailable

2

Honda 22411-723-010

SEE PART DETAILS - PRI; PULLEY, DRIVEN (80MM)

$

$

Not available

3

Honda 22414-723-000

PULLEY (125MM)

$59.99

$

Usually ships in 3-6 days

0

4

Honda 22416-723-670

SPACER, PULLEY

$

$

Currently unavailable

5

Honda 22426-723-000

BOSS, DRIVEN PULLEY (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 22426-723-303

BOSS, DRIVEN PULLEY

$

$

Currently unavailable

6

Honda 22428-723-303

WASHER, LOCK

$

$

Not available

7

Honda 22431-723-671

SEE PART DETAILS - SUP; V-BELT (SB-35)
(Superseded to 22431-723-672)

$40.99

$

Usually ships in 3-6 days

0

7

Honda 22431-723-672

SEE PART DETAILS - PRI; V-BELT (35)

$40.99

$

Usually ships in 3-6 days

0

8

Honda 22443-723-670

STOPPER E, BELT

$11.99

$

Usually ships in 3-6 days

0

9

Honda 22444-723-670

STOPPER F, BELT

$

$

Not available

10

Honda 22461-723-000

PLATE, PULLEY

$

$

Not available

11

Honda 22511-723-000

ROLLER, TENSIONER

$

$

Not available

12

Honda 22520-723-750

ARM, TENSIONER

$

$

Not available

13

Honda 32983-028-000

GROMMET, WIRE HARNESS

$1.99

$

Usually ships in 3-6 days

0

14

Honda 50650-723-000

STAY, BELT COVER

$

$

Not available

17

Honda 63610-723-000XC

COVER, BELT *NH31* (MCKINLEY WHITE)

$

$

Not available

18

Honda 63615-719-610

LATCH, BELT COVER (NOT AVAILABLE)

$28.99

$

Usually ships in 3-6 days

0

18

Honda 63615-723-670

LATCH, BELT COVER

$26.99

$

Usually ships in 3-6 days

0

19

Honda 87501-723-000

MARK, BELT COVER

$

$

Not available

20

Honda 87504-723-670

CAUTION, BELT COVER

$

$

Not available

22

Honda 90428-844-650

WASHER (8MM)

$4.99

$

Usually ships in 3-6 days

0

23

Honda 90563-045-000

WASHER, NUMBER BRACKET SETTING

$4.49

$

Usually ships in 3-6 days

0

24

Honda 90652-719-000

E-RING (9MM)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90741-715-000

KEY, FLAT (4X4X14)

$10.99

$

Usually ships in 3-6 days

0

26

Honda 90746-835-000

KEY (5X5X33)

$9.99

$

In Stock, only 1 left!

0

27

Honda 91058-719-003

BEARING, RADIAL BALL (6202G)

$33.99

$

Usually ships in 3-6 days

0

28

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

29

Honda 92101-08016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X16)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 94101-10000

SEE PART DETAILS - PRI; WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 94511-15000

CIRCLIP (OUTER) (15MM)

$0.99

$

In Stock, only 2 left!

0

33

Honda 94521-35000

CIRCLIP (INNER) (35MM) (NOT AVAILABLE)

$

$

Currently unavailable

34

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

34

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

35

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, only 2 left!

0

37

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

37

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

38

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, Qty 5

0
