F400 A1 (F400) - Honda Tiller, Made in Japan (SN: F400-2000001 - F400-2031403) WHEEL + FENDER Parts Diagram

Tiller, Made in Japan

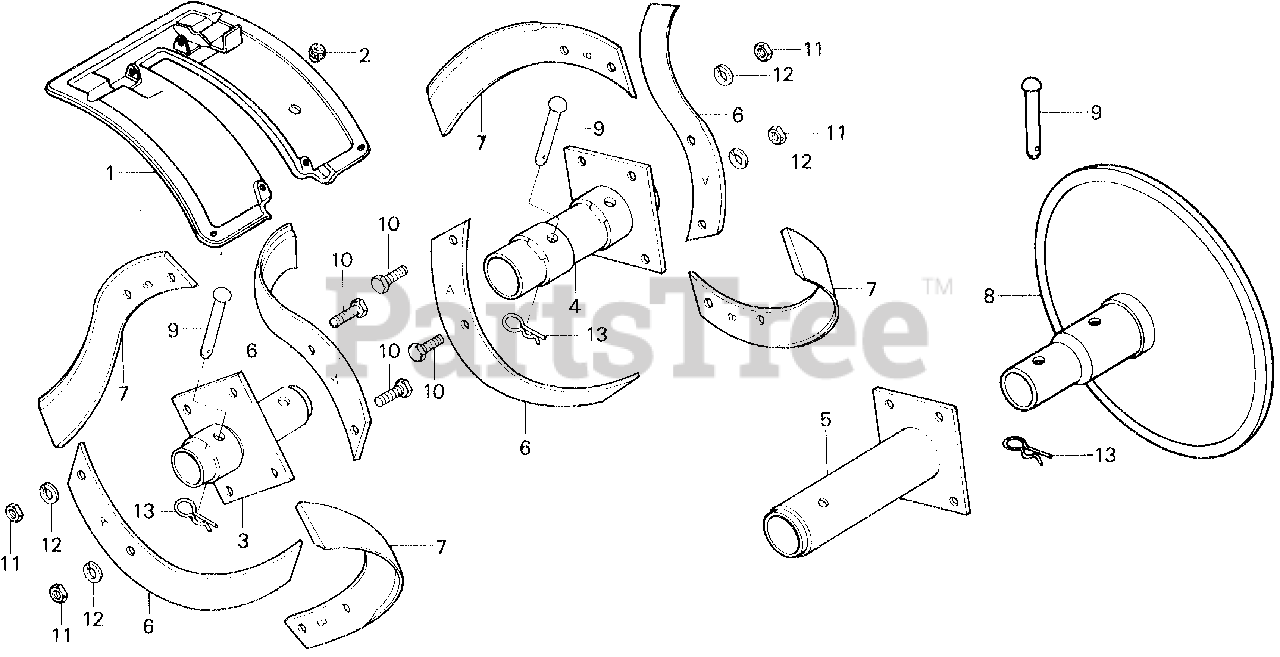

WHEEL + FENDER Parts Diagram

  • Title

1

Honda 61110-723-000XC

FENDER, MAIN *NH31* (MCKINLEY WHITE)

$

$

Not available

2

Honda 61112-715-000

STOPPER, TENSIONER ARM

$

$

Not available

3

Honda 72110-723-670

PIPE (INNER)

$

$

Currently unavailable

4

Honda 72120-723-670

PIPE (OUTER)

$

$

Currently unavailable

5

Honda 72130-733-760

SEE PART DETAILS - PRI; PIPE, EXTENSION

$101.99

$

Usually ships in 3-6 days

0

6

Honda 72461-733-750

SEE PART DETAILS - PRI; TINE A, ROTARY

$21.99

$

In Stock, Qty 13

0

7

Honda 72465-733-750

TINE B, ROTARY

$21.99

$

In Stock, Qty 12

0

9

Honda 90757-723-670

PIN (10X53.5)

$4.99

$

Usually ships in 3-6 days

0

10

Honda 92000-10025-0A

SEE PART DETAILS - SUP; BOLT, HEX. (10X25)

$

$

Currently unavailable

10

Honda 92101-10025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (10X25)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

In Stock, only 1 left!

0

12

Honda 94111-10000

WASHER, SPRING (8MM)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 94252-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, only 4 left!

0
