F400 A1 (F400) - Honda Tiller, Made in Japan (SN: F400-2000001 - F400-2031403) F400 RECOIL STARTER Parts Diagram

Tiller, Made in Japan

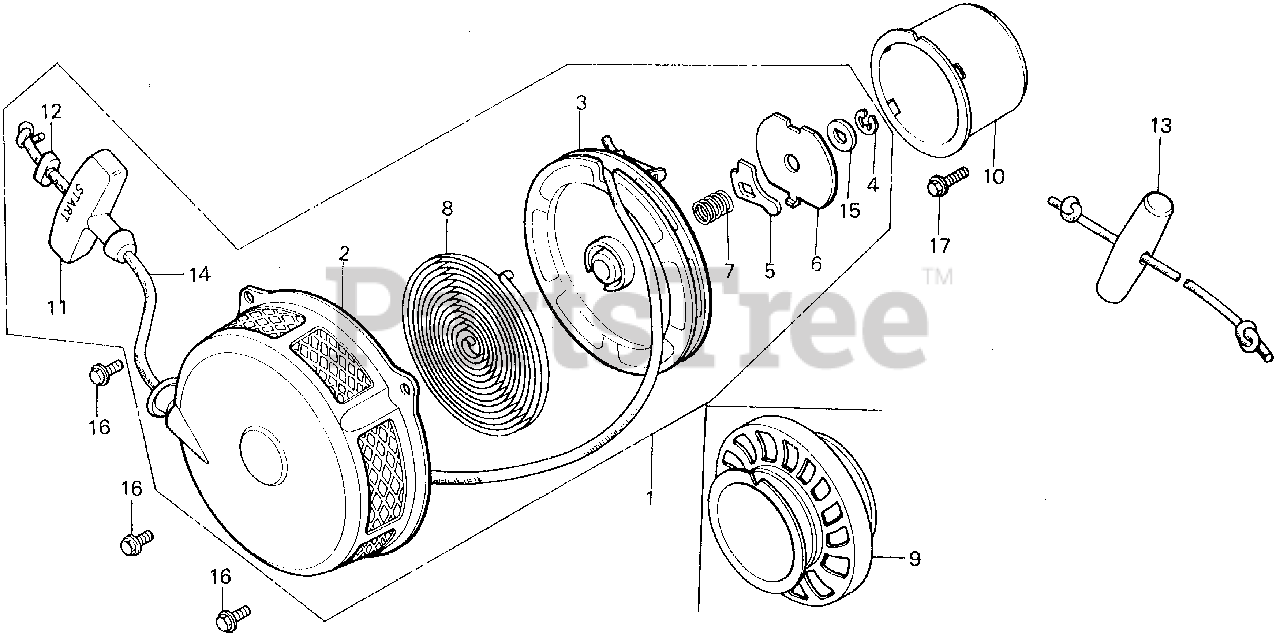

F400 RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-878-004H

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: Use up to Engine SN 1053210.

$

$

Currently unavailable

1

Honda 28400-878-014H

STARTER ASSY., RECOIL *R8* (BRIGHT RED) (NOT AVAILABLE)

Note: Use from Engine SN 1053211.

$

$

Currently unavailable

2

Honda 28410-878-004H

CASE, RECOIL STARTER *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 28420-878-810

PULLEY, RECOIL STARTER

$

$

Not available

4

Honda 28423-878-810

E-RING (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 28441-878-810

RATCHET, STARTER (NOT AVAILABLE)

$4.49

$

Usually ships in 0 days

0

6

Honda 28445-878-810

PLATE, FRICTION (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 28446-878-810

SPRING, FRICTION

$

$

Currently unavailable

8

Honda 28447-878-810

SPRING, RETURN (NOT AVAILABLE)

$

$

Not available

9

Honda 28451-878-660

PULLEY, STARTER

$

$

Currently unavailable

10

Honda 28454-878-000

PULLEY, STARTER

Note: Use up to Engine SN 1045425.

$

$

Currently unavailable

10

Honda 28454-878-010

PULLEY, STARTER (NOT AVAILABLE)

Note: Use from Engine SN 1045426.

$

$

Currently unavailable

11

Honda 28461-878-810

KNOB, STARTER

$

$

Not available

12

Honda 28465-878-810

STOPPER, ROPE (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 28470-878-000

ROPE, STARTER (#5X55")

$

$

Currently unavailable

14

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X55")

$12.99

$

In Stock, only 4 left!

0

14

Honda 28471-878-810

SEE PART DETAILS - SUP; ROPE, STARTER (#5X55")

$

$

Currently unavailable

15

Honda 90482-878-810

WASHER

Note: Use up to Engine SN 1053210.

$

$

Currently unavailable

15

Honda 90482-878-811

WASHER (NOT AVAILABLE)

Note: Use from Engine SN 1053211.

$2.99

$

Usually ships in 3-6 days

0

16

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

16

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

17

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

17

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0
