F400 A1 (F400) - Honda Tiller, Made in Japan (SN: F400-2000001 - F400-2031403) F400 FUEL TANK + PETCOCK Parts Diagram

Tiller, Made in Japan

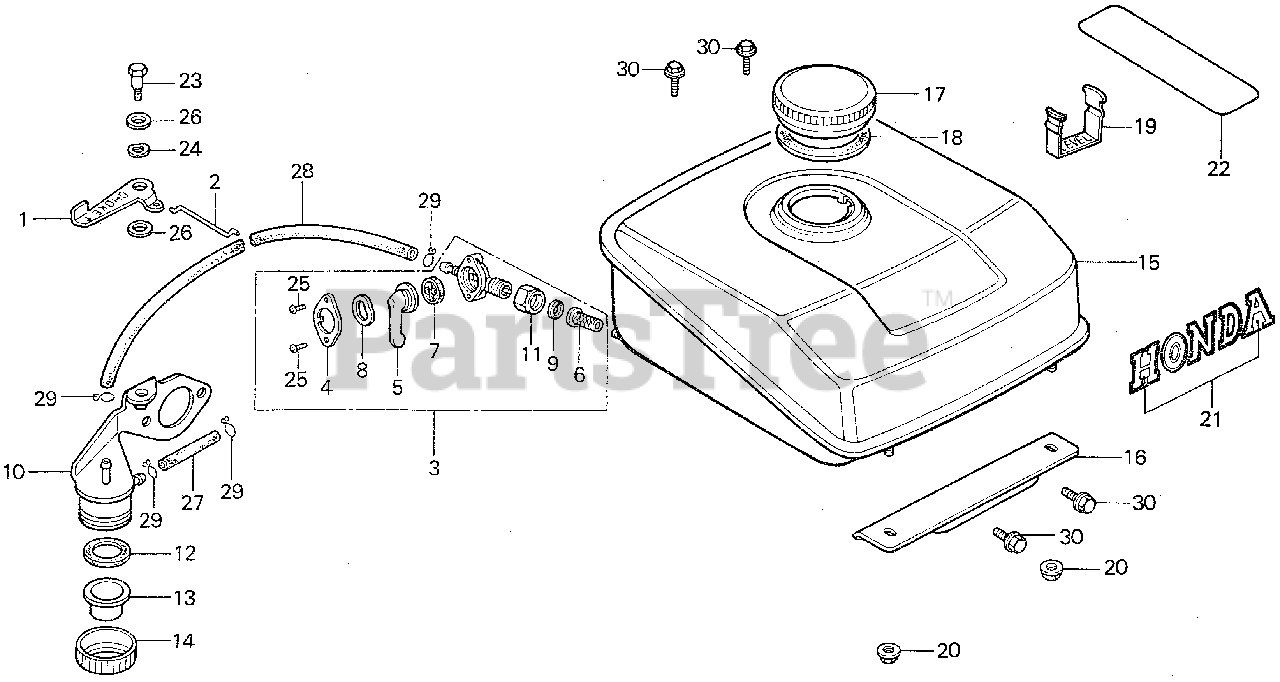

F400 FUEL TANK + PETCOCK Parts Diagram

  • Title

1

Honda 16621-723-790

LEVER, CHOKE

$

$

Currently unavailable

2

Honda 16622-723-790

ROD, CHOKE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 16950-045-005

PETCOCK ASSY.

$48.99

$

Usually ships in 3-6 days

0

4

Honda 16952-081-005

COVER, PETCOCK (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16953-081-005

LEVER, VALVE (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 16954-081-015

SCREEN, STRAINER

$

$

Not available

7

Honda 16955-268-020

GASKET, VALVE

$6.99

$

Usually ships in 3-6 days

0

8

Honda 16964-720-005

SEE PART DETAILS - SUP; SPRING, PETCOCK LEVER
(Superseded to 16956-ZE1-811)

$4.49

$

Usually ships in 3-6 days

0

9

Honda 16958-081-005

GASKET, FUEL STRAINER CUP

$

$

Not available

10

Honda 16961-723-790

STAY, FUEL STRAINER (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 16962-081-005

NUT, TURN BUCKLE (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 16963-878-000

GASKET (NOT AVAILABLE)

$

$

Not available

13

Honda 16964-878-000

CUP, STRAINER (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 16965-878-000

NUT, RING (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 17510-878-000XC

TANK, FUEL *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 17521-878-000H

STAY, FUEL TANK *R8* (BRIGHT RED)

$

$

Not available

17

Honda 17620-102-730

SEE PART DETAILS - PRI; CAP, FUEL FILLER

$

$

Not available

18

Honda 17631-096-701

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-096-702)

$3.49

$

In Stock, only 2 left!

0

19

Honda 17662-878-000

PLATE, FUEL LEVEL

$

$

Not available

20

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 87101-723-790

MARK, TOP COVER

$

$

Currently unavailable

22

Honda 87522-836-670

MARK A, CAUTION

$

$

Not available

23

Honda 90162-721-000

SEE PART DETAILS - SUP; BOLT, CHOKE LEVER

$

$

Currently unavailable

24

Honda 90401-723-000

WASHER, WAVE (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 93500-03006-0A

SCREW, PAN (3X6)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

27

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X30)

$54.99

$

In Stock, only 1 left!

0

28

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X80)

$54.99

$

In Stock, only 1 left!

0

29

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

30

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

30

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0
