F400 A1 (F400) - Honda Tiller, Made in Japan (SN: F400-2000001 - F400-2031403) F400 FLYWHEEL + POINTS Parts Diagram

Tiller, Made in Japan

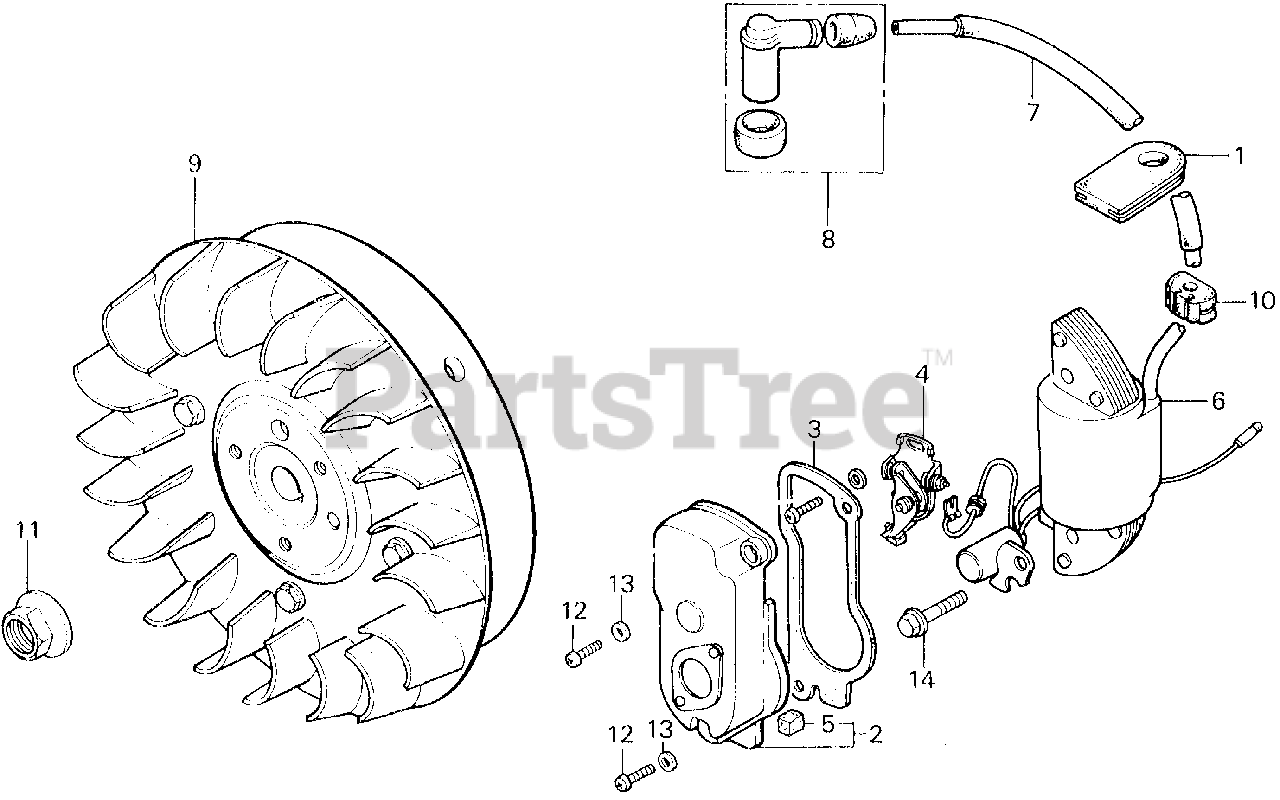

F400 FLYWHEEL + POINTS Parts Diagram

  • Title

1

Honda 19905-878-000

GROMMET, WIRE

$

$

Not available

2

Honda 30200-878-000

COVER ASSY., POINTS (NOT AVAILABLE)

Note: Use from Engine SN 1052396.

$

$

Currently unavailable

2

Honda 30210-878-000

COVER, POINTS

Note: Use up to Engine SN 1052395.

$

$

Currently unavailable

3

Honda 30215-879-000

GASKET, POINT COVER (NOT AVAILABLE)

Note: Use from Engine SN 1052396.

$

$

Currently unavailable

4

Honda 30280-878-003

POINTS ASSY.

$51.99

$

Usually ships in 3-6 days

0

5

Honda 30290-878-003

FELT, OIL

$

$

Not available

6

Honda 30560-878-003

IGNITION ASSY.

Note: Use up to Engine SN 1052395.

$

$

Currently unavailable

6

Honda 30560-878-013

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (DENSO) (NOT AVAILABLE)

Note: Use from Engine SN 1052396.

$

$

Not available

7

Honda 30565-865-650

TUBE, IGNITION RUBBER

$11.99

$

Usually ships in 3-6 days

0

8

Honda 30700-098-158

SEE PART DETAILS - SUP; CAP ASSY., NOISE SUPPRESSOR

Note: Use up to Engine SN 1072518.

$

$

Not available

8

Honda 30700-098-163

SEE PART DETAILS - SUP; CAP ASSY., NOISE SUPPRESSOR

Note: Use up to Engine SN 1072518.

$

$

Not available

8

Honda 30700-865-013

CAP ASSY., NOISE SUPPRESSOR

Note: Use from Engine SN 1072519.

$

$

Not available

9

Honda 31200-878-003

FLYWHEEL ASSY.

$

$

Not available

10

Honda 32951-878-000

GROMMET, WIRE

$

$

Not available

11

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM)

$7.99

$

Usually ships in 3-6 days

0

12

Honda 93500-04008-0H

SCREW, PAN (4X8)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94101-04000

WASHER, PLAIN (4MM)

$1.49

$

In Stock, only 1 left!

0

14

Honda 95800-06025-08

BOLT, FLANGE (6X25) (NOT AVAILABLE)

$

$

Currently unavailable
