F400 A1 (F400) - Honda Tiller, Made in Japan (SN: F400-2000001 - F400-2031403) F400 CRANKCASE COVER Parts Diagram

Tiller, Made in Japan

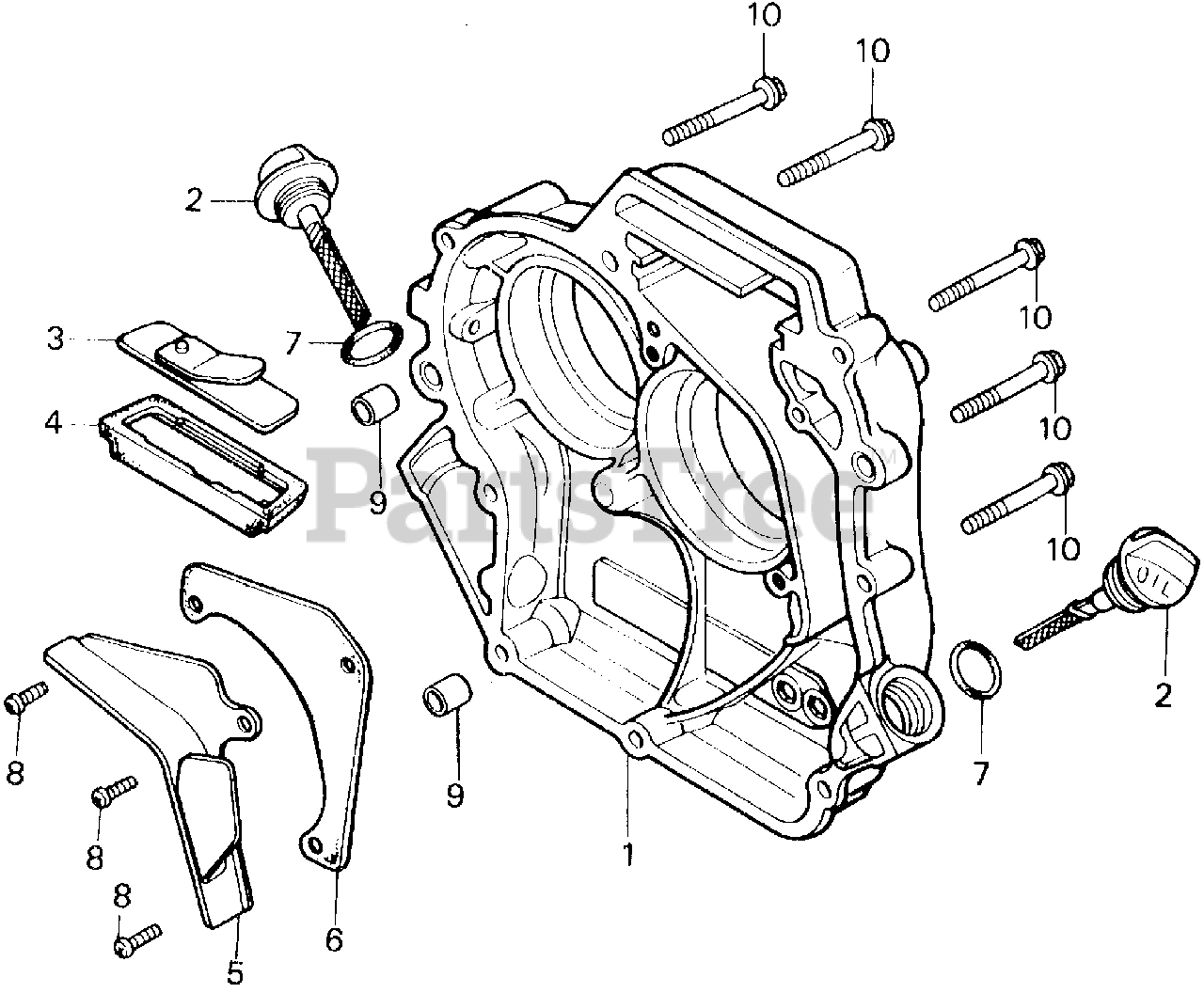

F400 CRANKCASE COVER Parts Diagram

  • Title
1

Honda 11310-878-010

COVER, CRANKCASE

$

$

Not available

2

Honda 15620-878-000

CAP, OIL (NOT AVAILABLE)

$

$

Not available

3

Honda 15710-878-000

PLATE, BREATHER

$

$

Not available

4

Honda 15721-878-000

RUBBER, BREATHER PLATE

$

$

Not available

5

Honda 15731-878-000

SEPARATOR, BREATHER

$

$

Not available

6

Honda 15735-878-000

GASKET, SEPARATOR

$

$

Not available

7

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

8

Honda 93500-05012-0H

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

9

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

10

Honda 95701-06032-08

BOLT, FLANGE (6X32)

$2.49

$

In Stock, only 2 left!

0
