F28 K1 A (715) - Honda Tiller, Made in Japan (SN: 715-279001 - 715-349801) TENSION CLUTCH Parts Diagram

Tiller, Made in Japan

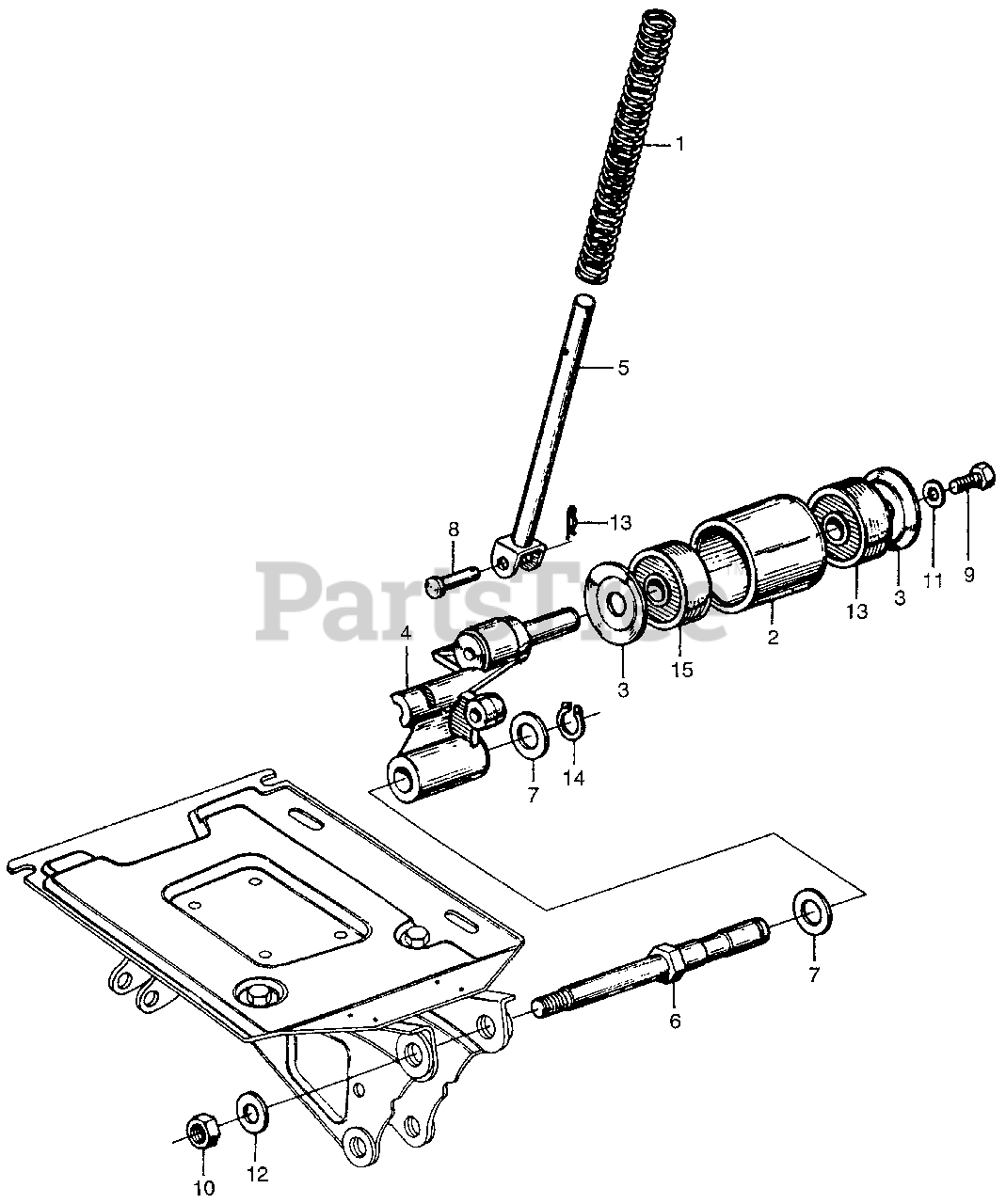

TENSION CLUTCH Parts Diagram

  • Title

1

Honda 22561-708-020

SPRING, BELT CLUTCH (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 22570-715-000

PULLEY, TENSION

$

$

Not available

3

Honda 22571-715-000

COVER A, DUST

$

$

Not available

4

Honda 54540-715-000

ARM, TENSION

$72.99

$

Usually ships in 3-6 days

0

5

Honda 54545-708-000

BAR, PUSH

$

$

Not available

6

Honda 54550-708-010

PIN, TENSION ARM

$

$

Not available

7

Honda 90505-708-000

WASHER, TENSIONER ARM (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 90761-708-000

PIN, PUSH BAR (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

In Stock, only 1 left!

0

11

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

12

Honda 94101-10000

SEE PART DETAILS - PRI; WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 20+

0

14

Honda 94510-12000

CIRCLIP (OUTER) (12MM)

$2.49

$

In Stock, only 3 left!

0

15

Honda 96130-62000-10

BEARING, RADIAL BALL (6200ZZ) (NOT AVAILABLE)

$

$

Not available
