F28 K1 A (715) - Honda Tiller, Made in Japan (SN: 715-279001 - 715-349801) RIGHT CRANKCASE COVER + CLUTCH Parts Diagram

Tiller, Made in Japan

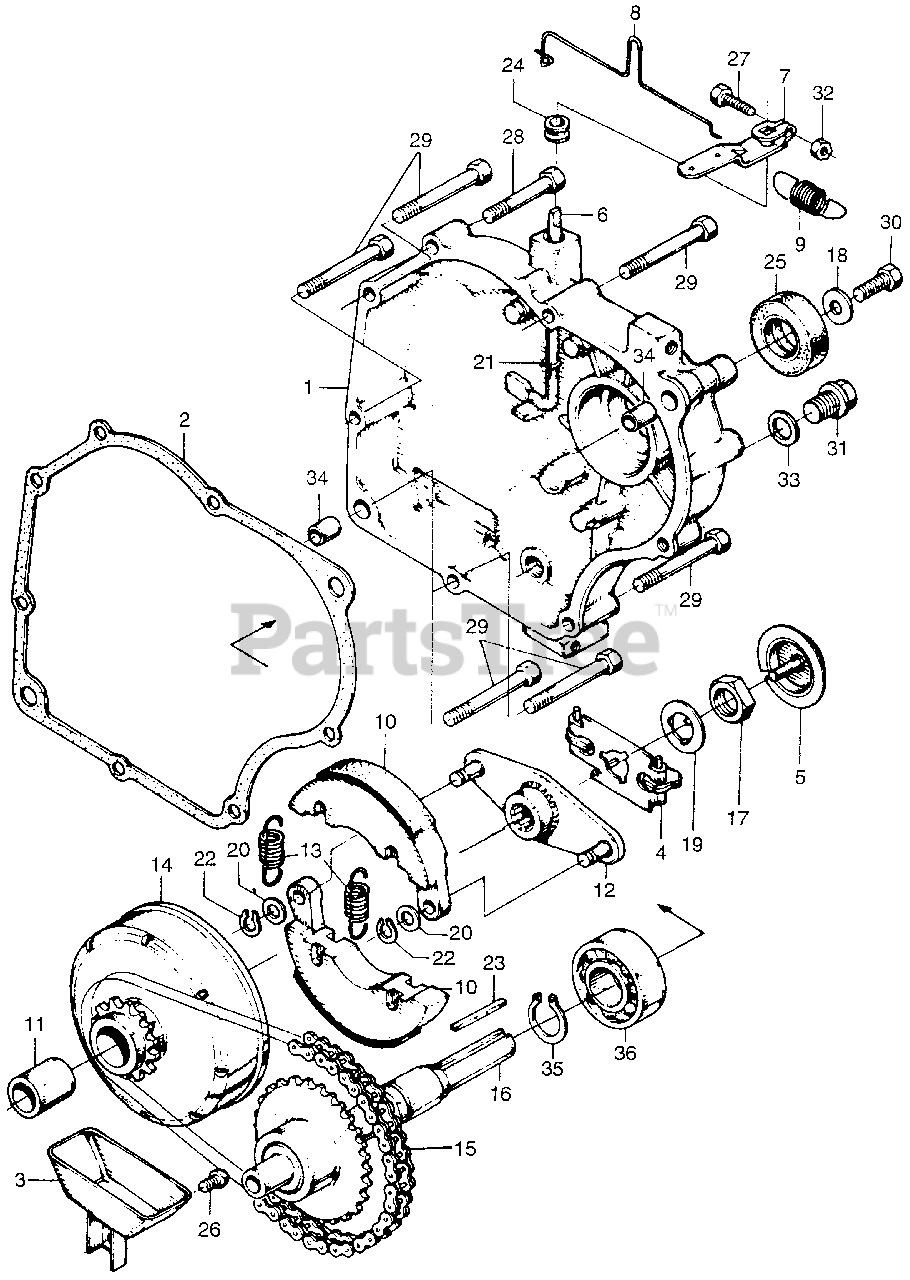

RIGHT CRANKCASE COVER + CLUTCH Parts Diagram

  • Title

1

Honda 11301-844-000

COVER, R. CRANKCASE

$

$

Currently unavailable

1

Honda 11301-844-650

COVER, R. CRANKCASE (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 11391-844-000

GASKET, CASE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 15430-844-630

SEPARATOR, CLUTCH

$

$

Not available

4

Honda 16516-816-020

HOLDER, GOVERNOR WEIGHT (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16520-816-315

SLIDER, GOVERNOR

$27.99

$

Usually ships in 0 days

0

6

Honda 16530-844-651

SHAFT, ARM (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 16540-844-000

ARM, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16545-844-000

ROD, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 16551-844-000

SPRING, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 22053-844-631

WEIGHT, CLUTCH (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 22131-044-020

GUIDE, CLUTCH CENTER

$

$

Currently unavailable

12

Honda 22350-844-630

PLATE, DRIVE (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 22401-844-630

SPRING, CLUTCH (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 23100-844-690

SPROCKET, DRIVE

$

$

Not available

15

Honda 23151-844-690

CHAIN A, DRIVE

$31.99

$

Usually ships in 3-6 days

0

16

Honda 23710-844-690

SHAFT D, P.T.O. (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 90231-KG4-000

NUT, LOCK (14MM)

$

$

Currently unavailable

18

Honda 90428-844-650

WASHER (8MM)

$4.99

$

Usually ships in 3-6 days

0

19

Honda 90434-816-000

WASHER, LOCK (14MM)

$

$

Not available

20

Honda 90443-844-000

WASHER (8MM) (NOT AVAILABLE)

$0.99

$

Usually ships in 3-6 days

0

21

Honda 90601-816-000

CIRCLIP (5MM) (NOT AVAILABLE)

$

$

Not available

22

Honda 90604-HA0-000

CIRCLIP (OUTER) (8MM)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 90746-835-000

KEY (5X5X33)

$9.49

$

In Stock, only 1 left!

0

24

Honda 91231-816-000

OIL SEAL

$

$

Not available

25

Honda 91201-504-003

OIL SEAL (25X40X7)

$

$

Not available

26

Honda 92101-05008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X8)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 92000-05014-0A

SEE PART DETAILS - SUP; BOLT, HEX. (5X14)

$

$

Currently unavailable

27

Honda 92101-05014-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X14)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 92101-06032-0A

BOLT, HEX. (6X32)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 92101-06045-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X45)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 92101-08020-0A

BOLT, HEX. (8X20)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

32

Honda 94002-05000-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 12

0

34

Honda 94301-10160

PIN A, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

35

Honda 94510-25000

CIRCLIP (OUTER) (25MM)

$1.99

$

In Stock, Qty 12

0

36

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$20.99

$

In Stock, only 2 left!

0
