F28 K1 A (715) - Honda Tiller, Made in Japan (SN: 715-279001 - 715-349801) LEFT SIDE COVER Parts Diagram

Tiller, Made in Japan

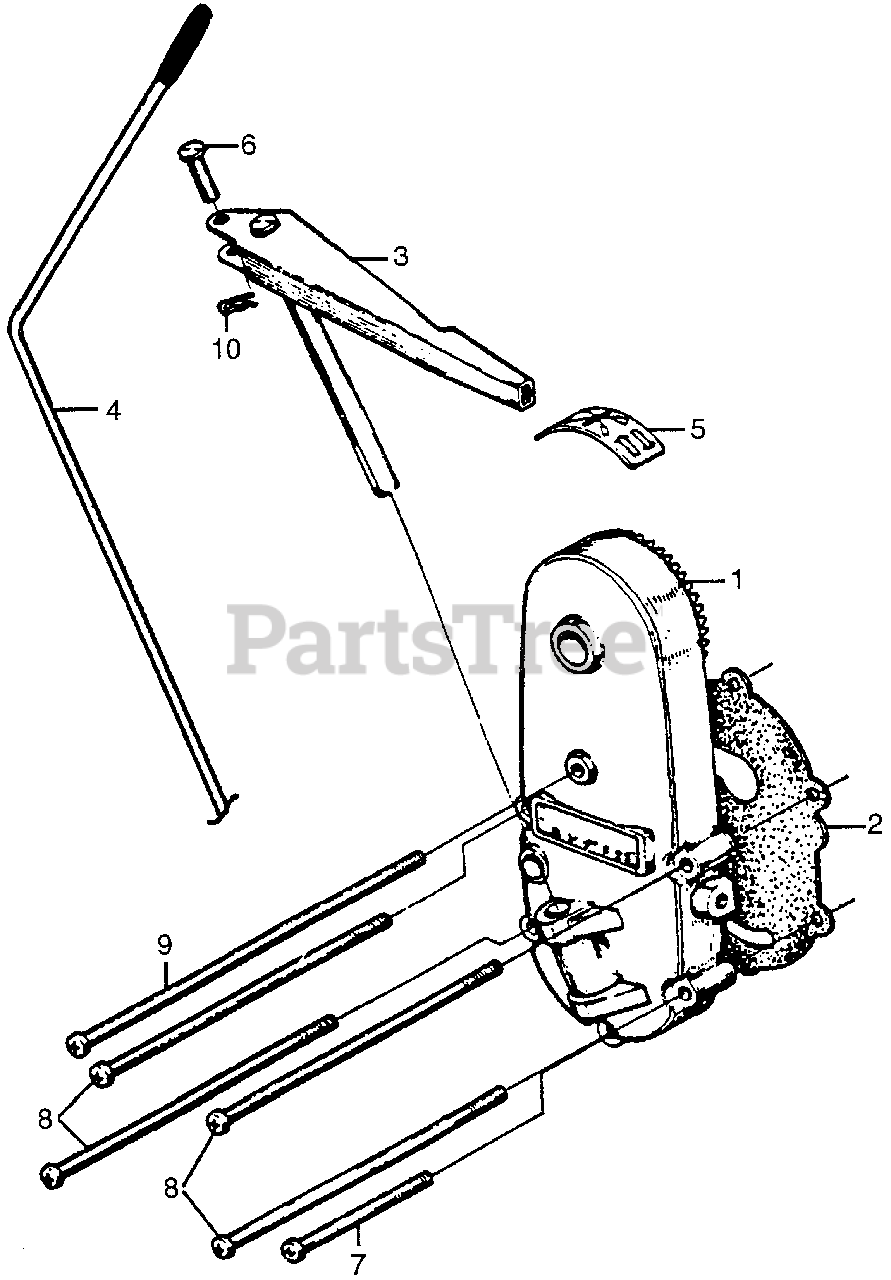

LEFT SIDE COVER Parts Diagram

  • Title
1

Honda 21410-715-020

COVER, L. SIDE (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 21415-708-306

GASKET, L. SIDE

$

$

Currently unavailable

4

Honda 24291-715-620

LEVER, CHANGE

$

$

Not available

5

Honda 87534-715-620

MARK, CHANGE LEVER (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 90756-715-010

PIN (4X19)

$6.49

$

Usually ships in 3-6 days

0

7

Honda 93500-06040-0A

SCREW, PAN (6X40)

$1.99

$

Usually ships in 3-6 days

0

8

Honda 93500-06090

SCREW, PAN (6X90) (SOURCE: VINTAGE PARTS INC.)

$

$

Not available

9

Honda 93500-06112

SCREW, PAN (6X112) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 94251-04000

PIN, LOCK (4MM)

$0.99

$

Usually ships in 3-6 days

0
