F28 K1 A (715) - Honda Tiller, Made in Japan (SN: 715-279001 - 715-349801) HANDLE + HANDLE COLUMN Parts Diagram

Tiller, Made in Japan

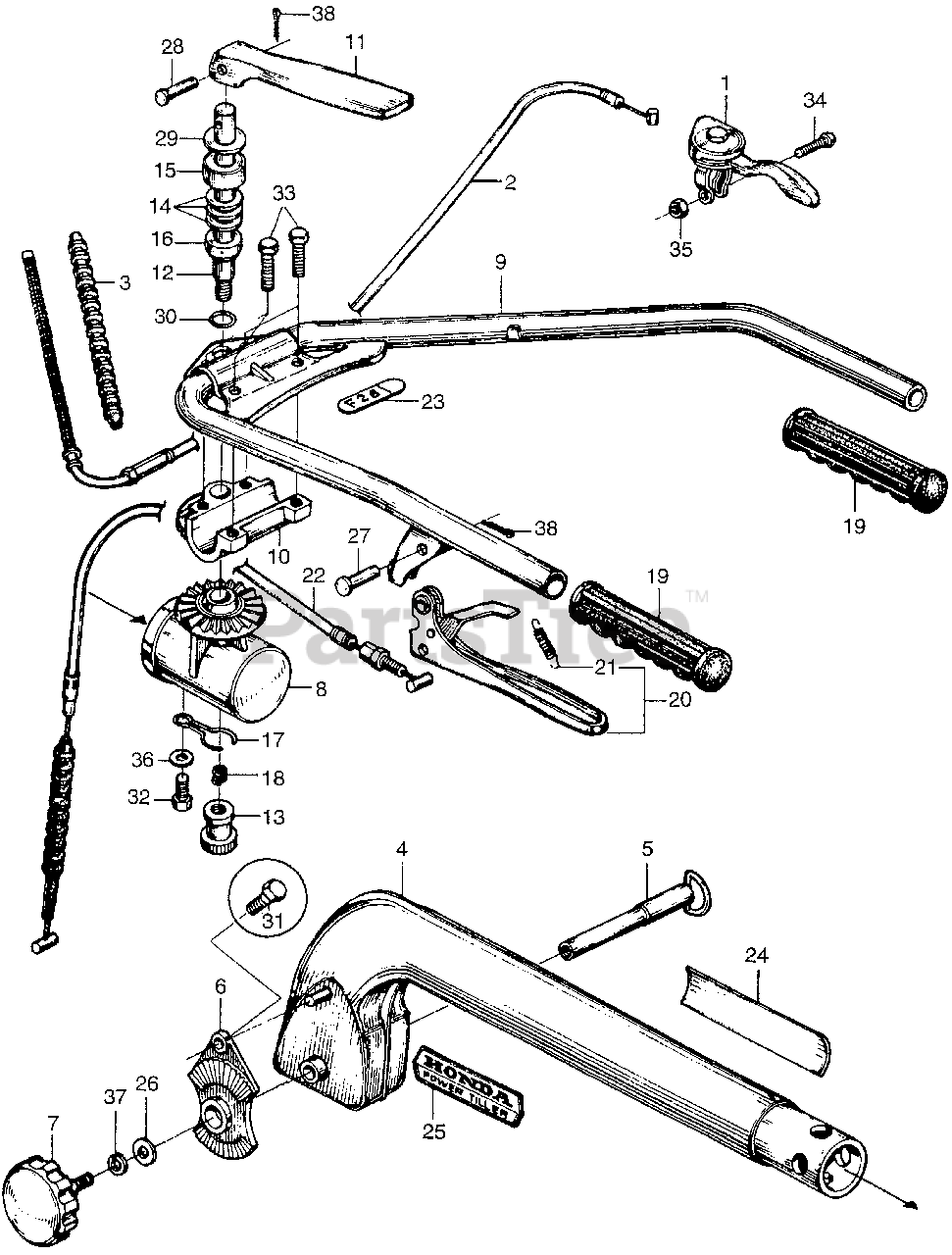

HANDLE + HANDLE COLUMN Parts Diagram

  • Title

1

Honda 17850-708-010

SEE PART DETAILS - SUP; LEVER, THROTTLE

$22.99

$

Usually ships in 3-6 days

0

1

Honda 17850-723-003

SEE PART DETAILS - PRI; LEVER ASSY., THROTTLE

$22.99

$

In Stock, only 1 left!

0

2

Honda 17910-715-000

CABLE, THROTTLE (NOT AVAILABLE)

Note: Use up to Frame SN 0205869.

$

$

Currently unavailable

2

Honda 17910-715-010

CABLE, THROTTLE (NOT AVAILABLE)

Note: Use from Frame SN 0205870.

$

$

Not available

3

Honda 17912-715-000

BOLT, WIRE

$

$

Currently unavailable

4

Honda 50110-715-000H

COLUMN, HANDLE *R8* (BRIGHT RED)

$

$

Not available

5

Honda 50120-715-020

SHAFT, HINGE

$

$

Not available

6

Honda 50151-715-010

SWINGARM (NOT AVAILABLE)

$39.99

$

Usually ships in 3-6 days

0

7

Honda 50161-708-010

ADJUSTER A, HANDLE (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 50171-715-000

BASE, SWING (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 53100-715-010

HANDLEBAR (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 53131-715-010

FRAME, SWING HANDLE

$

$

Not available

11

Honda 53132-715-000

LEVER, HANDLE ADJUSTING

$34.99

$

Usually ships in 3-6 days

0

12

Honda 53133-715-000

SHAFT, HANDLE ADJUSTING

$21.99

$

Usually ships in 3-6 days

0

13

Honda 53134-715-000

NUT, HANDLE ADJUSTING

$14.99

$

Usually ships in 3-6 days

0

14

Honda 53135-715-000

SPRING, HANDLE ADJUSTING

$

$

Not available

15

Honda 53136-715-000

SHEET, HANDLE ADJUSTING SPRING

$9.49

$

Usually ships in 3-6 days

0

16

Honda 53137-715-010

COLLAR, ADJUSTING

$

$

Not available

17

Honda 53138-715-000

HOLDER, NUT

$

$

Not available

18

Honda 53139-715-000

SPRING, LOCK

$2.49

$

Usually ships in 3-6 days

0

19

Honda 53321-708-000

GRIP, HANDLE

$17.99

$

In Stock, only 2 left!

0

20

Honda 54410-708-020

LEVER, CLUTCH (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 54415-708-300

SPRING, LEVER (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 06545-715-505

SEE PART DETAILS - PRI; CABLE, CLUTCH

$

$

Currently unavailable

22

Honda 54510-715-000

SEE PART DETAILS - SUP; CABLE, CLUTCH

$

$

Currently unavailable

23

Honda 87101-715-000

MARK C (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 87521-708-710

PLATE, CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 87152-709-600

EMBLEM, HANDLE COLUMN

Note: Use up to Frame SN 0262001.

$

$

Not available

25

Honda 87152-709-600

EMBLEM, HANDLE COLUMN

Note: Use from Frame SN 0262002.

$

$

Not available

26

Honda 90442-283-000

WASHER B, SEALING (10MM)

$3.49

$

Usually ships in 3-6 days

0

27

Honda 90751-708-000

PIN (8X18)

$6.99

$

Usually ships in 3-6 days

0

28

Honda 90753-708-010

PIN, ARM (NOT AVAILABLE)

$

$

Currently unavailable

29

Honda 90754-715-000

WASHER, THRUST (14)

$

$

Not available

31

Honda 92101-06010-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X10)

$1.99

$

Usually ships in 3-6 days

0

32

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

34

Honda 93500-05020-0A

SCREW, PAN (5X20)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 94001-05000-0S

NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

36

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 9

0

37

Honda 94111-10000

WASHER, SPRING (8MM)

$1.99

$

Usually ships in 3-6 days

0

38

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!
