F28 K1 A (715) - Honda Tiller, Made in Japan (SN: 715-279001 - 715-349801) ENGINE FRAME + FRONT WHEEL Parts Diagram

Tiller, Made in Japan

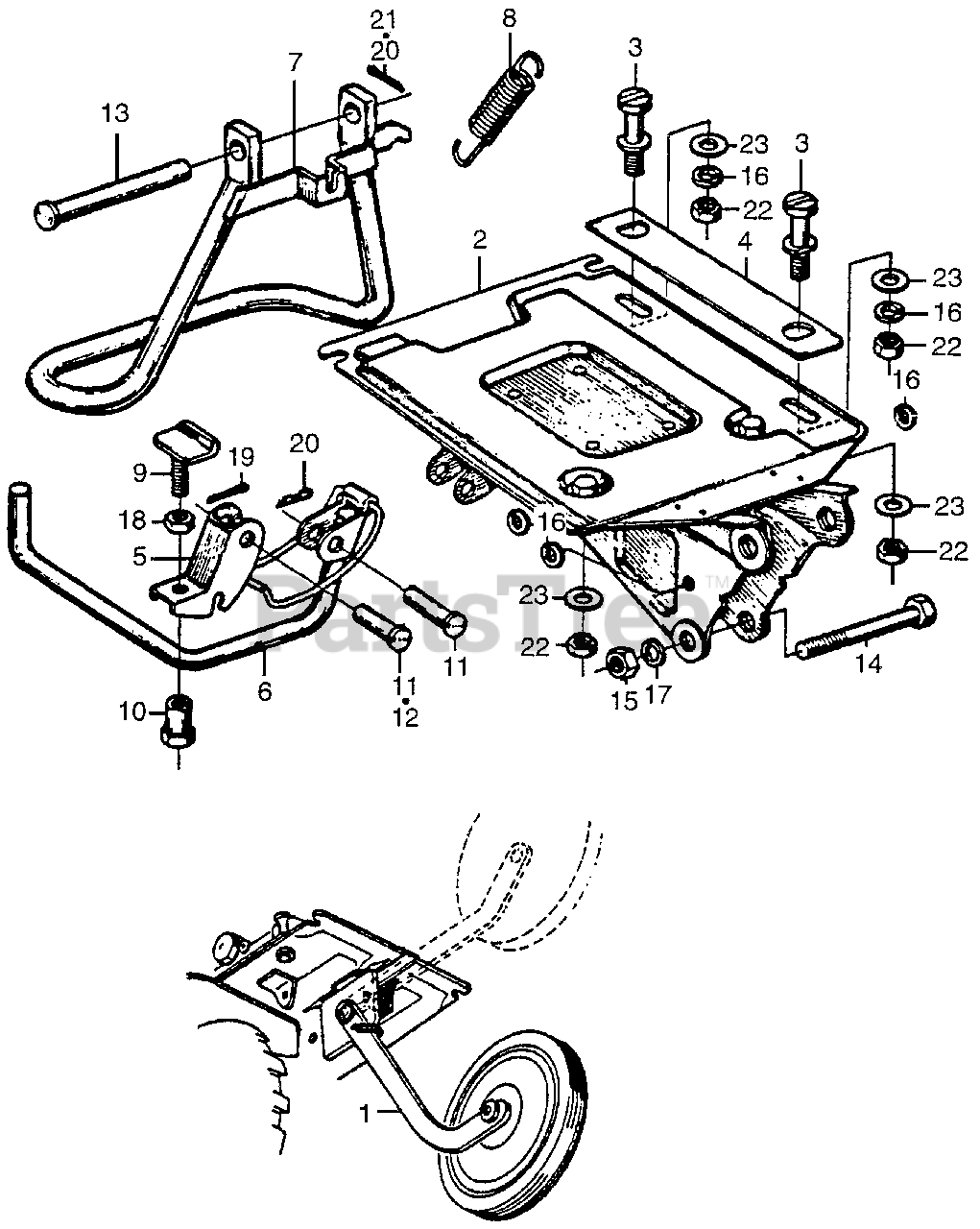

ENGINE FRAME + FRONT WHEEL Parts Diagram

  • Title
1

Honda 06420-715-000

WHEEL ASSY., FR. (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 51110-715-010

FRAME, ENGINE

$

$

Not available

3

Honda 51121-715-000

PIN, STOPPER (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 51122-715-000

SPACER, ENGINE BED

$

$

Not available

5

Honda 51140-708-010

ARM, ENGINE CLAMP

$

$

Not available

6

Honda 51150-708-020

LEVER, SETTING

$

$

Currently unavailable

8

Honda 51521-715-000

SPRING, LOCK

$6.49

$

In Stock, only 1 left!

0

9

Honda 90102-715-000

BOLT, ADJUST (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 90311-715-000

NUT, ADJUST (8MM) (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 90753-708-010

PIN, ARM (NOT AVAILABLE)

Note: Use up to Frame SN 0349034.

$

$

Currently unavailable

12

Honda 90754-708-000

PIN, STAND

$

$

Not available

13

Honda 90757-708-000

PIN, SETTING LEVER

Note: Use up to Frame SN 0349034.

$

$

Not available

13

Honda 90757-708-000

PIN, SETTING LEVER

Note: Use from Frame SN 0349035.

$

$

Not available

14

Honda 92101-10050-0A

BOLT, HEX. (10X50)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

In Stock, only 1 left!

0

17

Honda 94111-10000

WASHER, SPRING (8MM)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94031-08000

NUT, HEX. (8MM)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94201-20150

PIN, COTTER (2.0X15)

Note: Use up to Frame SN 0349034.

$1.49

$

In Stock, only 2 left!

0

20

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 20+

0

21

Honda 94251-08000

PIN, LOCK (8MM)

Note: Use up to Frame SN 0349034.

$1.99

$

In Stock, Qty 13

0

21

Honda 94251-08000

PIN, LOCK (8MM)

Note: Use from Frame SN 0349035.

$1.99

$

In Stock, Qty 13

0

22

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

23

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0
