F28 K1 A (715) - Honda Tiller, Made in Japan (SN: 715-279001 - 715-349801) CRANKSHAFT + PISTON Parts Diagram

Tiller, Made in Japan

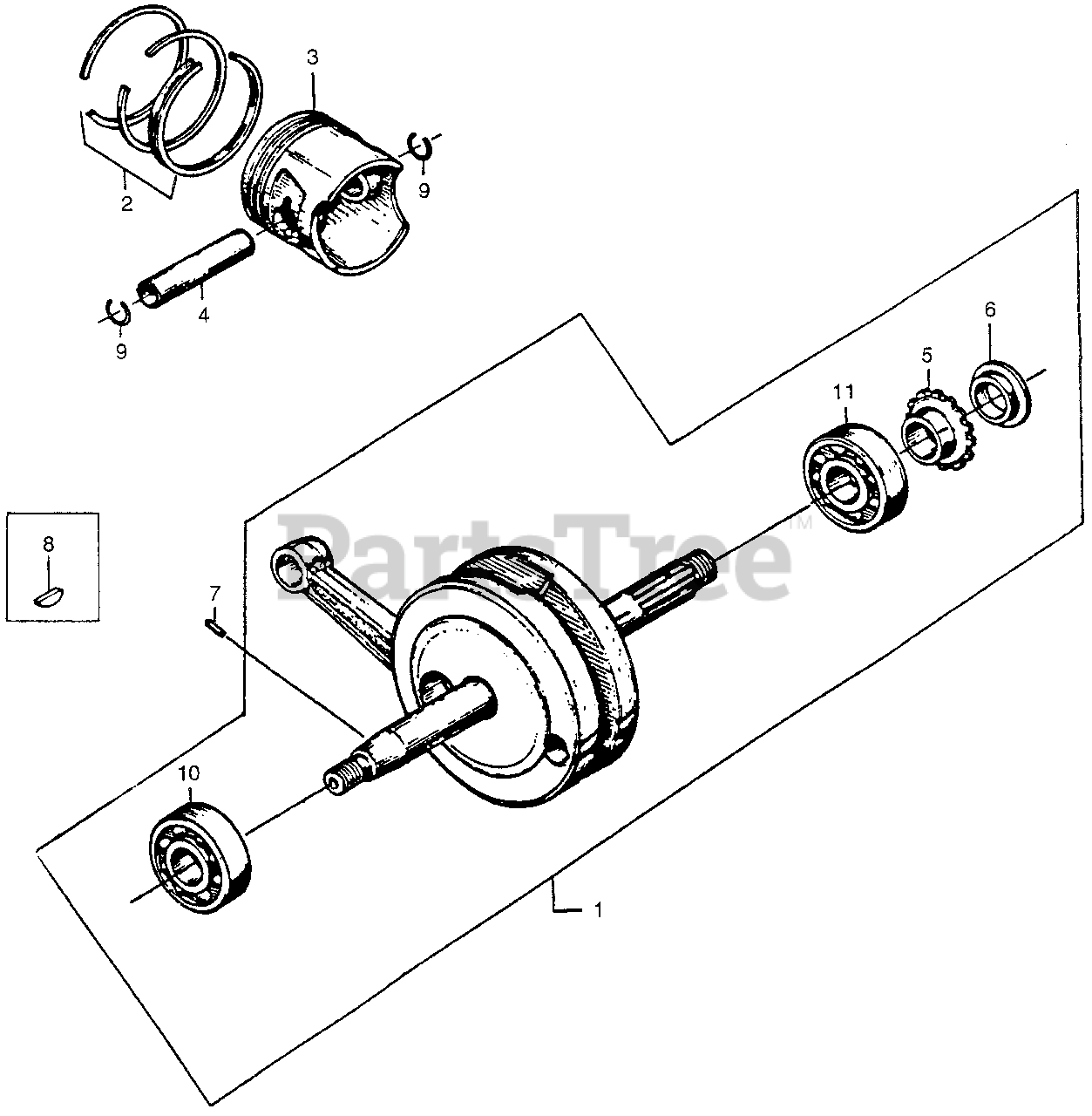

CRANKSHAFT + PISTON Parts Diagram

  • Title

1

Honda 13000-844-020

CRANKSHAFT ASSY.

Note: Use from Engine SN 1086828.

$

$

Not available

2

Honda 13010-201-000

SEE PART DETAILS - SUP; RING SET, PISTON (STD)

$106.99

$

Usually ships in 3-6 days

0

2

Honda 13011-030-000

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 13020-201-000

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25)
(Superseded to 13021-030-000)

$

$

Not available

2

Honda 13021-030-000

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$

$

Not available

2

Honda 13030-201-000

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50)
(Superseded to 13031-030-000)

$79.99

$

Usually ships in 3-6 days

0

2

Honda 13031-030-000

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$79.99

$

Usually ships in 3-6 days

0

2

Honda 13040-201-000

SEE PART DETAILS - SUP; RING SET, PISTON (0.75)

$

$

Not available

3

Honda 13101-844-000

PISTON

$50.99

$

Usually ships in 3-6 days

0

3

Honda 13102-844-000

PISTON (NOT AVAILABLE)

$

$

Not available

3

Honda 13103-844-000

PISTON (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 13104-844-000

PISTON

$

$

Not available

4

Honda 13111-816-000

PIN, PISTON (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 14311-844-010

SPROCKET, TIMING (NOT AVAILABLE)

$36.99

$

Usually ships in 3-6 days

0

6

Honda 14315-844-000

COLLAR, SPROCKET (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 90741-035-000

KEY, WOODRUFF (3MM)

Note: Use from Engine SN 1086828.

$5.99

$

Usually ships in 3-6 days

0

9

Honda 94601-13000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (13MM)

$0.99

$

In Stock, only 2 left!

0

10

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0

11

Honda 96100-63030

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6303)
(Superseded to 96100-63030-00)

$18.99

$

Usually ships in 3-6 days

0

11

Honda 96100-63030-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6303)

$18.99

$

Usually ships in 3-6 days

0
