F28 A (715) - Honda Tiller, Made in Japan (SN: 715-150005 - 715-275829) WHEEL + TINES + FENDER Parts Diagram

Tiller, Made in Japan

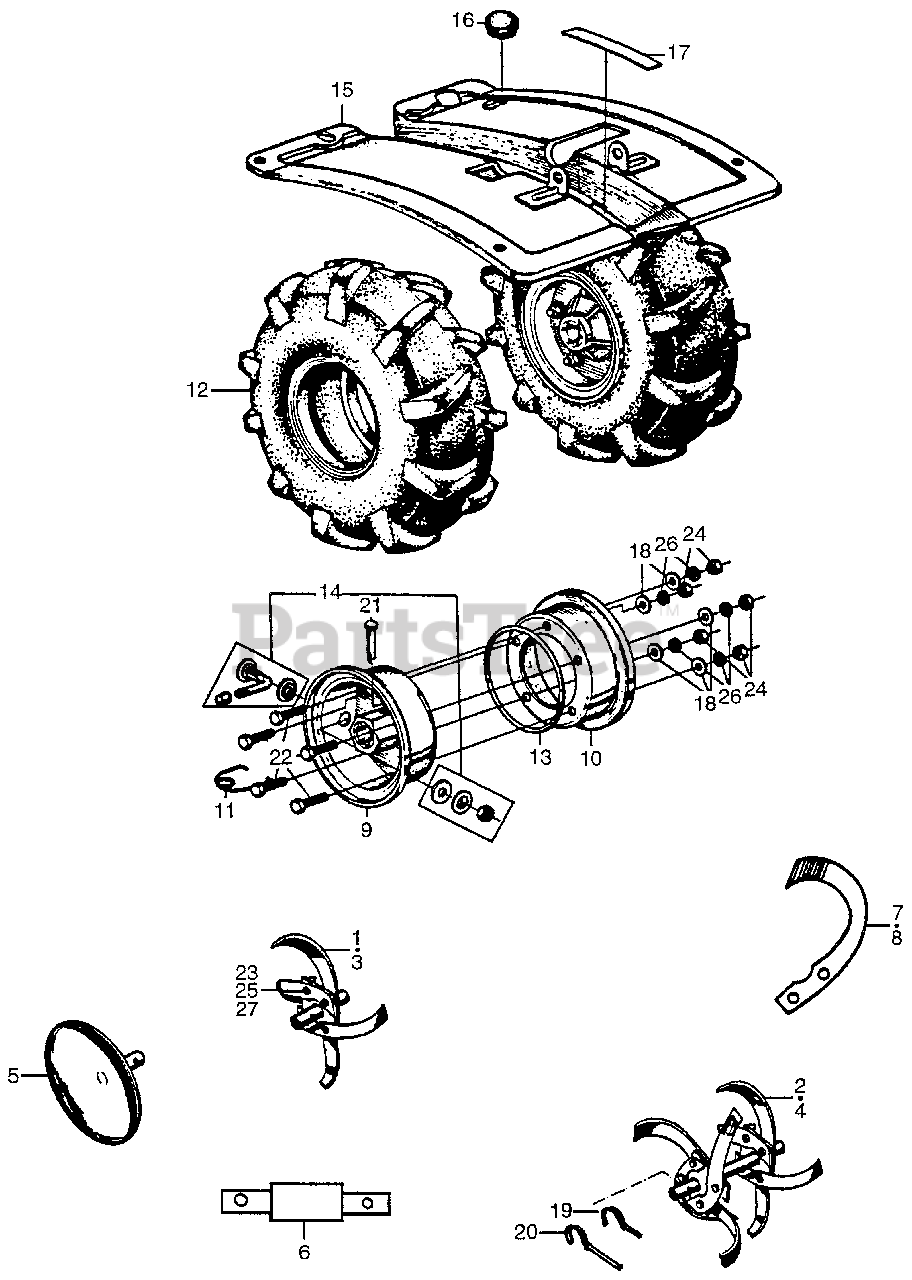

WHEEL + TINES + FENDER Parts Diagram

  • Title

NI

Honda 06400-715-000

TINE ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

NI

Honda 06430-715-000

WHEEL ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

1

Honda 06440-715-000

TINE ASSY., R. SINGLE (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 06441-715-000

TINE ASSY., R. DOUBLE

$

$

Not available

3

Honda 06442-715-000

TINE ASSY., L. SINGLE (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 06443-715-000

TINE ASSY., L. DOUBLE

$

$

Not available

5

Honda 06444-715-000

DISK, TILLER

$

$

Not available

6

Honda 06445-715-000

SHAFT, EXTENSION (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 06450-715-000

BLADE, R. TINE

$

$

Currently unavailable

8

Honda 06451-715-000

BLADE, L. TINE

$

$

Currently unavailable

9

Honda 42701-708-300XC

RIM A, WHEEL *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 42702-708-300ZA

RIM B, WHEEL *NH31* (MCKINLEY WHITE)

$

$

Not available

11

Honda 42706-708-000

CLIP, WHEEL

$4.99

$

Usually ships in 3-6 days

0

12

Honda 42750-708-000

TIRE (3.50-5)

$

$

Not available

13

Honda 42752-708-000

GASKET, RUBBER (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 42753-708-000

TUBE BULB ASSY.

$

$

Not available

15

Honda 61110-715-010XC

FENDER *NH31* (MCKINLEY WHITE)

$

$

Not available

16

Honda 61112-715-000

STOPPER, TENSIONER ARM

$

$

Not available

17

Honda 87511-708-710

MARK, OIL CHECK (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 90474-704-000

WASHER (6X17)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90650-715-000

CLIP, PIN (31MM)

$

$

Currently unavailable

20

Honda 90651-715-000

CLIP PIN (33MM) (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 90752-708-000

PIN A, WHEEL

$6.99

$

Usually ships in 3-6 days

0

22

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

23

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25)

$2.49

$

In Stock, Qty 6

0

24

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

24

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

25

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

26

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

In Stock, only 1 left!

0

27

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0
