F28 A (715) - Honda Tiller, Made in Japan (SN: 715-150005 - 715-275829) RIGHT SIDE COVER Parts Diagram

Tiller, Made in Japan

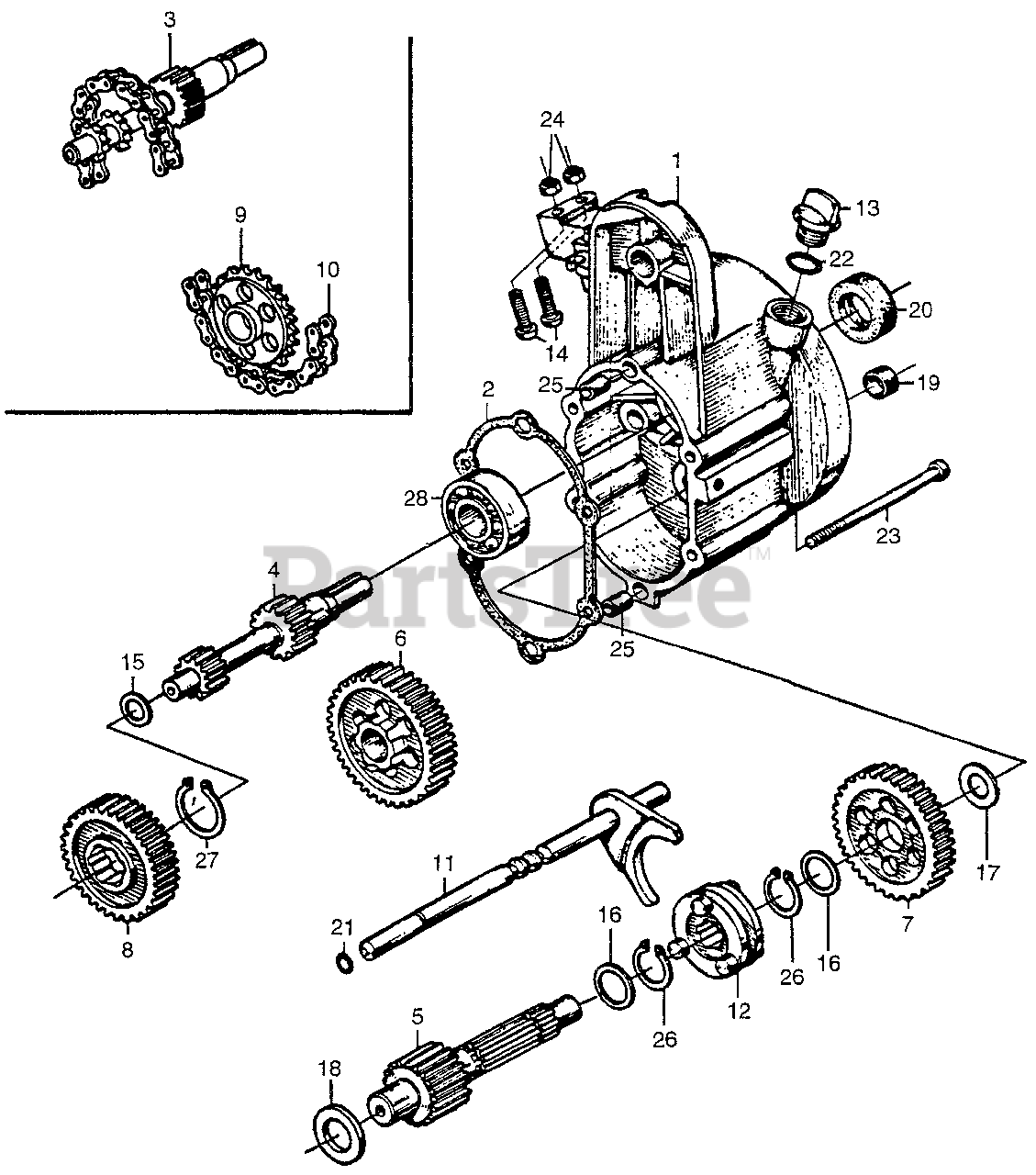

RIGHT SIDE COVER Parts Diagram

  • Title
1

Honda 21310-715-010

COVER, R. SIDE

$

$

Not available

2

Honda 21315-708-010

GASKET, R. SIDE (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 23110-715-720

SHAFT, INPUT

$

$

Not available

5

Honda 23221-708-000

COUNTERSHAFT

$

$

Not available

6

Honda 23241-708-000

GEAR, LOW COUNTER

$

$

Not available

7

Honda 23235-708-030

GEAR, FINAL

$

$

Not available

8

Honda 23251-708-610

GEAR, COUNTER (2ND.)

$

$

Not available

11

Honda 24110-715-020

SHAFT, SHIFT FORK

$

$

Not available

12

Honda 24281-715-000

INSULATOR, PLATE (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 25610-708-000

CAP, OIL (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 90103-708-000

BOLT, ADJUSTING

$

$

Not available

15

Honda 90451-708-000

WASHER (12MM) (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 90451-040-000

WASHER, THRUST (17MM)

$

$

Not available

17

Honda 90452-708-000

WASHER (12MM)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 90451-703-000

WASHER, THRUST (17MM) (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 91201-KK0-005

OIL SEAL (20X36X7) (NOK)

$

$

Not available

20

Honda 91202-708-000

OIL SEAL (15M/M) (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 91301-708-000

O-RING (7MM)
(Superseded to 91312-107-000)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

22

Honda 91304-MJ0-003

O-RING (15.8X2.4) (SHOWA)
(Superseded to 91303-800-000)

$2.99

$

In Stock, only 1 left!

0

23

Honda 93500-06080-0A

SCREW, PAN (6X80)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94002-06000-0S

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 94301-08100

SEE PART DETAILS - PRI; PIN A, DOWEL (8X10)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 94510-17000

CIRCLIP (OUTER) (17MM)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 94510-25000

CIRCLIP (OUTER) (25MM)

$1.99

$

In Stock, Qty 20+

0

28

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$21.99

$

In Stock, only 2 left!

0
