F28 A (715) - Honda Tiller, Made in Japan (SN: 715-150005 - 715-275829) PULLEY + BELT Parts Diagram
Tiller, Made in Japan

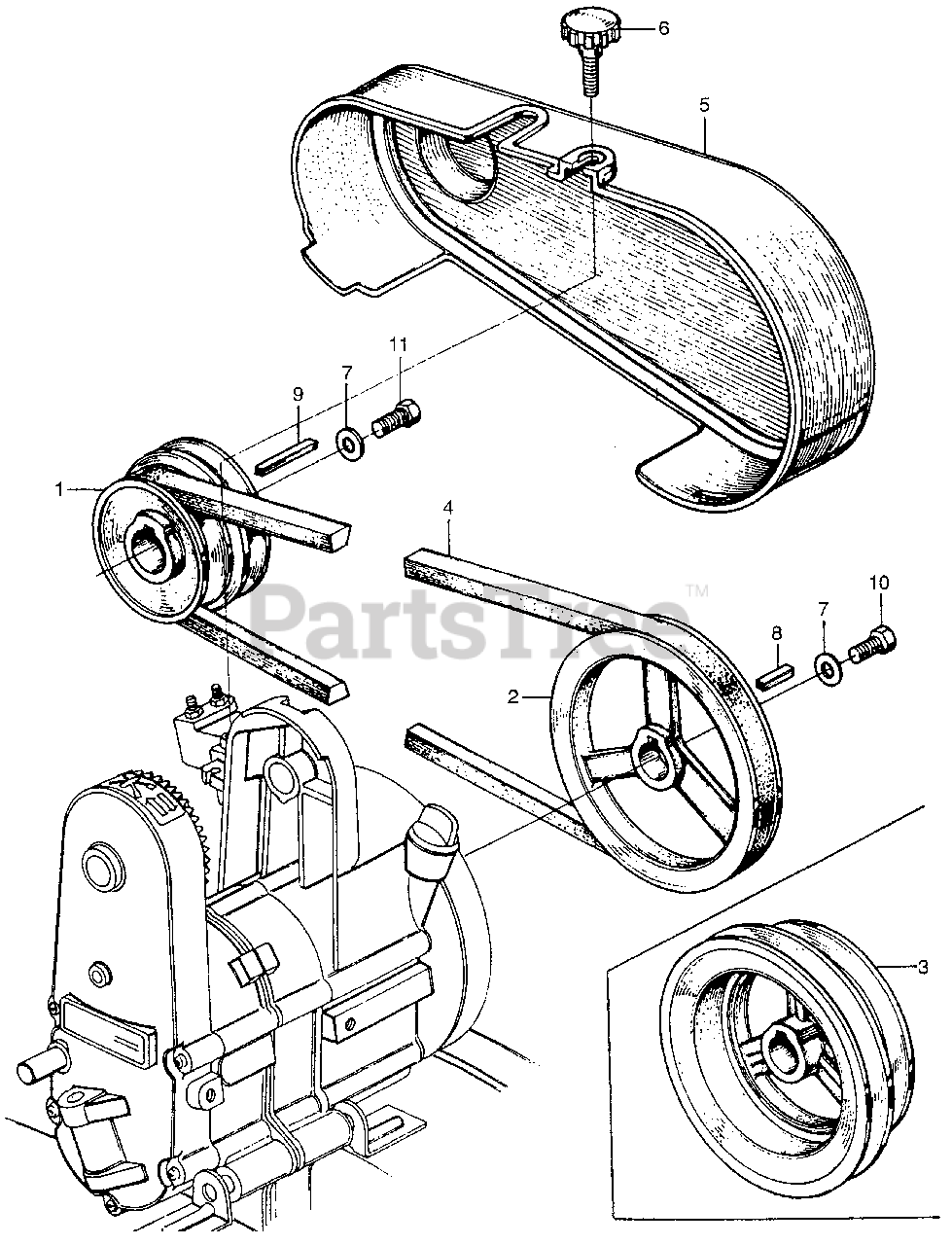

PULLEY + BELT Parts Diagram
Honda 22510-715-620
PULLEY, DRIVE (NOT AVAILABLE)
$
$
Not available
Honda 23140-715-000
PULLEY, DRIVEN
$
$
Not available
Honda 23140-715-621
PULLEY, DRIVEN
$
$
Not available
Honda 23161-708-010
SEE PART DETAILS - SUP; V-BELT (RE-MF-6269) (MITSUBOSHI)
$
$
Not available
Honda 63610-715-010XC
SEE PART DETAILS - PRI; COVER, BELT *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)
$
$
Currently unavailable
Honda 63615-708-000
LATCH, BELT COVER (NOT AVAILABLE)
$
$
Currently unavailable
Honda 90428-844-650
WASHER (8MM)
$4.99
$
Usually ships in 3-6 days
Honda 90741-715-000
KEY, FLAT (4X4X14)
$10.99
$
Usually ships in 3-6 days
Honda 90746-835-000
KEY (5X5X33)
$9.99
$
In Stock, only 1 left!
Honda 92101-08016-0A
SEE PART DETAILS - PRI; BOLT, HEX. (8X16)
$1.99
$
Usually ships in 3-6 days
Honda 92101-08025-0A
SEE PART DETAILS - PRI; BOLT, HEX. (8X25)
$2.49
$
In Stock, Qty 6
