F28 A (715) - Honda Tiller, Made in Japan (SN: 715-150005 - 715-275829) HITCH BOX Parts Diagram

Tiller, Made in Japan

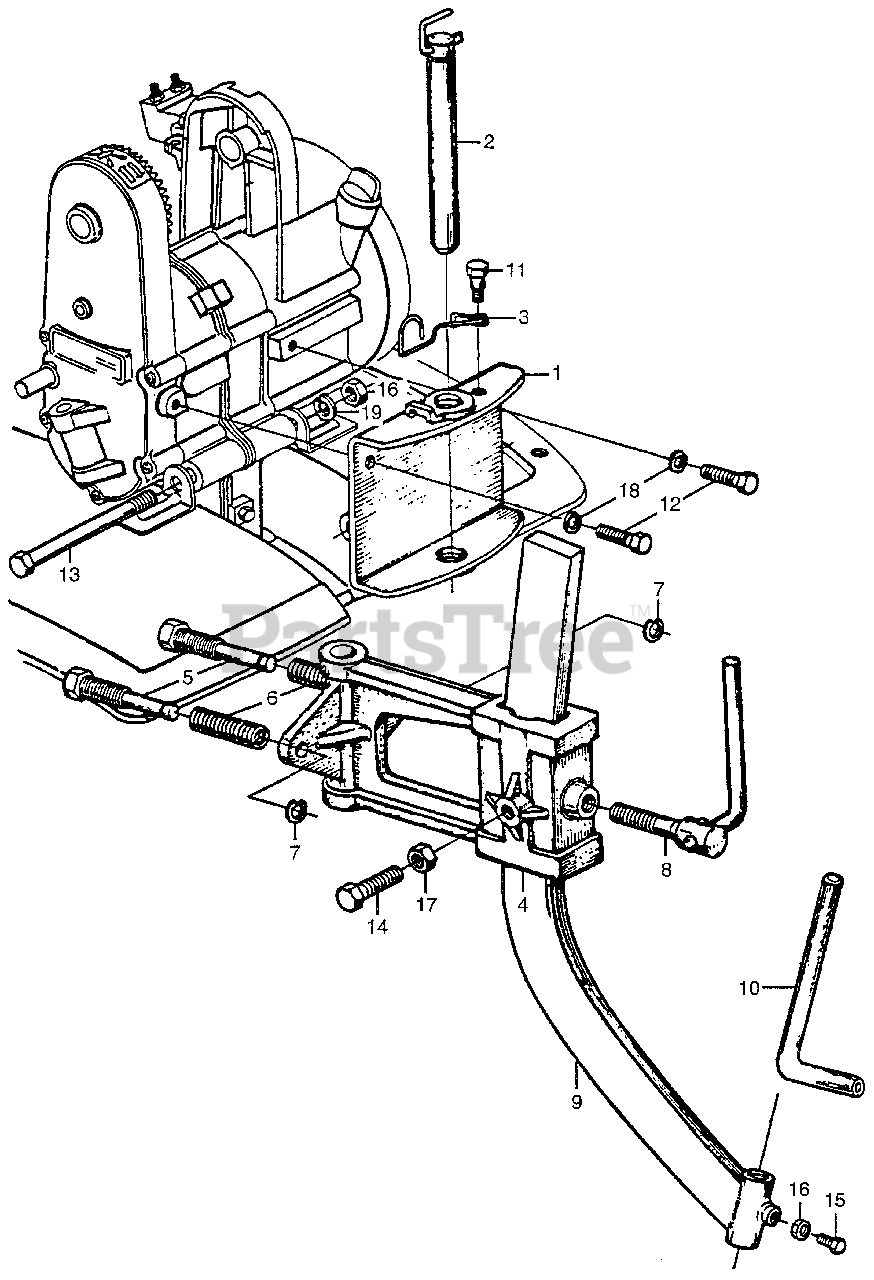

HITCH BOX Parts Diagram

  • Title

1

Honda 50610-708-030

BOX, HITCH (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 50620-708-000

PIN, WEIGHT HOLDER

$

$

Not available

3

Honda 50641-708-000

CLIP, HITCH PIN

$

$

Not available

4

Honda 80150-708-000

HITCH, ATTACHMENT

$

$

Not available

5

Honda 80161-708-000

BOLT, HITCH

$5.49

$

Usually ships in 3-6 days

0

6

Honda 80162-708-000

SPRING, HITCH

$3.49

$

Usually ships in 3-6 days

0

7

Honda 80163-708-000

WASHER

$

$

Not available

8

Honda 80170-708-000

HANDLE ASSY., STOPPER

$

$

Not available

9

Honda 80311-704-810

BAR A, DRAG

$

$

Not available

10

Honda 80315-704-810

BAR B, DRAG

$27.99

$

Usually ships in 3-6 days

0

11

Honda 90101-708-000

BOLT, SPECIAL (6MM)

$

$

Not available

12

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25)

$2.49

$

In Stock, Qty 6

0

13

Honda 92000-10080-0A

BOLT, HEX. (10X80)

$

$

Currently unavailable

14

Honda 92030-12032-0A

BOLT, HEX. (12X32) (NOT AVAILABLE)

Note: Use up to Frame SN 0300850.

$

$

Currently unavailable

15

Honda 92023-10025-0A

BOLT, HEX. (10X25) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

16

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

In Stock, only 1 left!

0

17

Honda 94002-12000-0S

NUT, HEX. (12MM)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94111-10000

WASHER, SPRING (8MM)

$1.99

$

Usually ships in 3-6 days

0
