F28 A (715) - Honda Tiller, Made in Japan (SN: 715-150005 - 715-275829) FLYWHEEL + CRANKCASE Parts Diagram

Tiller, Made in Japan

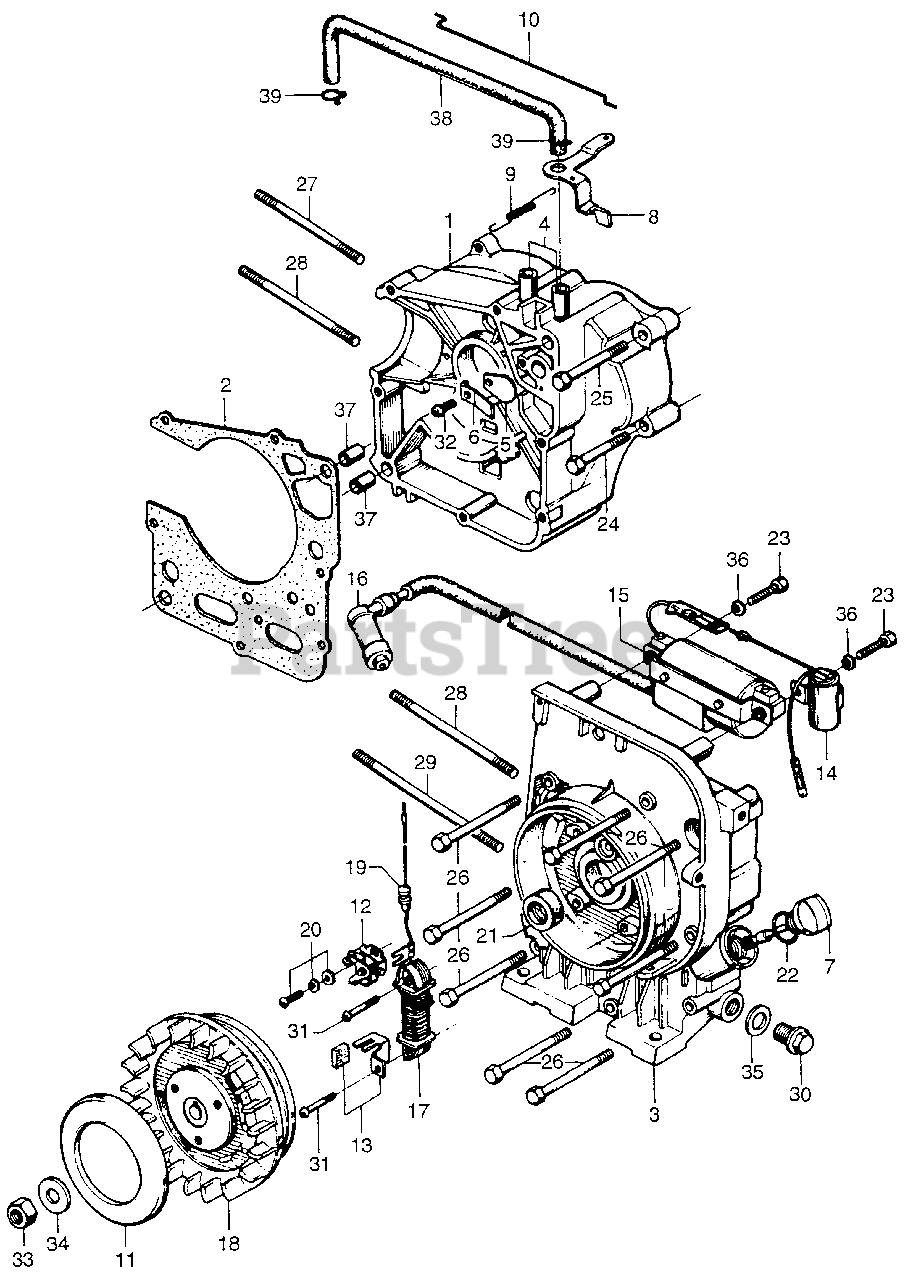

FLYWHEEL + CRANKCASE Parts Diagram

  • Title

1

Honda 11101-844-010

CRANKCASE, R.

$

$

Not available

2

Honda 11191-844-000

GASKET, CRANKCASE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 11201-844-000

CRANKCASE, L.

$

$

Not available

4

Honda 11204-816-010

JOINT, BREATHER (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 12372-844-000

VALVE, BREATHER

$

$

Not available

6

Honda 12373-844-000

STOPPER, BREATHER

$

$

Not available

7

Honda 15620-844-000

CAP, OIL FILLER (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16621-844-000

LEVER, CHOKE

$

$

Not available

9

Honda 16623-844-000

SPRING, CHOKE LEVER (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 16625-844-000

ROD, CHOKE (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 28433-816-010

COVER, SEAL

$

$

Currently unavailable

12

Honda 30202-063-004

POINTS

$

$

Not available

13

Honda 30205-816-650

FELT, OIL (DENSO)

$

$

Not available

14

Honda 30250-844-004

CONDENSER

$34.99

$

Usually ships in 3-6 days

0

15

Honda 30500-844-405

SEE PART DETAILS - PRI; COIL, IGNITION (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 30500-844-711

SEE PART DETAILS - SUP; COIL, IGNITION

$

$

Currently unavailable

16

Honda 30600-841-000

TERMINAL ASSY., IGNITION

$

$

Not available

17

Honda 30560-844-004

COIL, IGNITION (NOT AVAILABLE)

$76.99

$

Usually ships in 3-6 days

0

18

Honda 31120-844-004

FLYWHEEL (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 32901-816-000

GROMMET, WIRE

$

$

Currently unavailable

20

Honda 90018-816-000

SCREW, STOP (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 91211-044-003

SEE PART DETAILS - PRI; OIL SEAL (15X25X6)

$

$

Not available

22

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

22

Honda 91304-MJ0-003

O-RING (15.8X2.4) (SHOWA)
(Superseded to 91303-800-000)

$2.99

$

In Stock, only 1 left!

0

23

Honda 92101-05025-0A

BOLT, HEX. (5X25)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 92101-06032-0A

BOLT, HEX. (6X32)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 92101-06045-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X45)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 92000-06056

BOLT, HEX. (6X56)

$

$

Currently unavailable

26

Honda 92000-06056-0A

BOLT, HEX. (6X56) (NOT AVAILABLE)

$

$

Currently unavailable

27

Honda 92700-06080

BOLT, STUD (6X80) (NOT AVAILABLE)

$

$

Currently unavailable

28

Honda 92700-06090

BOLT, STUD (6X90)

$

$

Currently unavailable

29

Honda 92700-06115

BOLT, STUD (6X115) (NOT AVAILABLE)

$

$

Currently unavailable

30

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

31

Honda 93500-04020-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X20)

$1.49

$

In Stock, Qty 10

0

32

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 8

0

33

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

Note: Use up to Engine SN 1086827.

$1.99

$

In Stock, only 1 left!

0

33

Honda 94030-10200

NUT, HEX. (10MM)

Note: Use from Engine SN 1086828.

$1.49

$

In Stock, only 1 left!

0

34

Honda 94101-10000

SEE PART DETAILS - PRI; WASHER, PLAIN (10MM)

Note: Use up to Engine SN 1086827.

$1.49

$

Usually ships in 3-6 days

0

34

Honda 90411-706-000

WASHER (10MM)

Note: Use from Engine SN 1086828.

$

$

Not available

35

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

36

Honda 94111-05000

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

37

Honda 94301-10160

PIN A, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

38

Honda 95001-70350

TUBE (7X224)

Note: Use up to Engine SN 1122000.

$

$

Currently unavailable

38

Honda 95001-70000

TUBE (7X224) (NOT AVAILABLE)

Note: Use up to Engine SN 1122000.

$

$

Currently unavailable

38

Honda 95001-75008-60M

BULK HOSE, FUEL (7.5X8000) (7.3X350)

Note: Use from Engine SN 1122001.

$155.99

$

Usually ships in 3-6 days

0

39

Honda 95002-70000

CLIP, TUBE (C11)

Note: Use up to Engine SN 1122000.

$2.49

$

In Stock, Qty 5

0

39

Honda 95002-02120

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

Note: Use from Engine SN 1122001.

$2.99

$

In Stock, only 2 left!

0
