F28 A (715) - Honda Tiller, Made in Japan (SN: 715-150005 - 715-275829) FAN COVER + STARTER Parts Diagram

Tiller, Made in Japan

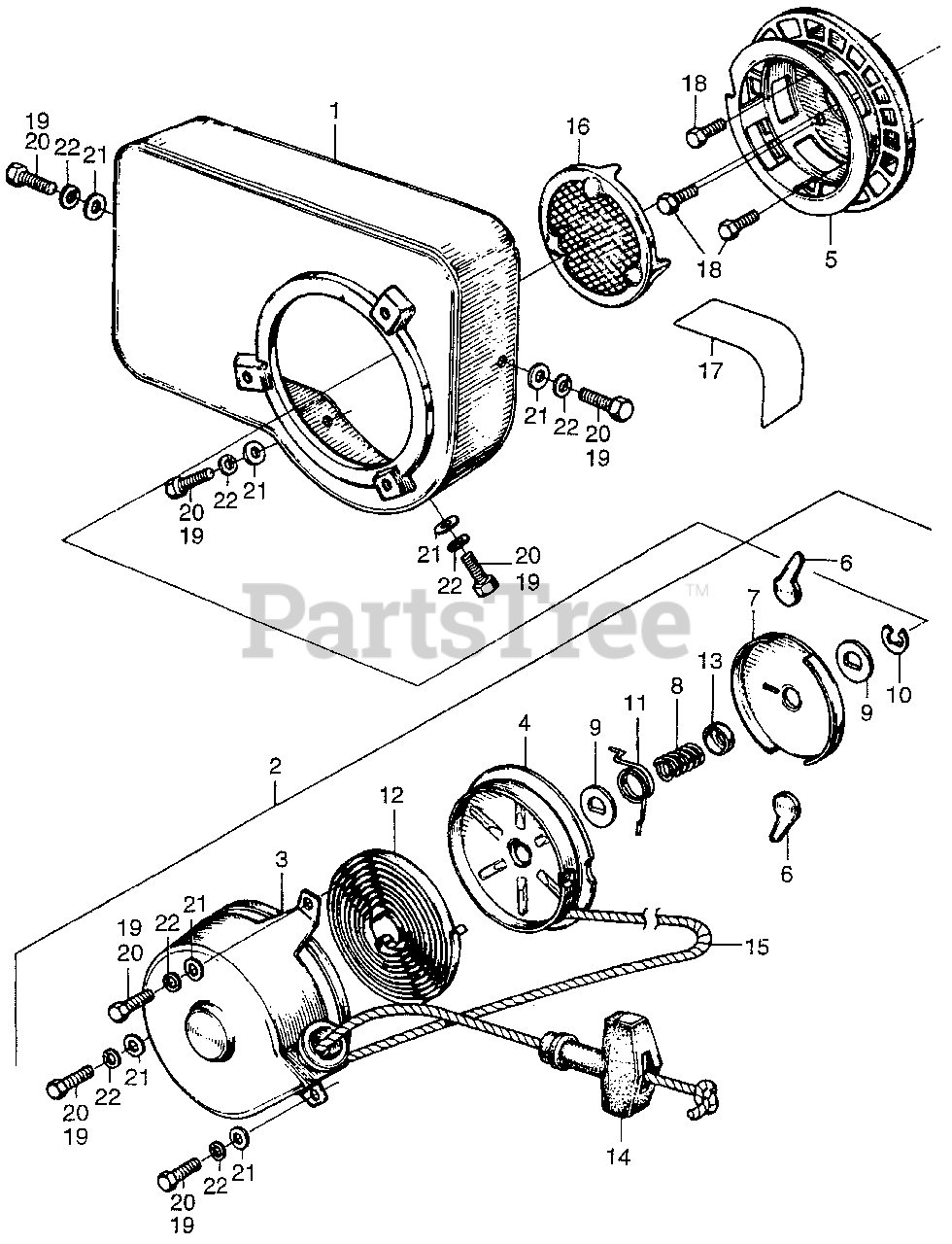

FAN COVER + STARTER Parts Diagram

  • Title

1

Honda 19600-844-010H

COVER, FAN *R8* (BRIGHT RED)

$

$

Currently unavailable

2

Honda 28400-816-040H

SEE PART DETAILS - PRI; STARTER, RECOIL *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 28410-816-010H

CASE, STARTER *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 28420-816-000

PULLEY, STARTER (NOT AVAILABLE)

$

$

Not available

5

Honda 28430-844-003

PULLEY, RATCHET (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 28441-844-013

RATCHET, STARTER

$9.99

$

In Stock, only 1 left!

0

7

Honda 28443-816-650

PLATE, FRICTION

$

$

Not available

8

Honda 28444-816-000

SPRING, FRICTION (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 28445-816-650

WASHER, STARTER

$

$

Not available

10

Honda 28446-816-000

E-RING

$1.49

$

In Stock, only 3 left!

0

11

Honda 28447-816-000

SPRING SET

$

$

Not available

12

Honda 28451-844-003

SEE PART DETAILS - PRI; SPRING, STARTER

$

$

Not available

13

Honda 28453-816-000

COVER, SPRING

$

$

Currently unavailable

14

Honda 28461-878-810

KNOB, STARTER

$

$

Not available

15

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X55")

$12.99

$

In Stock, only 3 left!

0

16

Honda 28490-816-000

SCREEN, CENTER

$

$

Not available

18

Honda 92101-05008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X8)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

22

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

In Stock, only 1 left!

0
