F28 A (715) - Honda Tiller, Made in Japan (SN: 715-150005 - 715-275829) CARBURETOR Parts Diagram

Tiller, Made in Japan

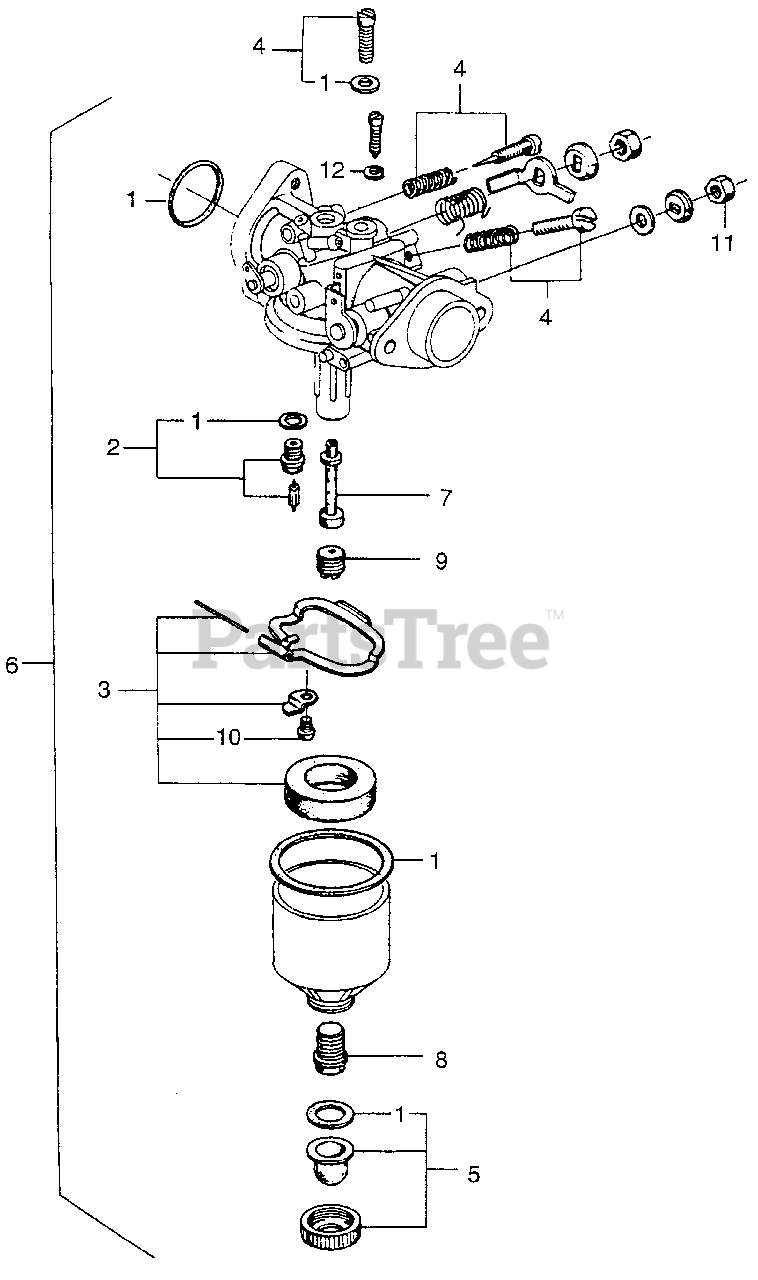

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-844-505

GASKET SET

$

$

Currently unavailable

2

Honda 16011-051-004

SEE PART DETAILS - PRI; VALVE SET, FLOAT

$22.99

$

Usually ships in 3-6 days

0

3

Honda 16013-124-014

SEE PART DETAILS - PRI; FLOAT SET

$

$

Not available

4

Honda 16016-844-004

SCREW SET A (NOT AVAILABLE)

$

$

Not available

5

Honda 16039-841-305

SEE PART DETAILS - PRI; CUP SET

$20.99

$

Usually ships in 3-6 days

0

6

Honda 16100-844-014

CARBURETOR ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 16134-844-014

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16185-841-004

BOLT, HEX. (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 99114-822-0650

JET, MAIN (#65)

Note: Use up to Engine SN 1007777.

$

$

Currently unavailable

9

Honda 99114-822-0650

JET, MAIN (#65) Use from Engine SN 1007778.

$

$

Currently unavailable

9

Honda 99114-822-0680

JET, MAIN (#68)

$

$

Currently unavailable

9

Honda 99114-822-0680

JET, MAIN (#68)

Note: Use from Engine SN 1007778.

$

$

Currently unavailable

9

Honda 99114-822-0700

JET, MAIN (#70)

$

$

Currently unavailable

9

Honda 99114-822-0720

JET, MAIN (#72)

$

$

Currently unavailable

9

Honda 99114-823-0620

JET, MAIN (#62)

$

$

Currently unavailable

9

Honda 99114-823-0700

JET, MAIN (#70)

$

$

Currently unavailable

10

Honda 93500-03005-0A

SEE PART DETAILS - PRI; SCREW, PAN (3X5)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 94001-05000-0S

NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

12

Honda 94111-03000

WASHER, SPRING (3MM)

$1.49

$

In Stock, Qty 9

0
