F220 K1 AT2 (FAAJ) - Honda 21" Tiller, Made in Japan (SN: FAAJ-3800001 - FAAJ-3809999) FUEL TANK (F220K1) Parts Diagram

21" Tiller, Made in Japan

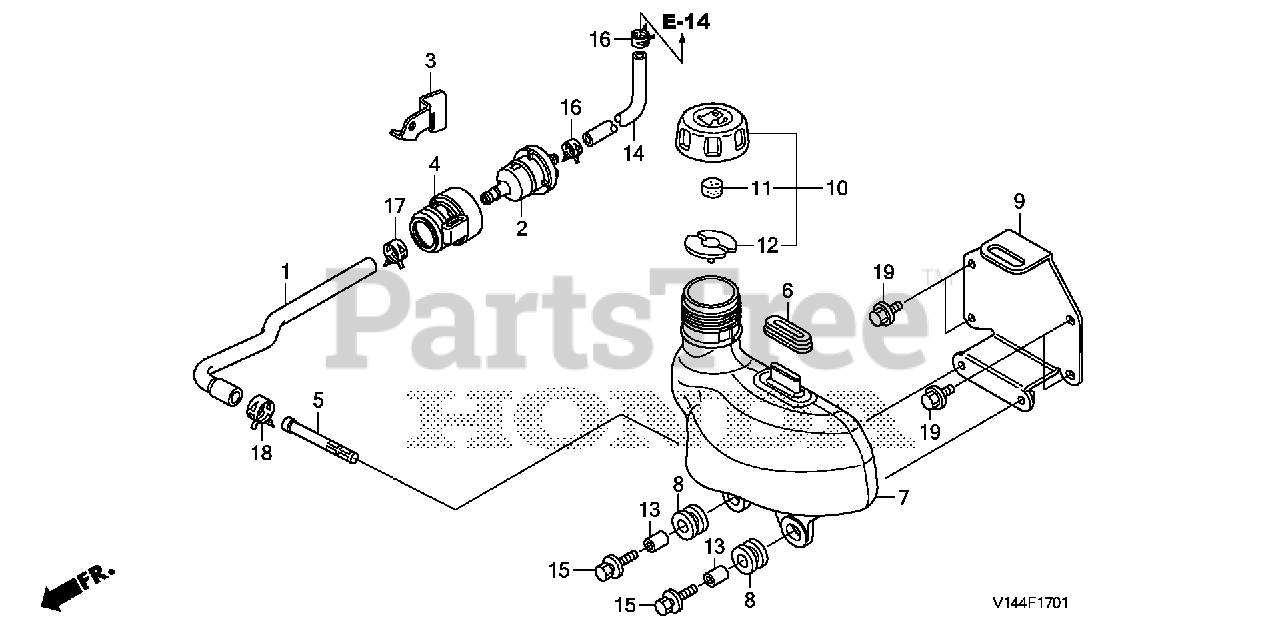

FUEL TANK (F220K1) Parts Diagram

  • Title

1

Honda 16851-Z0G-B01

TUBE A, FUEL (FKM)
(Superseded to 16851-Z0G-B02)

$23.99

$

Usually ships in 3-6 days

0

2

Honda 16910-Z0G-B01

FILTER, FUEL

$14.99

$

Usually ships in 3-6 days

0

3

Honda 16911-Z0G-B00

STAY, FUEL STRAINER

$10.99

$

Usually ships in 3-6 days

0

4

Honda 16915-GB2-000

SUSPENSION, STRAINER

$7.49

$

Usually ships in 3-6 days

0

5

Honda 16952-ZB6-010

SEE PART DETAILS - PRI; BUSH, FUEL PURGE

$8.99

$

Usually ships in 3-6 days

0

6

Honda 17506-Z0G-B00

RUBBER, TANK SETTING

$9.99

$

Usually ships in 3-6 days

0

7

Honda 17511-Z0G-305

TANK, FUEL (COO)
(Superseded to 17511-Z0G-B01)

$93.99

$

Usually ships in 3-6 days

0

8

Honda 17516-ZV0-000

RUBBER B, TANK MOUNTING

$4.49

$

In Stock, only 2 left!

0

9

Honda 17544-Z0G-B00

BRACKET, FUEL TANK

$22.99

$

Usually ships in 3-6 days

0

10

Honda 17620-ZL8-023

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$5.99

$

In Stock, Qty 16

0

11

Honda 17622-ZL8-003

SPONGE, FUEL CAP BREATHER

$1.99

$

In Stock, Qty 5

0

12

Honda 17624-ZL8-013

GASKET, FUEL CAP

$2.99

$

In Stock, Qty 8

0

13

Honda 90501-KA2-640

COLLAR (14X6.1)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 91424-Z0G-B01

TUBE, FUEL (4.5X95) (FKM)
(Superseded to 91424-Z0G-B02)

$

$

Not available

15

Honda 93414-06025-08

BOLT-WASHER (6X25)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, only 4 left!

0

17

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 95002-41200-08

CLAMP, TUBE (D12)

$3.49

$

In Stock, only 2 left!

0

19

Honda 95701-06012-08

BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0
