F220 K1 AT2/A (FAAJ) - Honda 21" Tiller, Made in Japan (SN: FAAJ-3810001 - FAAJ-9999999) REDUCTION CASE Parts Diagram

21" Tiller, Made in Japan

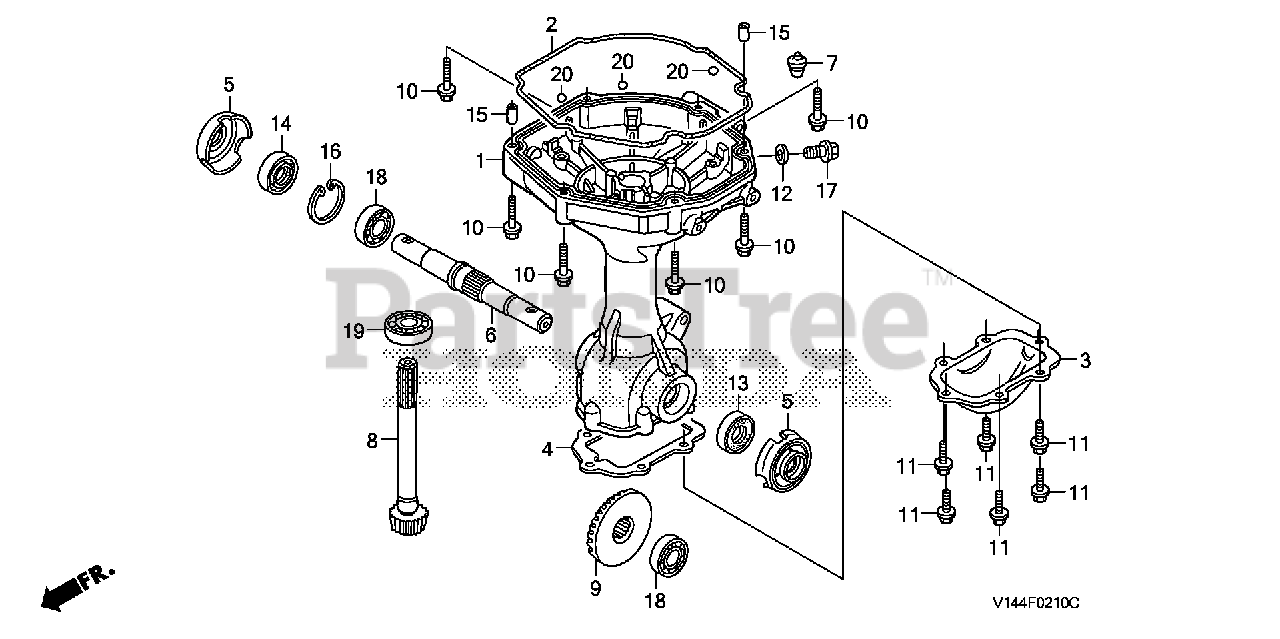

REDUCTION CASE Parts Diagram

  • Title

1

Honda 21111-V14-405

CASE, REDUCTION

$454.99

$

Usually ships in 3-6 days

0

2

Honda 21271-729-000

O-RING (208MM)

$15.99

$

Usually ships in 3-6 days

0

3

Honda 21282-729-000

COVER (LOWER)

$26.99

$

Usually ships in 3-6 days

0

4

Honda 21289-V14-000

GASKET, COVER (LOWER)

$9.99

$

Usually ships in 3-6 days

0

5

Honda 21911-729-000

GUARD, GRASS

$14.99

$

In Stock, only 3 left!

0

6

Honda 23371-V14-000

SHAFT, TINE

$105.99

$

Usually ships in 3-6 days

0

7

Honda 25611-V14-010

CAP, TRANSMISSION OIL

$4.49

$

Usually ships in 3-6 days

0

8

Honda 41131-729-000

PINION, BEVEL (12T)

$108.99

$

Usually ships in 3-6 days

0

9

Honda 41141-729-000

GEAR, BEVEL (37T)

$112.99

$

Usually ships in 3-6 days

0

10

Honda 90016-ZE8-000

BOLT, FLANGE (6X45) (Honda Code 2488187).

$2.99

$

In Stock, only 2 left!

0

11

Honda 90029-888-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 0747733).

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90481-705-000

WASHER (10.5MM)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 91257-729-003

DUST SEAL (20X40X11)

$15.99

$

In Stock, only 2 left!

0

14

Honda 91253-729-003

OIL SEAL (20X47X7)

$12.99

$

In Stock, only 2 left!

0

15

Honda 94301-08120

SEE PART DETAILS - PRI; PIN A, DOWEL (8X12) (Honda Code 0069328).

$2.99

$

Usually ships in 3-6 days

0

16

Honda 94520-47000

CIRCLIP (INNER) (47MM)

$3.49

$

In Stock, only 2 left!

0

17

Honda 95701-10016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X16)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 96100-62040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204) (Honda Code 0674390).

$16.99

$

In Stock, only 2 left!

0

19

Honda 96100-63020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6302) (Honda Code 0834176).

$12.99

$

Usually ships in 3-6 days

0

20

Honda 96211-10000

BALL, STEEL (#10) (5/16)

$1.99

$

Usually ships in 3-6 days

0
