F210 K2 A (F210) - Honda Tiller, Made in Japan (SN: F210-2200001 - F210-2999999) SNORKEL AIR CLEANER Parts Diagram

Tiller, Made in Japan

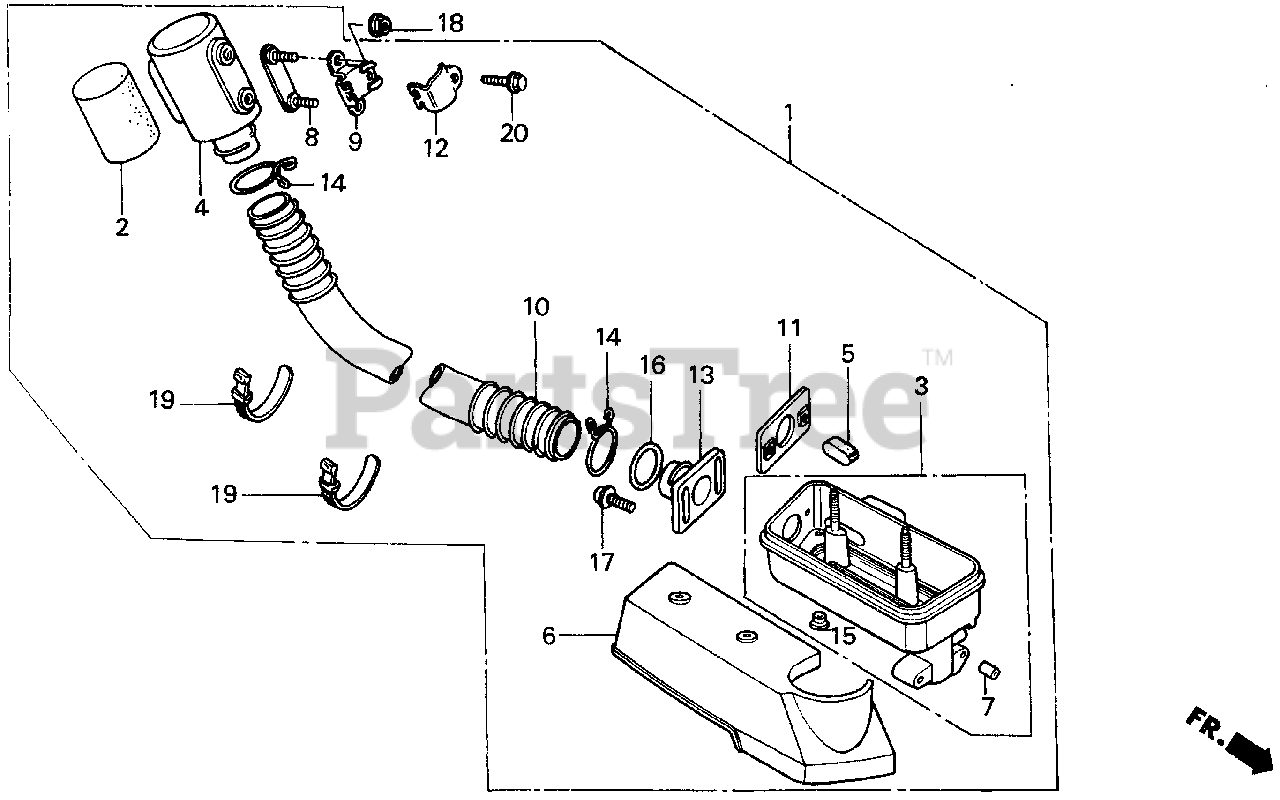

SNORKEL AIR CLEANER Parts Diagram

  • Title

1

Honda 06172-ZG1-650ZC

AIR CLEANER KIT, SNORKEL *R8*

Note: (Optional).

$

$

Currently unavailable

2

Honda 17211-896-810

ELEMENT, AIR CLEANER

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

3

Honda 17220-ZG1-651

HOUSING, AIR CLEANER Use from Engine SN 2085824.

Note: (Optional).

$

$

Not available

4

Honda 17221-896-810

HEAD, SNORKEL AIR CLEANER

Note: (Optional).

$

$

Not available

5

Honda 17223-896-810

CAP, SNORKEL AIR CLEANER

Note: (Optional).

$

$

Not available

6

Honda 17231-ZG1-650ZA

COVER, AIR CLEANER *R8*

Note: (Optional).

$

$

Not available

7

Honda 17233-ZG1-010

COLLAR, AIR CLEANER

Note: (Optional).

$

$

Not available

8

Honda 17234-888-691

PLATE, AIR CLEANER SETTING (Honda Code 0754077).

Note: (Optional).

$15.99

$

Usually ships in 3-6 days

0

9

Honda 17236-888-691

BRACKET A, AIR CLEANER (Honda Code 0754085).

Note: (Optional).

$39.99

$

Usually ships in 3-6 days

0

10

Honda 17237-896-811

HOSE, SNORKEL AIR CLEANER

Note: (Optional).

$

$

Not available

11

Honda 17238-ZG1-650

FLANGE, SNORKEL PIPE

Note: (Optional).

$

$

Not available

12

Honda 17239-888-690

BRACKET B, AIR CLEANER (Honda Code 0754101).

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

13

Honda 17411-896-811

PIPE, SNORKEL

Note: (Optional).

$

$

Not available

14

Honda 18531-634-670

CLIP, AIR HOSE (27) (NOT AVAILABLE) (Honda Code 0576132).

Note: (Optional).

$

$

Currently unavailable

15

Honda 90522-170-700

COLLAR, GEARSHIFT LEVER SETTING

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

16

Honda 91303-896-811

O-RING (27.7X1.9)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

17

Honda 93891-04010-00

SCREW-WASHER (4X10)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

18

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

Note: (Optional).

$0.99

$

In Stock, Qty 20+

0

19

Honda 95014-62300

BAND B3, CABLE HARNESS (Honda Code 0288142).

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

20

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

Note: (Optional).

$2.49

$

In Stock, only 3 left!

0
