F210 K2 A (F210) - Honda Tiller, Made in Japan (SN: F210-2200001 - F210-2999999) REDUCTION CASE Parts Diagram

Tiller, Made in Japan

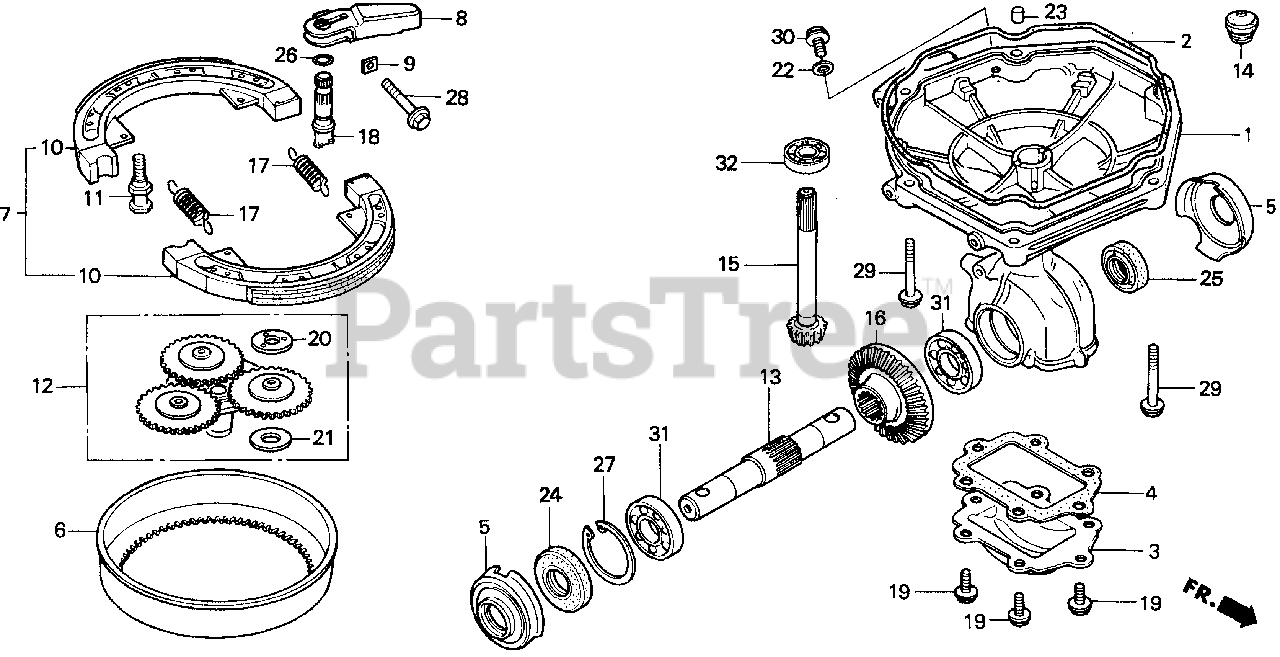

REDUCTION CASE Parts Diagram

  • Title

1

Honda 211A1-729-721

CASE, REDUCTION

$

$

Not available

2

Honda 21271-729-000

O-RING (208MM)

$14.99

$

Usually ships in 3-6 days

0

3

Honda 21282-729-000

COVER (LOWER)

$25.99

$

Usually ships in 3-6 days

0

4

Honda 21289-737-J00

GASKET, COVER (LOWER)

$

$

Not available

5

Honda 21911-729-000

GUARD, GRASS

$14.99

$

In Stock, only 3 left!

0

6

Honda 22101-729-720

CLUTCH (OUTER)

$85.99

$

Usually ships in 3-6 days

0

7

Honda 22010-737-000

SEE PART DETAILS - PRI; SHOE SET, CLUTCH

$

$

Not available

8

Honda 22520-729-000

ARM, CLUTCH

$

$

Not available

9

Honda 22524-729-000

PLATE, ARM LOCK

$

$

Not available

10

Honda 22010-737-000

SEE PART DETAILS - PRI; SHOE SET, CLUTCH

$

$

Not available

11

Honda 22533-729-000

PIN, ANCHOR

$14.99

$

In Stock, only 1 left!

0

12

Honda 22610-729-010

PLATE, DRIVE

$158.99

$

Usually ships in 3-6 days

0

13

Honda 23371-729-000

SHAFT, TINE

$

$

Not available

14

Honda 25611-729-000

CAP, TRANSMISSION OIL
(Superseded to 25611-729-010)

$4.99

$

Usually ships in 3-6 days

0

15

Honda 41131-729-000

PINION, BEVEL (12T)

$104.99

$

Usually ships in 3-6 days

0

16

Honda 41141-729-000

GEAR, BEVEL (37T)

$108.99

$

Usually ships in 3-6 days

0

17

Honda 45133-329-000

SPRING, FR. BRAKE SHOE

$3.99

$

In Stock, only 2 left!

0

18

Honda 22823-737-J00

CAM, CLUTCH

Note: Use up to Frame SN 2277743.

$

$

Not available

19

Honda 90011-729-000

BOLT, SPECIAL (6X14)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90452-729-300

WASHER (8MM)

$6.49

$

Usually ships in 3-6 days

0

21

Honda 90454-729-300

WASHER A, THRUST (12MM) (0.8)

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90455-729-300

WASHER B, THRUST (12MM) (1.0)

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90456-729-300

WASHER C, THRUST (12MM) (0.7)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 90481-705-000

WASHER (10.5MM)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

$3.99

$

Usually ships in 3-6 days

0

24

Honda 91253-729-003

OIL SEAL (20X47X7)

$11.99

$

In Stock, only 2 left!

0

25

Honda 91257-729-003

DUST SEAL (20X40X11)

$15.99

$

In Stock, only 2 left!

0

26

Honda 91302-GE0-000

O-RING (8.8X1.9)

$5.49

$

In Stock, only 2 left!

0

27

Honda 94520-47000

CIRCLIP (INNER) (47MM)

$2.99

$

In Stock, only 2 left!

0

28

Honda 95701-06032-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 2105856).

$2.49

$

In Stock, Qty 5

0

29

Honda 95701-06045-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X45) (Honda Code 2410967).

$2.99

$

In Stock, Qty 10

0

30

Honda 95701-10016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X16)

$2.99

$

Usually ships in 3-6 days

0

31

Honda 96100-62040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204) (Honda Code 0674390).

$16.99

$

In Stock, only 2 left!

0

32

Honda 96100-63020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6302) (Honda Code 0834176).

$11.99

$

Usually ships in 3-6 days

0
