F210 K2 A (F210) - Honda Tiller, Made in Japan (SN: F210-2200001 - F210-2999999) RECOIL STARTER (2) Parts Diagram

Tiller, Made in Japan

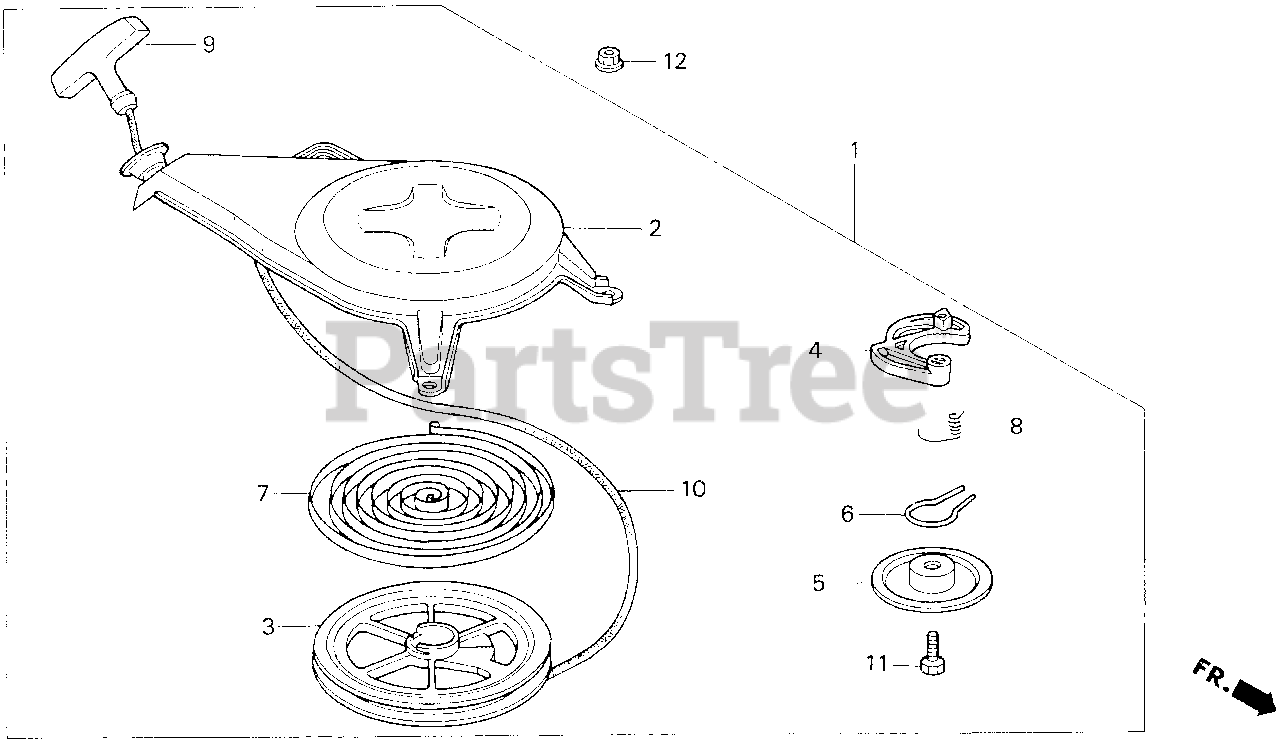

RECOIL STARTER (2) Parts Diagram

  • Title

1

Honda 28400-ZG1-004

STARTER ASSY., RECOIL

Note: Use from Engine SN 2494333.

$

$

Not available

2

Honda 28410-ZG1-004

CASE, RECOIL STARTER

Note: Use from Engine SN 2494333.

$

$

Not available

3

Honda 28420-ZG0-004

REEL, RECOIL STARTER

Note: Use from Engine SN 2494333.

$

$

Not available

4

Honda 28422-896-010

SEE PART DETAILS - PRI; RATCHET, STARTER (Honda Code 1033224).

Note: Use from Engine SN 2494333.

$8.49

$

In Stock, only 1 left!

0

5

Honda 28431-896-000

PLATE, FRICTION (Honda Code 0927913).

Note: Use from Engine SN 2494333.

$6.49

$

Usually ships in 3-6 days

0

6

Honda 28441-896-000

SPRING, FRICTION (Honda Code 0927921).

Note: Use from Engine SN 2494333.

$8.99

$

Usually ships in 3-6 days

0

7

Honda 28442-ZE6-003

SPRING, RECOIL STARTER (Honda Code 2332922).

Note: Use from Engine SN 2494333.

$25.99

$

In Stock, only 1 left!

0

8

Honda 28443-896-000

SPRING, RETURN (Honda Code 0927939).

Note: Use from Engine SN 2494333.

$5.49

$

In Stock, only 1 left!

0

9

Honda 28461-ZG0-004

KNOB, STARTER

Note: Use from Engine SN 2494333.

$9.49

$

In Stock, only 1 left!

0

10

Honda 28462-ZG1-004

ROPE, RECOIL STARTER (#4X65") (N/A: USE ALTERNATE P/N 08540-ZG921-11)

Note: Use from Engine SN 2494333.

$

$

Currently unavailable

11

Honda 92101-06012-0H

SEE PART DETAILS - PRI; BOLT, HEX. (6X20) (Honda Code 3438264).

Note: Use from Engine SN 2494333.

$1.99

$

Usually ships in 3-6 days

0

12

Honda 94050-05000

NUT, FLANGE (5MM) (Honda Code 0636951).

Note: Use from Engine SN 2494333.

$1.99

$

In Stock, Qty 20+

0
