F210 K1 A (F210) - Honda Tiller, Made in Japan (SN: F210-2100001 - F210-2199999) OIL PAN Parts Diagram

Tiller, Made in Japan

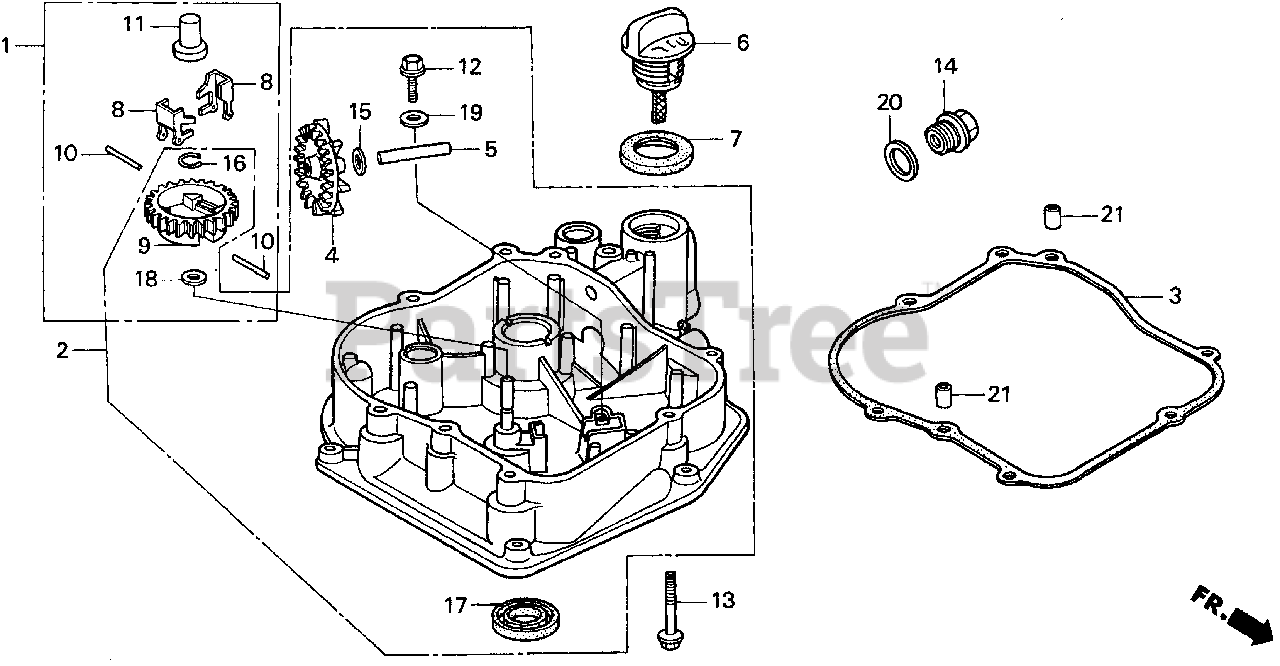

OIL PAN Parts Diagram

  • Title
1

Honda 06165-ZG0-000

GOVERNOR KIT (STD)

Note: (Optional).

$

$

Not available

2

Honda 11300-ZG1-000

PAN ASSY., OIL

$

$

Not available

3

Honda 11381-ZG0-306

SEE PART DETAILS - SUP; GASKET, CASE COVER
(Superseded to 11381-ZG0-800)

Note: Use up to Engine SN 2547367.

$9.49

$

In Stock, only 1 left!

0

3

Honda 11381-ZG0-800

SEE PART DETAILS - PRI; GASKET, CASE COVER

$9.49

$

In Stock, only 1 left!

0

4

Honda 15331-896-701

SLINGER, OIL

$11.99

$

Usually ships in 3-6 days

0

5

Honda 15332-896-700

SHAFT, OIL SLINGER

$

$

Not available

6

Honda 15620-ZG1-003

SEE PART DETAILS - PRI; CAP, OIL FILLER

$7.49

$

Usually ships in 3-6 days

0

7

Honda 15625-ZE6-000

GASKET, OIL FILLER CAP Use up to Engine SN 1257294.

$4.49

$

Usually ships in 3-6 days

0

8

Honda 16511-896-000

WEIGHT, GOVERNOR

$2.99

$

In Stock, only 3 left!

0

9

Honda 16512-ZG0-000

HOLDER, GOVERNOR WEIGHT

$14.99

$

Usually ships in 3-6 days

0

10

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16531-ZG0-000

SLIDER, GOVERNOR

$4.49

$

Usually ships in 3-6 days

0

12

Honda 90005-896-000

BOLT, FLANGE (5X16) (Honda Code 1420611).

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$3.99

$

In Stock, Qty 8

0

14

Honda 92800-20000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (20MM) (Honda Code 0209635).

$7.49

$

Usually ships in 3-6 days

0

15

Honda 90539-836-000

WASHER (6MM)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 6

0

17

Honda 91201-896-701

SEE PART DETAILS - PRI; OIL SEAL (20X34X6)

$12.99

$

Usually ships in 3-6 days

0

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

19

Honda 94103-05000

WASHER, PLAIN (5MM) (Honda Code 1555630).

$0.99

$

In Stock, only 3 left!

0

20

Honda 94109-20000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728).

$1.99

$

In Stock, only 4 left!

0

21

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0
