F210 K1 A (F210) - Honda Tiller, Made in Japan (SN: F210-2100001 - F210-2199999) HANDLEBAR Parts Diagram

Tiller, Made in Japan

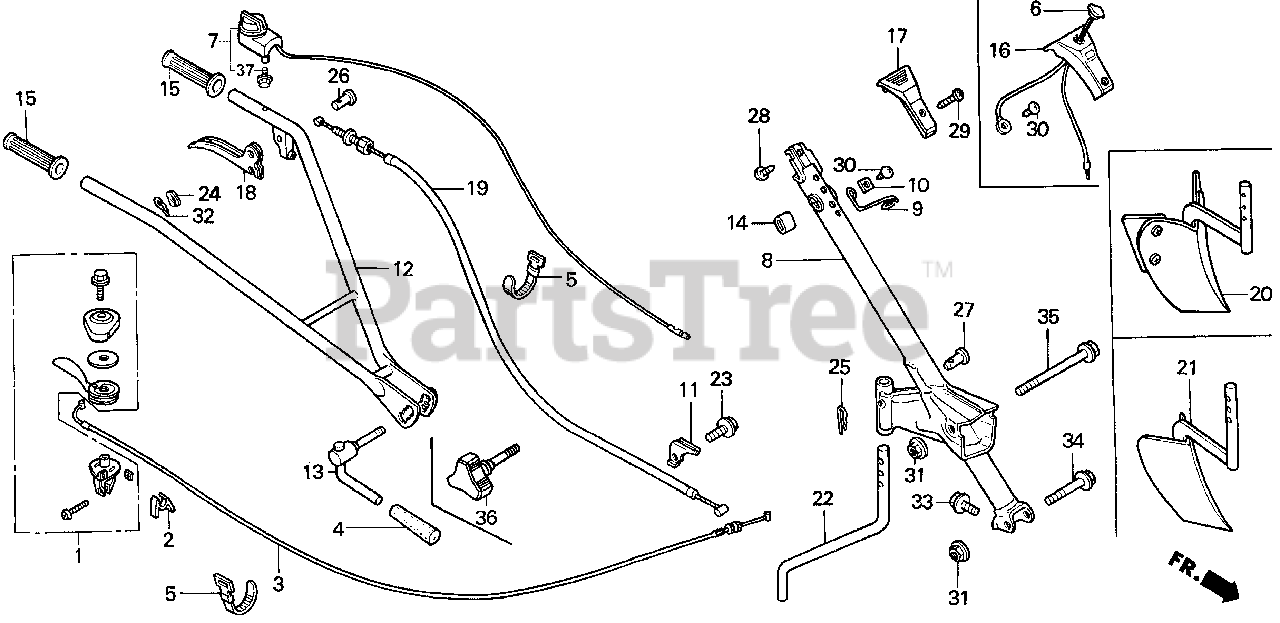

HANDLEBAR Parts Diagram

  • Title

1

Honda 17850-721-003

LEVER ASSY., THROTTLE

$34.99

$

Usually ships in 3-6 days

0

2

Honda 17851-729-003

M-CLIP (STEEL PLATE CLIP)

$4.99

$

In Stock, only 1 left!

0

3

Honda 17910-737-000

CABLE, THROTTLE

$27.99

$

Usually ships in 3-6 days

0

4

Honda 22542-900-000

GRIP, FR. CLUTCH LEVER

$6.99

$

Usually ships in 3-6 days

0

5

Honda 32161-404-000

SEE PART DETAILS - PRI; BAND B1, CABLE Use up to Frame SN 1001879.

$2.99

$

In Stock, only 4 left!

0

7

Honda 36100-737-505

SWITCH, ENGINE STOP

$

$

Not available

8

Honda 50210-729-010ZA

HOLDER, COLUMN *NH35M* (CLOUD SILVER METALLIC)

$

$

Not available

9

Honda 50275-729-000

GUIDE, CABLE

$

$

Not available

10

Honda 50276-724-000

BRACKET, CABLE GUIDE

$

$

Not available

11

Honda 51512-729-000

STOPPER, CABLE

$

$

Not available

12

Honda 53110-737-622

PIPE (UPPER)

$

$

Not available

13

Honda 53140-729-010

LEVER, HANDLE ADJUSTING

$

$

Currently unavailable

14

Honda 53145-729-000

STOPPER, ADJUSTING

$

$

Not available

15

Honda 53166-397-940

GRIP, L. HANDLE

$16.99

$

Usually ships in 3-6 days

0

17

Honda 54231-737-010ZB

SEE PART DETAILS - PRI; COVER, HANDLE *NH278* (QUARTER GRAY)

$17.99

$

Usually ships in 3-6 days

0

18

Honda 54415-729-000

LEVER, CLUTCH

$

$

Not available

19

Honda 54510-737-J00

SEE PART DETAILS - PRI; CABLE, MAIN CLUTCH

$30.99

$

In Stock, only 1 left!

0

20

Honda 72700-729-811

RIDGER ASSY., WIDE

Note: (Optional).

$57.99

$

Usually ships in 3-6 days

0

21

Honda 72710-729-810

RIDGER

Note: (Optional).

$38.99

$

Usually ships in 3-6 days

0

22

Honda 80321-729-000

BAR, DRAG

$45.99

$

Usually ships in 3-6 days

0

23

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

24

Honda 90404-723-000

WASHER, WAVE (10MM)

$2.49

$

In Stock, only 1 left!

0

25

Honda 90651-703-000

PIN, SNAP (7MM)

$1.49

$

In Stock, Qty 20+

0

26

Honda 90751-708-000

PIN (8X18)

$6.99

$

Usually ships in 3-6 days

0

27

Honda 90759-729-010

PIN (7X48)

$6.99

$

In Stock, only 3 left!

0

28

Honda 93903-25310

SCREW, TAPPING (5X16)

$0.99

$

Usually ships in 3-6 days

0

29

Honda 93903-25580

SCREW, TAPPING (5X25)

$1.49

$

In Stock, Qty 7

0

30

Honda 93903-35110

SCREW, TAPPING (5X10)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

32

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

33

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16) Use up to Frame SN 1008045.
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

33

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

34

Honda 95701-08055-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X55) (Honda Code 2774438).

$3.49

$

In Stock, only 2 left!

0

35

Honda 95701-08080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X80) (Honda Code 2533867).

$2.49

$

Usually ships in 3-6 days

0

37

Honda 90105-733-D61

BOLT (3X12) (SEMS)

$1.49

$

Usually ships in 3-6 days

0
