F210 K1 A (F210) - Honda Tiller, Made in Japan (SN: F210-2100001 - F210-2199999) CRANKSHAFT Parts Diagram

Tiller, Made in Japan

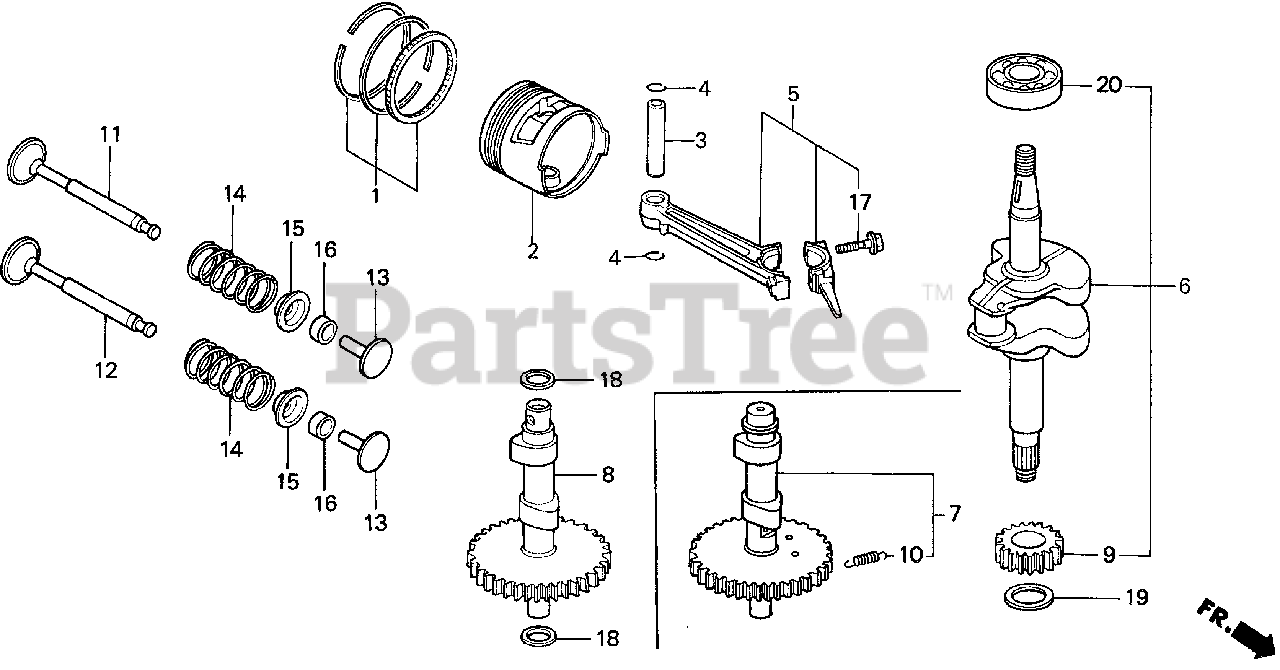

CRANKSHAFT Parts Diagram

  • Title

1

Honda 13010-ZG1-004

RING SET, PISTON (STD)

$

$

Not available

1

Honda 13011-ZG1-003

RING SET, PISTON (OVER SIZE) (0.25)

Note: (Optional).

$

$

Currently unavailable

1

Honda 13011-ZG1-004

RING SET, PISTON (OVER SIZE)

Note: (Optional).

$

$

Not available

1

Honda 13012-ZG1-004

RING SET, PISTON (OVER SIZE)

Note: (Optional).

$

$

Not available

1

Honda 13013-ZG1-003

SEE PART DETAILS - PRI; RING SET, PISTON (0.75)

Note: (Optional).

$

$

Not available

1

Honda 13013-ZG1-004

SEE PART DETAILS - SUP; RING SET, PISTON (0.75)
(Superseded to 13013-ZG1-003)

Note: (Optional).

$

$

Not available

2

Honda 13101-ZG1-003

PISTON (STD)

$

$

Not available

2

Honda 13102-ZG1-003

PISTON (OVER SIZE) (0.25)

Note: (Optional).

$

$

Not available

2

Honda 13103-ZG1-003

PISTON (OVER SIZE) (0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-ZG1-003

PISTON (OVER SIZE) (0.75)

Note: (Optional).

$

$

Not available

3

Honda 13111-892-000

PIN, PISTON

$7.49

$

Usually ships in 3-6 days

0

4

Honda 13115-147-000

CLIP, PISTON PIN (10MM)

$2.99

$

Usually ships in 3-6 days

0

5

Honda 13200-ZG0-305

ROD ASSY., CONNECTING (UNDER SIZE) Use up to Engine SN 1214439.

Note: (Optional).

$

$

Not available

5

Honda 13200-ZG0-000

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

$81.99

$

Usually ships in 3-6 days

0

6

Honda 13310-ZG1-010

CRANKSHAFT

$

$

Not available

8

Honda 14111-ZC0-000

SEE PART DETAILS - PRI; CAMSHAFT

$

$

Not available

8

Honda 14111-ZG0-000

CAMSHAFT
(Superseded to 14111-ZC0-000)

Note: Use up to Engine SN 2485630.

$

$

Not available

9

Honda 14311-ZG0-300

GEAR, TIMING

$

$

Not available

11

Honda 14711-ZG1-000

VALVE, IN.

$35.99

$

Usually ships in 3-6 days

0

12

Honda 14721-ZG1-H10

VALVE, EX.

$37.99

$

Usually ships in 3-6 days

0

12

Honda 14721-ZG1-000

VALVE, EX.

$37.99

$

Usually ships in 3-6 days

0

13

Honda 14732-ZA8-000

SEE PART DETAILS - PRI; LIFTER, VALVE

$19.99

$

Usually ships in 3-6 days

0

14

Honda 14751-896-000

SPRING, VALVE

$4.49

$

In Stock, only 1 left!

0

15

Honda 14771-ZG0-000

RETAINER, VALVE SPRING

$5.49

$

Usually ships in 3-6 days

0

16

Honda 14801-892-000

ADJUSTER, TAPPET CLEARANCE (3.15)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

16

Honda 14803-892-000

ADJUSTER, TAPPET CLEARANCE (3.25)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

16

Honda 14806-892-000

ADJUSTER, TAPPET CLEARANCE (3.34)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

16

Honda 14809-892-000

ADJUSTER, TAPPET CLEARANCE (3.43)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

16

Honda 14812-892-000

ADJUSTER, TAPPET CLEARANCE (3.52)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

16

Honda 14815-892-000

ADJUSTER, TAPPET CLEARANCE (3.61)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

16

Honda 14818-892-000

ADJUSTER, TAPPET CLEARANCE (3.72)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

16

Honda 14820-892-000

ADJUSTER, TAPPET CLEARANCE (3.82)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

17

Honda 90001-ZG0-000

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90452-ZG0-000

SEE PART DETAILS - PRI; WASHER (12MM)

$

$

Not available

19

Honda 90454-428-000

SEE PART DETAILS - PRI; WASHER, THRUST (20X1.00)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 96100-62030-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203) (Honda Code 0722199).

$11.99

$

Usually ships in 3-6 days

0
