F210 A (F210) - Honda Tiller, Made in Japan (SN: F210-2000001 - F210-2099999) ROTOR TINE Parts Diagram

Tiller, Made in Japan

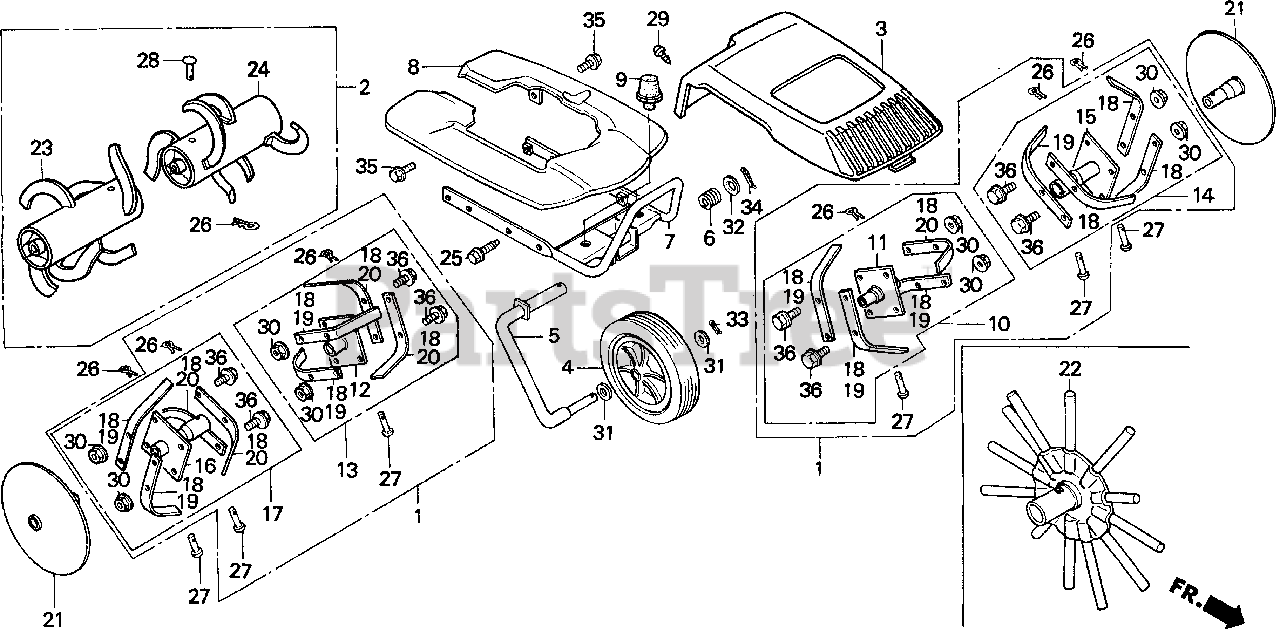

ROTOR TINE Parts Diagram

  • Title

1

Honda 06721-729-305ZA

ROTOR KIT *NH1* (BLACK)

Note: (Optional).

$291.99

$

Usually ships in 3-6 days

0

2

Honda 06730-729-811

ROTOR KIT, DRUM (N/A: SEE COMPONENTS)

Note: (Optional).

$

$

Currently unavailable

4

Honda 112H62-CP

SEE PART DETAILS - PRI; WHEEL (7")

$14.99

$

In Stock, only 3 left!

0

5

Honda 42820-729-670

BAR, FR. WHEEL

$93.99

$

Usually ships in 3-6 days

0

6

Honda 51112-729-670

SPRING, FR. WHEEL

$

$

Not available

7

Honda 51120-729-681

SEE PART DETAILS - PRI; PIPE, FR. GUARD

$

$

Not available

8

Honda 61110-729-720ZA

FENDER *NH31* (MCKINLEY WHITE)

$

$

Not available

9

Honda 61121-729-680

DAMPER, RUBBER

$

$

Currently unavailable

10

Honda 72110-729-670ZA

PIPE, L. MAIN *NH1* (BLACK)

$116.99

$

Usually ships in 3-6 days

0

11

Honda 72111-729-305

PIPE, L. ROTOR MAIN

Note: (Optional).

$61.99

$

Usually ships in 3-6 days

0

12

Honda 72112-729-305

PIPE, R. ROTOR MAIN

Note: (Optional).

$61.99

$

Usually ships in 3-6 days

0

13

Honda 72120-729-670ZA

PIPE, R. MAIN *NH1* (BLACK)

$116.99

$

Usually ships in 3-6 days

0

14

Honda 72210-729-670ZA

PIPE, L. EXTENSION *NH1* (BLACK)

$81.99

$

Usually ships in 3-6 days

0

14

Honda 72210-737-E80ZA

PIPE, R. EXTENSION *NH1* (BLACK) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

15

Honda 72211-729-305

PIPE, L. ROTOR EXTENSION

Note: (Optional).

$49.99

$

Usually ships in 3-6 days

0

16

Honda 72212-729-305

PIPE, R. ROTOR EXTENSION

Note: (Optional).

$49.99

$

Usually ships in 3-6 days

0

17

Honda 72220-729-670ZA

PIPE, R. EXTENSION *NH1* (BLACK)

$81.99

$

Usually ships in 3-6 days

0

18

Honda 72461-729-315

TINE A, ROTOR

$16.99

$

Usually ships in 3-6 days

0

21

Honda 72510-729-620ZA

DISK, SIDE *NH1* (BLACK)

$

$

Not available

22

Honda 72610-729-810

ROTOR, PICK-UP

Note: (Optional).

$44.99

$

Usually ships in 3-6 days

0

23

Honda 72310-737-811

ROTOR, R. DRUM

Note: (Optional).

$81.99

$

Usually ships in 3-6 days

0

24

Honda 72320-737-811

ROTOR, L. DRUM

Note: (Optional).

$73.99

$

Usually ships in 3-6 days

0

25

Honda 90029-888-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 0747733).

$3.49

$

Usually ships in 3-6 days

0

26

Honda 90651-703-000

PIN, SNAP (7MM)

$1.99

$

In Stock, Qty 20+

0

27

Honda 90757-729-000

PIN, WHEEL (8X35)

$7.49

$

In Stock, only 4 left!

0

28

Honda 90757-729-810

PIN, DRUM ROTOR (8X100)

Note: (Optional).

$14.99

$

Usually ships in 3-6 days

0

30

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

31

Honda 94101-12000

WASHER, PLAIN (12MM)

$1.99

$

In Stock, Qty 5

0

32

Honda 94102-18000

WASHER, PLAIN (18MM)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45) (Honda Code 0058453).

$1.49

$

Usually ships in 3-6 days

0

34

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45) (Honda Code 0058453).

$1.49

$

Usually ships in 3-6 days

0

35

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

36

Honda 95701-08018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X18) Use from Frame SN 1256673.

$2.49

$

Usually ships in 3-6 days

0
