F200 A (F200) - Honda Tiller, Made in Japan (SN: F200-2000003 - F200-9999999) OIL PAN + GOVERNOR WEIGHT HOLDER Parts Diagram

Tiller, Made in Japan

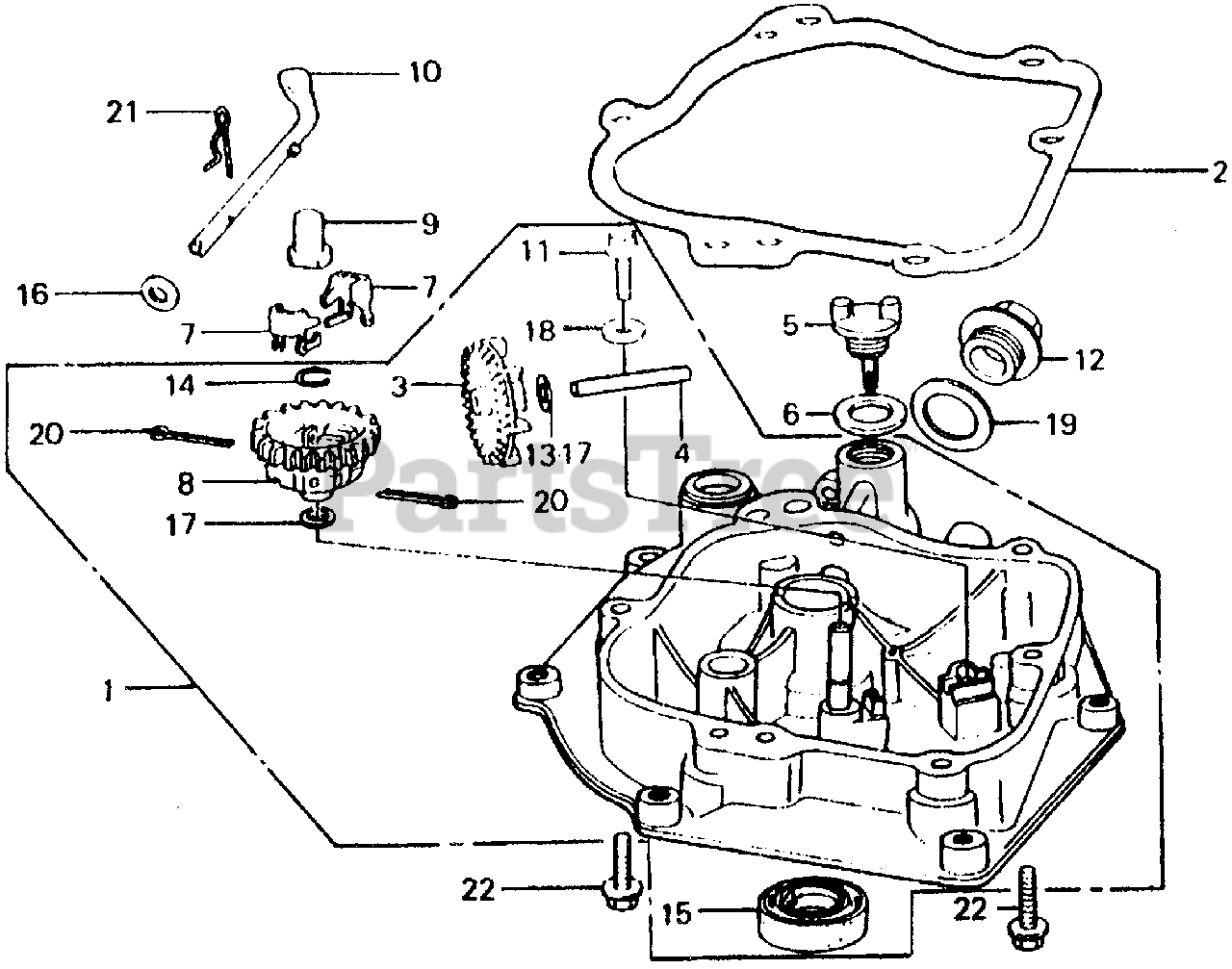

OIL PAN + GOVERNOR WEIGHT HOLDER Parts Diagram

  • Title

1

Honda 113B0-896-751

PAN ASSY., OIL

Note: Use from Engine SN 1063019.

$

$

Not available

1

Honda 113B0-896-751

PAN ASSY., OIL

$

$

Not available

1

Honda 11300-896-751

PAN ASSY., OIL

Note: Use up to Engine SN 1063018.

$

$

Not available

2

Honda 11381-896-306

GASKET, CASE COVER

$

$

Not available

3

Honda 15331-896-701

SLINGER, OIL

$12.99

$

Usually ships in 3-6 days

0

4

Honda 15332-896-700

SHAFT, OIL SLINGER

$

$

Not available

5

Honda 15620-896-750

CAP, OIL FILLER (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 15621-896-010

GASKET, OIL FILLER CAP

$5.99

$

In Stock, Qty 5

0

7

Honda 16511-896-000

WEIGHT, GOVERNOR

$2.99

$

In Stock, only 3 left!

0

8

Honda 16512-ZG0-000

HOLDER, GOVERNOR WEIGHT

Note: Use from Engine SN 1443596.

$15.99

$

Usually ships in 3-6 days

0

8

Honda 16512-896-300

HOLDER, GOVERNOR WEIGHT (NOT AVAILABLE)

Note: Use up to Engine SN 1443595.

$

$

Not available

9

Honda 16531-ZG0-000

SLIDER, GOVERNOR

Note: Use from Engine SN 1443596.

$4.99

$

Usually ships in 3-6 days

0

9

Honda 16531-896-000

SLIDER, GOVERNOR
(Superseded to 16531-ZG0-000)

Note: Use up to Engine SN 1443595.

$4.99

$

Usually ships in 3-6 days

0

10

Honda 16541-896-000

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

$10.99

$

Usually ships in 3-6 days

0

11

Honda 90005-896-000

BOLT, FLANGE (5X16)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 92800-20000

BOLT, DRAIN PLUG (20MM)

$7.49

$

Usually ships in 3-6 days

0

13

Honda 90539-836-000

WASHER (6MM)

Note: Use from Engine SN 1018056.

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

14

Honda 90602-896-000

SEE PART DETAILS - SUP; CLIP, GOVERNOR HOLDER

$1.99

$

Usually ships in 3-6 days

0

15

Honda 91201-896-701

SEE PART DETAILS - PRI; OIL SEAL (20X34X6)

$13.99

$

Usually ships in 3-6 days

0

16

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

Note: Use up to Engine SN 1018055.

$0.99

$

In Stock, Qty 20+

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

Note: Use from Engine SN 1018056.

$0.99

$

In Stock, Qty 20+

0

18

Honda 94103-05800

WASHER, PLAIN (5MM)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, only 3 left!

0

20

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

Note: Use from Engine SN 1443596.

$2.49

$

Usually ships in 3-6 days

0

20

Honda 94201-25280

PIN, COTTER (2.5X28)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 9

0

22

Honda 95701-06028-08

BOLT, FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0
