F200 A (F200) - Honda Tiller, Made in Japan (SN: F200-2000003 - F200-9999999) FUEL TANK + FUEL VALVE Parts Diagram

Tiller, Made in Japan

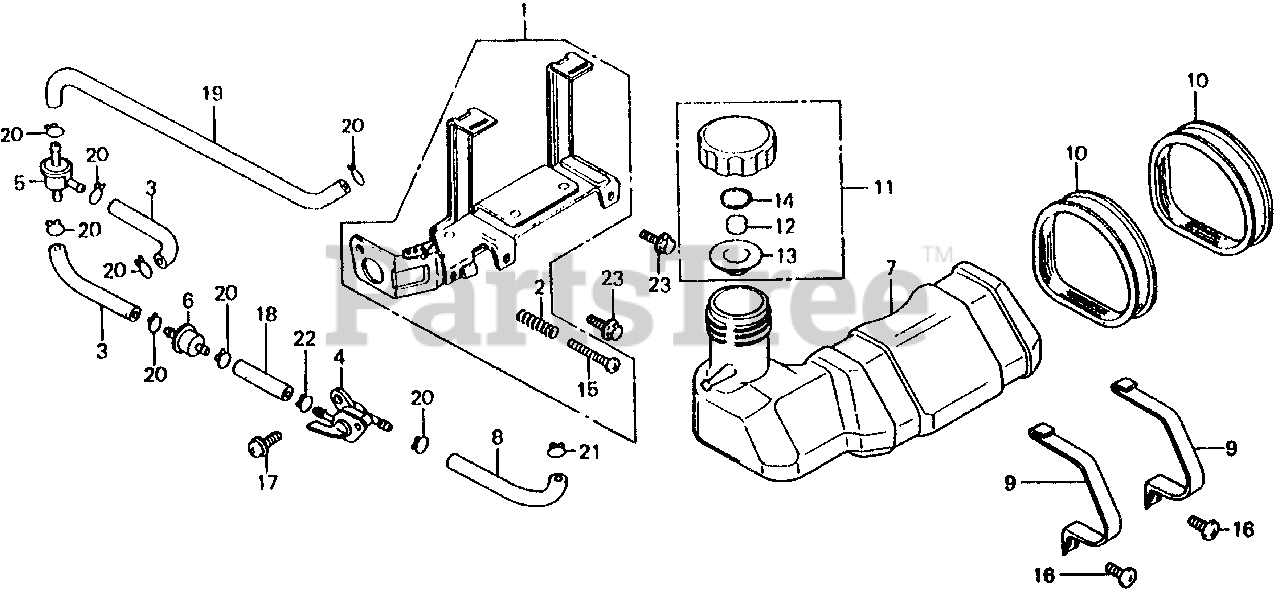

FUEL TANK + FUEL VALVE Parts Diagram

  • Title

1

Honda 16570-896-750

STAY ASSY., TANK

$

$

Not available

2

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

3

Honda 16851-896-752

TUBE, SPECIAL FUEL

$

$

Not available

4

Honda 16950-888-015

PETCOCK ASSY.

$

$

Not available

5

Honda 16952-896-751

FILTER, FUEL THREE-WAY

$

$

Not available

6

Honda 16952-952-003

FILTER, FUEL

$16.99

$

Usually ships in 3-6 days

0

7

Honda 17511-896-750

TANK, FUEL (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 17512-896-700

TUBE, FUEL (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 17518-896-750

BAND, TANK MOUNTING (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 17519-896-750

RUBBER, TANK MOUNTING

$

$

Currently unavailable

11

Honda 17620-888-020

SEE PART DETAILS - PRI; CAP, FUEL TANK

$

$

Not available

12

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 4 left!

0

13

Honda 17624-896-750

SEE PART DETAILS - PRI; GASKET, FUEL CAP

$

$

Not available

14

Honda 17626-896-750

SEPARATOR, FUEL CAP

$

$

Not available

15

Honda 93500-05028-0A

SCREW, PAN (5X28)

$1.49

$

In Stock, Qty 5

0

16

Honda 93500-06012-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X12)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 93891-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 2 left!

0

18

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X50)

$54.99

$

In Stock, only 4 left!

0

19

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X330)

$54.99

$

In Stock, only 4 left!

0

20

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0

21

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 20+

0

22

Honda 95002-50000

CLIP, TUBE (C9)

$1.99

$

In Stock, Qty 20+

0

23

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0
