F200 A (F200) - Honda Tiller, Made in Japan (SN: F200-2000003 - F200-9999999) FLYWHEEL + IGNITION COIL Parts Diagram

Tiller, Made in Japan

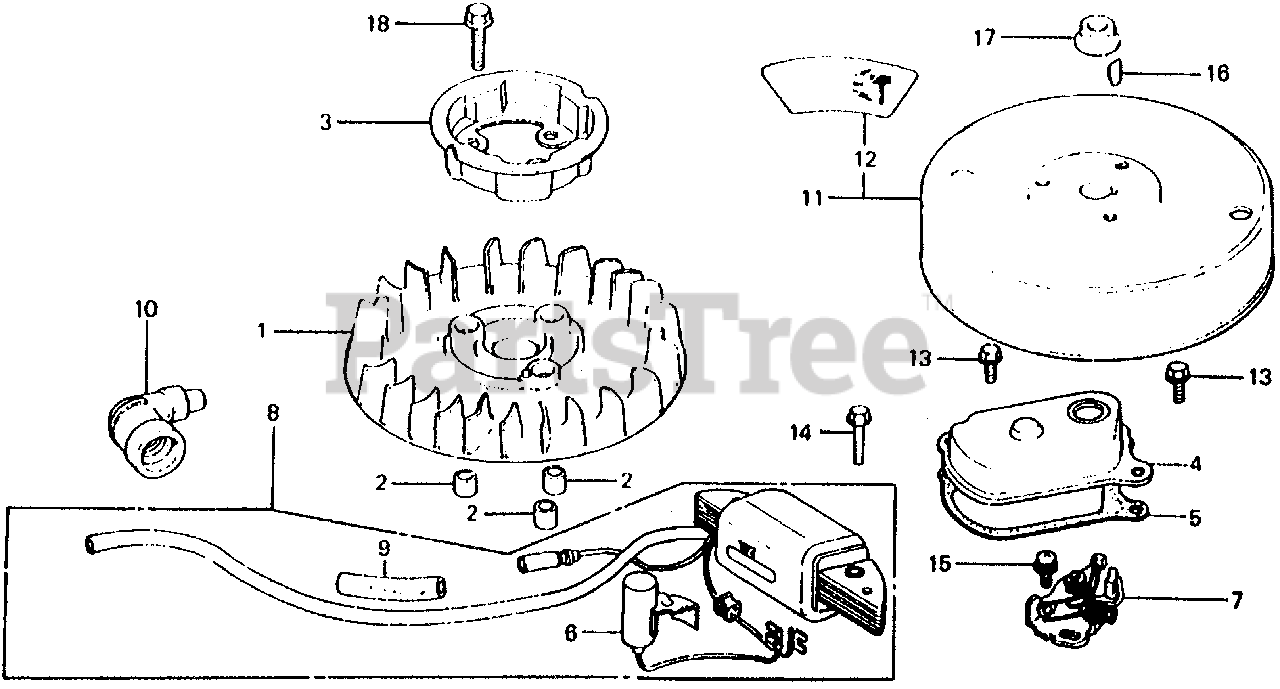

FLYWHEEL + IGNITION COIL Parts Diagram

  • Title

1

Honda 19511-896-000

FAN, COOLING

$

$

Not available

2

Honda 19512-896-000

COLLAR, FAN

$4.99

$

Usually ships in 3-6 days

0

3

Honda 28453-896-003

PULLEY, STARTER

$17.99

$

Usually ships in 3-6 days

0

4

Honda 30211-896-000

COVER, POINTS

$19.99

$

Usually ships in 3-6 days

0

5

Honda 30215-896-306

GASKET, BREAKER COVER

$5.99

$

Usually ships in 3-6 days

0

6

Honda 30251-896-003

CONDENSER (NOT AVAILABLE)

Note: Use from Engine SN 1055363.

$27.99

$

Usually ships in 3-6 days

0

7

Honda 30280-896-003

POINTS ASSY.

$30.99

$

Usually ships in 3-6 days

0

8

Honda 30560-896-711

COIL ASSY., IGNITION (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 30565-728-000

SEE PART DETAILS - PRI; TUBE, IGNITION RUBBER

$10.99

$

Usually ships in 3-6 days

0

10

Honda 30700-896-702

CAP ASSY., NOISE SUPPRESSOR

$

$

Not available

11

Honda 31100-896-711

FLYWHEEL

$

$

Currently unavailable

12

Honda 87541-896-000

MARK, FLYWHEEL CAUTION

$

$

Not available

13

Honda 90002-892-000

BOLT, FLANGE (5X10)

$1.99

$

In Stock, Qty 5

0

14

Honda 90007-896-000

BOLT, FLANGE (5X25)

$

$

Not available

15

Honda 90051-883-000

SCREW-WASHER (5X12)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90741-035-000

KEY, WOODRUFF (3MM)

$5.99

$

Usually ships in 3-6 days

0

17

Honda 94050-12080

NUT, FLANGE (12MM)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 95701-06022-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 95800-06022-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X22)

$

$

Currently unavailable
