F200 A (F200) - Honda Tiller, Made in Japan (SN: F200-2000003 - F200-9999999) FENDER + FRONT GUARD PIPE + ROTOR TINE Parts Diagram

Tiller, Made in Japan

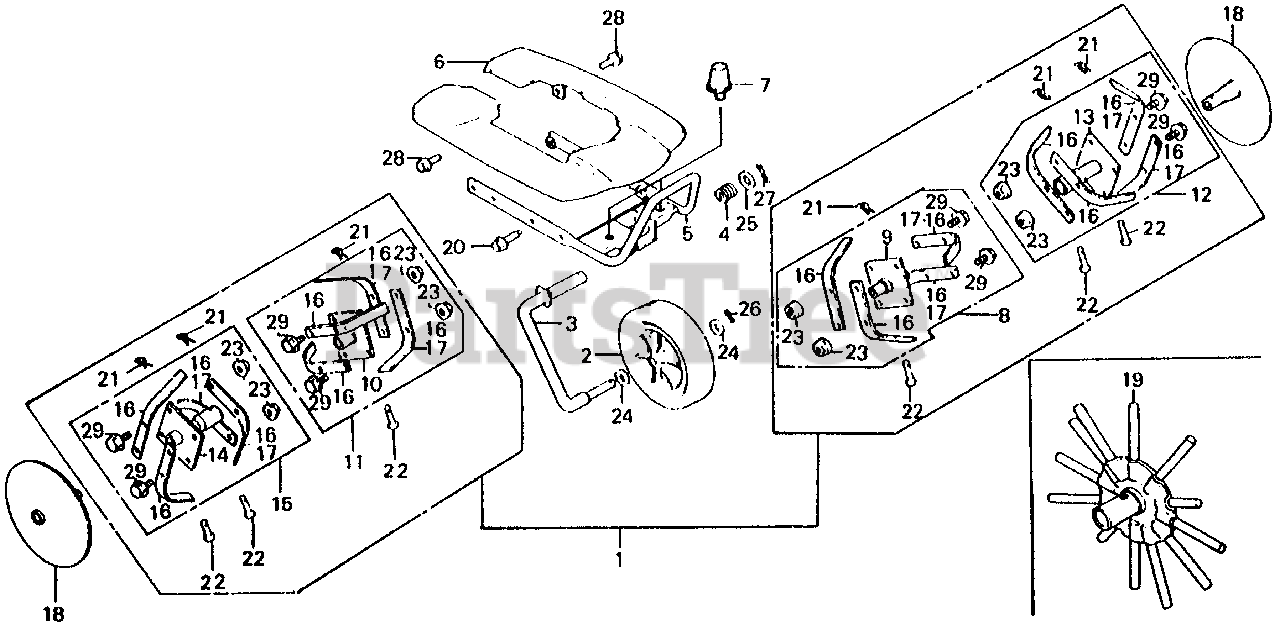

FENDER + FRONT GUARD PIPE + ROTOR TINE Parts Diagram

  • Title

1

Honda 06721-729-305ZA

ROTOR KIT *NH1*

$267.99

$

Usually ships in 3-6 days

0

2

Honda 42810-959-003

SEE PART DETAILS - SUP; WHEEL, RR. (7")
(Superseded to 112H62-CP)

$13.99

$

In Stock, only 1 left!

0

3

Honda 42820-729-670

BAR, FR. WHEEL

$85.99

$

Usually ships in 3-6 days

0

4

Honda 51112-729-670

SPRING, FR. WHEEL

$

$

Not available

5

Honda 51120-729-681ZB

SEE PART DETAILS - SUP; PIPE, FR. GUARD *NH105* (MAT BLACK)

$

$

Not available

6

Honda 61110-729-720ZA

FENDER *NH31* (MCKINLEY WHITE)

$

$

Not available

7

Honda 61121-729-680

DAMPER, RUBBER

Note: Use from Frame SN 2011208.

$

$

Currently unavailable

8

Honda 72110-729-670ZA

PIPE, L. MAIN *NH1* (BLACK)

$107.99

$

Usually ships in 3-6 days

0

9

Honda 72111-729-305

PIPE, L. ROTOR MAIN

$56.99

$

Usually ships in 3-6 days

0

10

Honda 72112-729-305

PIPE, R. ROTOR MAIN

$56.99

$

Usually ships in 3-6 days

0

11

Honda 72120-729-670ZA

PIPE, R. MAIN *NH1* (BLACK)

$107.99

$

Usually ships in 3-6 days

0

12

Honda 72210-729-670ZA

PIPE, L. EXTENSION *NH1* (BLACK)

$74.99

$

Usually ships in 3-6 days

0

13

Honda 72211-729-305

PIPE, L. ROTOR EXTENSION

$45.99

$

Usually ships in 3-6 days

0

14

Honda 72212-729-305

PIPE, R. ROTOR EXTENSION

$45.99

$

Usually ships in 3-6 days

0

15

Honda 72220-729-670ZA

PIPE, R. EXTENSION *NH1* (BLACK)

$74.99

$

Usually ships in 3-6 days

0

16

Honda 72461-729-315

TINE A, ROTOR

Note: Use up to Frame SN 2037982.

$15.99

$

Usually ships in 3-6 days

0

16

Honda 72461-729-315

TINE A, ROTOR

Note: Use from Frame SN 2037983.

$15.99

$

Usually ships in 3-6 days

0

17

Honda 72461-729-315

TINE A, ROTOR

Note: Use up to Frame SN 2037982.

$15.99

$

Usually ships in 3-6 days

0

18

Honda 72510-729-620ZA

DISK, SIDE *NH1* (BLACK)

$

$

Not available

19

Honda 72610-729-810

ROTOR, PICK-UP

$44.99

$

Usually ships in 3-6 days

0

20

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use up to Frame SN 2004508.

$1.99

$

In Stock, Qty 20+

0

20

Honda 90029-888-000

BOLT, FLANGE (6X16)

Note: Use from Frame SN 2004509.

$2.99

$

Usually ships in 3-6 days

0

21

Honda 90651-703-000

PIN, SNAP (7MM)

$1.49

$

In Stock, Qty 20+

0

22

Honda 90757-729-000

PIN, WHEEL (8X35)

$6.99

$

In Stock, Qty 13

0

23

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

24

Honda 94101-12000

WASHER, PLAIN (12MM)

$1.99

$

In Stock, Qty 5

0

25

Honda 94102-18000

WASHER, PLAIN (18MM)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 20+

0

27

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 20+

0

28

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

28

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

29

Honda 95700-08020-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X20)
(Superseded to 95701-08020-00)

$2.49

$

In Stock, only 1 left!

0

29

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 1 left!

0
