F200 A (F200) - Honda Tiller, Made in Japan (SN: F200-2000003 - F200-9999999) FAN COVER + SHROUD Parts Diagram

Tiller, Made in Japan

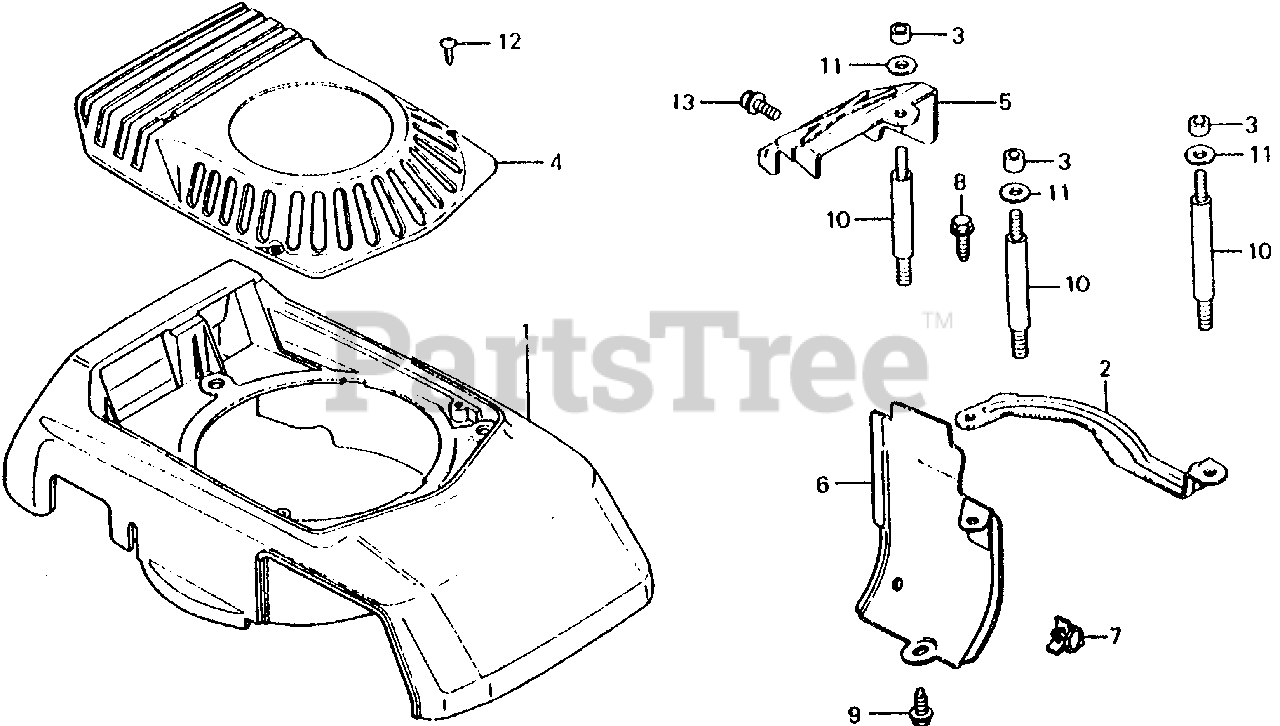

FAN COVER + SHROUD Parts Diagram

  • Title

1

Honda 19610-896-750H

SEE PART DETAILS - PRI; COVER, FAN *R8* (BRIGHT RED)

$

$

Not available

2

Honda 19611-896-750

PLATE, SIDE

Note: Use up to Engine SN 1024959.

$

$

Not available

2

Honda 19611-896-760

PLATE, SIDE

Note: Use from Engine SN 1024960.

$

$

Not available

3

Honda 19612-896-750

COLLAR, FAN COVER

$

$

Not available

4

Honda 19615-896-750XC

HOOD, FAN COVER *NH31* (MCKINLEY WHITE)

$

$

Currently unavailable

5

Honda 19617-896-750

PLATE, GUIDE

$

$

Not available

6

Honda 19631-896-750

SHROUD

$

$

Not available

7

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

8

Honda 90003-892-000

BOLT, FLANGE (5X12)

$1.99

$

In Stock, only 1 left!

0

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

10

Honda 90042-896-751

BOLT, SPECIAL STUD

Note: Use up to Engine SN 1034037.

$

$

Currently unavailable

10

Honda 90042-896-752

BOLT, SPECIAL STUD (NOT AVAILABLE)

Note: Use from Engine SN 1034038.

$

$

Currently unavailable

11

Honda 90402-921-000

WASHER (6MM)

Note: Use up to Engine SN 1034037.

$

$

Not available

11

Honda 94103-05800

WASHER, PLAIN (5MM)

Note: Use from Engine SN 1034038.

$1.49

$

Usually ships in 3-6 days

0

12

Honda 93901-34310

SCREW, TAPPING (4X12)

Note: Use from Engine SN 1106145.

$1.49

$

Usually ships in 3-6 days

0

12

Honda 93901-34380

SCREW, TAPPING (4X12)

Note: Use up to Engine SN 1106144.

$1.49

$

Usually ships in 3-6 days

0

13

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

13

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0
