F200 A (F200) - Honda Tiller, Made in Japan (SN: F200-2000003 - F200-9999999) CARBURETOR + GOVERNOR ARM Parts Diagram

Tiller, Made in Japan

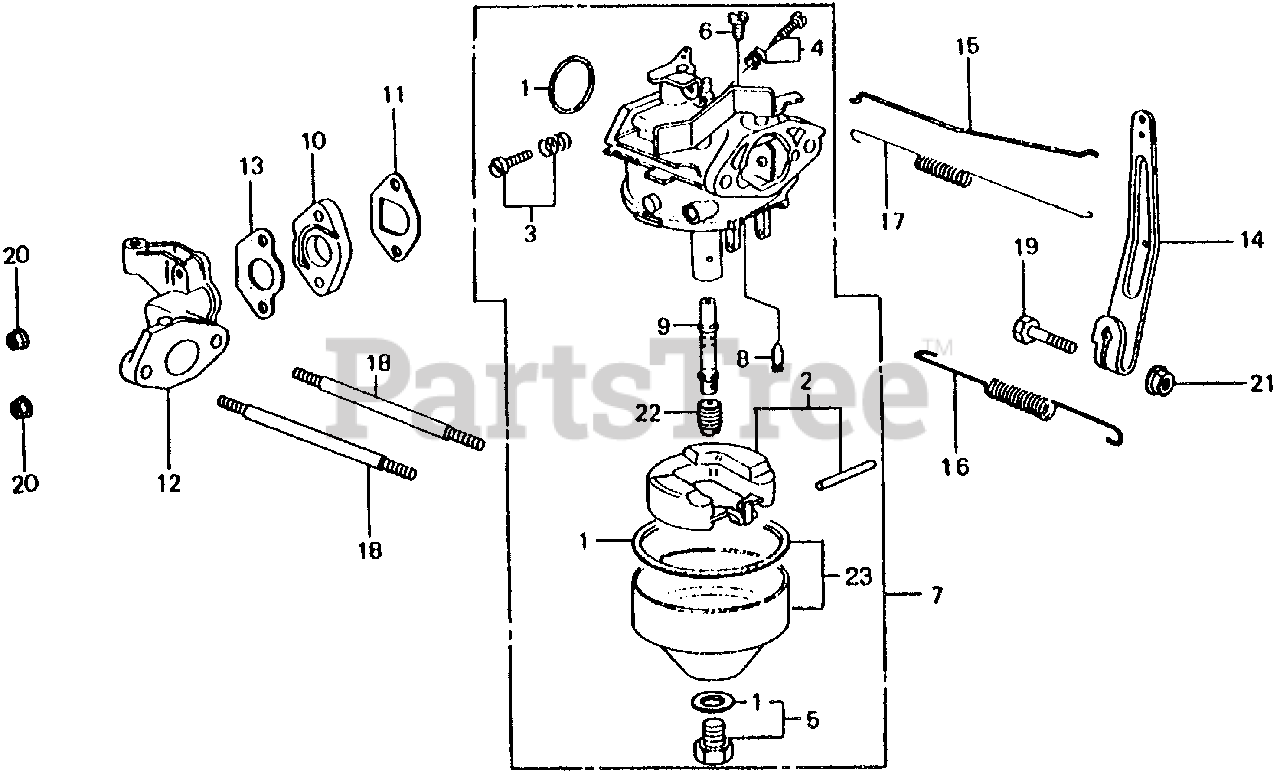

CARBURETOR + GOVERNOR ARM Parts Diagram

  • Title

1

Honda 16010-896-005

SEE PART DETAILS - SUP; GASKET SET
(Superseded to 16010-896-015)

$27.99

$

In Stock, only 1 left!

0

1

Honda 16010-896-015

SEE PART DETAILS - SUP; GASKET SET
(Superseded to 16010-892-505)

$27.99

$

In Stock, only 1 left!

0

2

Honda 16013-883-005

FLOAT SET

$41.99

$

In Stock, only 2 left!

0

3

Honda 16016-YA1-801

SEE PART DETAILS - PRI; SCREW SET A

$20.99

$

In Stock, only 1 left!

0

4

Honda 16016-896-751

SCREW SET A

$

$

Currently unavailable

5

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

$14.99

$

In Stock, Qty 8

0

6

Honda 16071-881-003

SCREW, PLUG

$

$

Currently unavailable

7

Honda 16100-896-405

CARBURETOR ASSY.

$114.99

$

Usually ships in 3-6 days

0

8

Honda 16155-883-005

VALVE, FLOAT

$28.99

$

Usually ships in 3-6 days

0

9

Honda 16166-896-005

NOZZLE, MAIN (NOT AVAILABLE)

Note: Use up to Engine SN BB09B A.

$

$

Currently unavailable

9

Honda 16166-896-751

NOZZLE, MAIN (NOT AVAILABLE)

Note: Use from Engine SN BB09B B.

$

$

Currently unavailable

10

Honda 16211-896-306

INSULATOR, CARBURETOR

$

$

Not available

11

Honda 16212-896-306

GASKET, INSULATOR

$

$

Not available

12

Honda 16224-896-751

MANIFOLD, IN. (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 16226-896-750

GASKET, IN. MANIFOLD (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 16551-896-750

ARM, GOVERNOR

$

$

Not available

15

Honda 16555-896-751

ROD, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 16561-896-750

SPRING, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 16562-896-750

SPRING, THROTTLE RETURN

$

$

Not available

18

Honda 90045-896-750

BOLT, STUD (5X91)

Note: Use up to Engine SN 1281469.

$

$

Not available

19

Honda 92101-06020-0A

BOLT, HEX. (6X20)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94050-05080

NUT, FLANGE (5MM)

Note: Use up to Engine SN 1281469.

$0.99

$

In Stock, only 4 left!

0

21

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

22

Honda 99101-124-0450

JET, MAIN (#45)

$13.99

$

Usually ships in 3-6 days

0

22

Honda 99101-124-0480

JET, MAIN (#48)

$13.99

$

Usually ships in 3-6 days

0

22

Honda 99101-124-0500

JET, MAIN (#50)

$13.99

$

Usually ships in 3-6 days

0

22

Honda 99101-124-0520

JET, MAIN (#52)

$13.99

$

Usually ships in 3-6 days

0

22

Honda 99101-124-0550

JET, MAIN (#55)

$12.99

$

In Stock, only 3 left!

0

23

Honda 16015-896-702

CHAMBER SET, FLOAT

$27.99

$

Usually ships in 3-6 days

0
