F200 A (F200) - Honda Tiller, Made in Japan (SN: F200-2000003 - F200-9999999) AIR CLEANER Parts Diagram

Tiller, Made in Japan

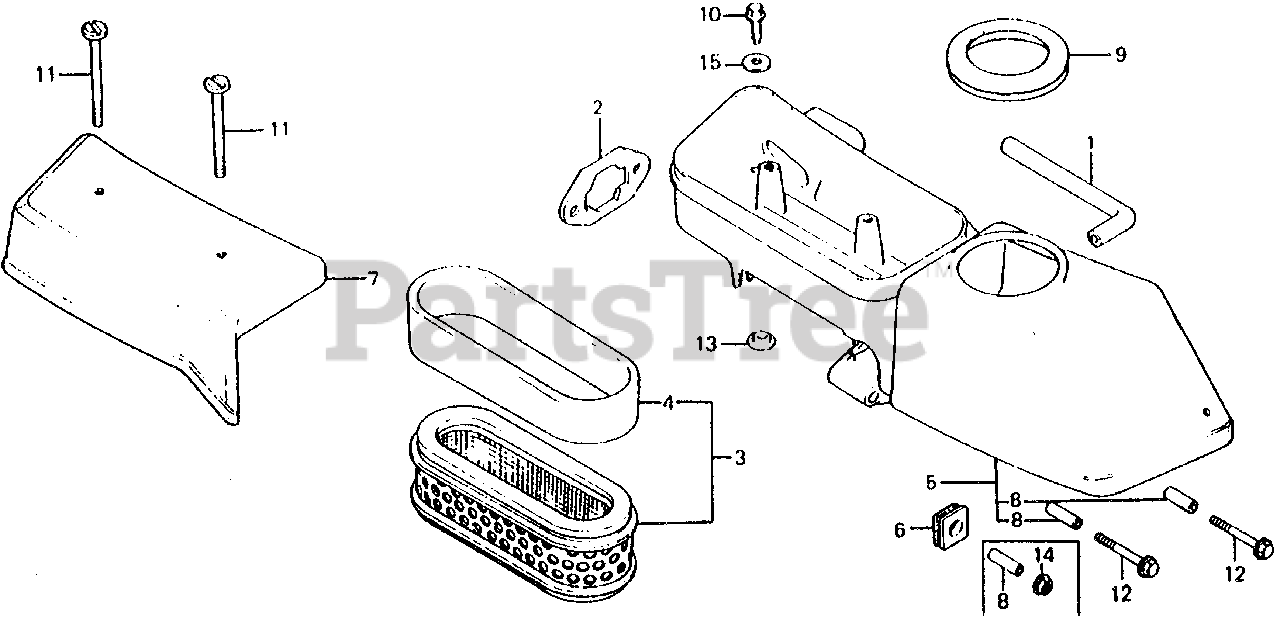

AIR CLEANER Parts Diagram

  • Title

1

Honda 15721-896-750

TUBE, BREATHER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 16269-896-306

GASKET, AIR CLEANER

$

$

Not available

3

Honda 17210-896-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER
(Superseded to 17210-896-305)

$38.99

$

In Stock, only 1 left!

0

3

Honda 17211-896-751

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-896-505)

$38.99

$

In Stock, only 1 left!

0

4

Honda 17218-896-505

SEE PART DETAILS - PRI; FILTER (OUTER)
(Superseded to 17218-896-305)

$5.99

$

In Stock, only 1 left!

0

5

Honda 17220-896-750

HOUSING, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 17225-896-750

GROMMET, AIR CLEANER HOUSING

$

$

Not available

7

Honda 17231-896-750

COVER, AIR CLEANER

$

$

Not available

8

Honda 17233-896-750

COLLAR, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 17514-896-750

SEAL, FILLER NECK

$

$

Not available

10

Honda 90012-892-000

BOLT, FLANGE (5X16)

$1.99

$

In Stock, only 4 left!

0

11

Honda 90028-896-750

BOLT, AIR CLEANER COVER

Note: Use up to Engine SN 1273839.

$

$

Currently unavailable

11

Honda 90028-896-752

BOLT, AIR CLEANER COVER (NOT AVAILABLE)

Note: Use from Engine SN 1273840.

$

$

Not available

12

Honda 90101-729-010

BOLT, FLANGE (5X83)

Note: Use from Engine SN 1281470.

$

$

Not available

13

Honda 90522-170-700

COLLAR, GEARSHIFT LEVER SETTING

$2.49

$

Usually ships in 3-6 days

0

14

Honda 94050-05080

NUT, FLANGE (5MM)

Note: Use up to Engine SN 1281469.

$0.99

$

In Stock, Qty 10

0

15

Honda 94103-05800

WASHER, PLAIN (5MM)

$1.49

$

Usually ships in 3-6 days

0
