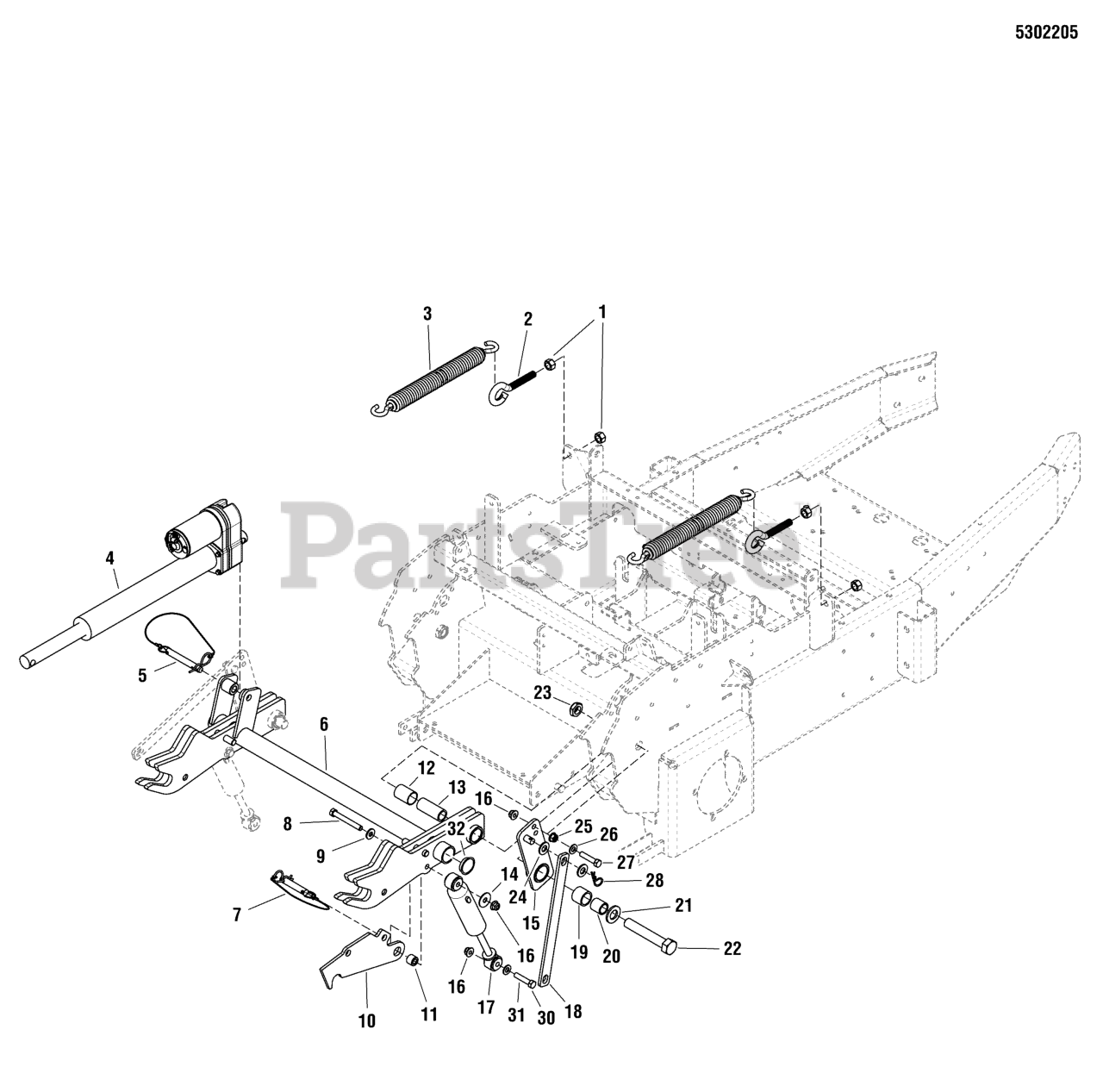

F 800X (5900911) - Ferris F800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar Traction Asisst & Imp Mnt Group Parts Diagram

F800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar

Traction Asisst & Imp Mnt Group Parts Diagram

  • Title

1

Ferris 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

2

Ferris 5025263X44

EYE BOLT, 1/2-13 X 5.5, 1" EYE, CZ

$

$

Currently unavailable

3

Ferris 5023392

SPRING-EXT, 1.393ODX13.25LGX.218WR
(Superseded to 5023392YP)

$74.99

$

Usually ships in 2-12 days

0

4

Ferris 5101165

ACTUATOR, 12" STROKE
(Superseded to 5103120)

$1060.99

$

Usually ships in 2-12 days

0

5

Ferris 5023082

HITCH PIN ASSY., 1/2 X 3.50
(Superseded to 5023082SM)

$22.99

$

Usually ships in 2-12 days

0

6

Ferris 5403166B

WELD, ATTACHMENT MOUNT - RED
(Superseded to 5403166BFS)

$492.99

$

Usually ships in 2-12 days

0

7

Ferris 5100179

HITCH PIN ASSEMBLY, 1/2" X 2.50"
(Superseded to 5100179SM)

$29.99

$

Usually ships in 2-12 days

0

8

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5025337

WASHER, 5/16 USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5403262B

LATCH, FRONT FRAME - RED
(Superseded to 5403262BFS)

$24.99

$

Usually ships in 2-12 days

0

11

Ferris 5104146

SPACER, .39 X .75 X .580
(Superseded to 5104146YP)

$4.49

$

Usually ships in 2-12 days

0

12

Ferris 5022852

PIVOT BEARING-1.00 X 1.125 ODX1.50
(Superseded to 5022852SM)

$33.99

$

In Stock, Qty 18

0

13

Ferris 5047489

SPACER, .75 X 1.00 X 2.38
(Superseded to 5047489SM)

$35.99

$

In Stock, Qty 15

0

14

Ferris 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

15

Ferris 5403374B

WELD, SPRING MOUNT PIVOT - LH - RED

$

$

Currently unavailable

16

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Ferris 5101419

SHOCK ABSORBER, OUT FRONT MOWER
(Superseded to 5101419YP)

$96.99

$

Usually ships in 2-12 days

0

18

Ferris 5403261B

BAR, SPRING ASSIST LINK - RED
(Superseded to 5403261BFS)

$14.99

$

Usually ships in 2-12 days

0

19

Ferris 5101205

BUSHING, BRASS, 1.00 X 1.25 X 1.00
(Superseded to 5101205YP)

$11.99

$

Usually ships in 2-12 days

0

20

Ferris 5101238

SPACER, .76 X 1.00 X 1.06

$

$

Currently unavailable

21

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, only 3 left!

0

22

Ferris 5025265X36

BOLT, HEX HD, 3/4-16 X 4-1/2, GD5 YZ
(Superseded to 5025265X36YP)

$16.99

$

Usually ships in 2-12 days

0

23

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

24

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

25

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

26

Ferris 5025337

WASHER, 5/16 USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

27

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

28

Ferris 5025210

PIN, HAIR, .0915 X 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

29

Ferris 5403375B

WELD, SPRING MOUNT PIVOT - RH - RED

$

$

Currently unavailable

30

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

31

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0
