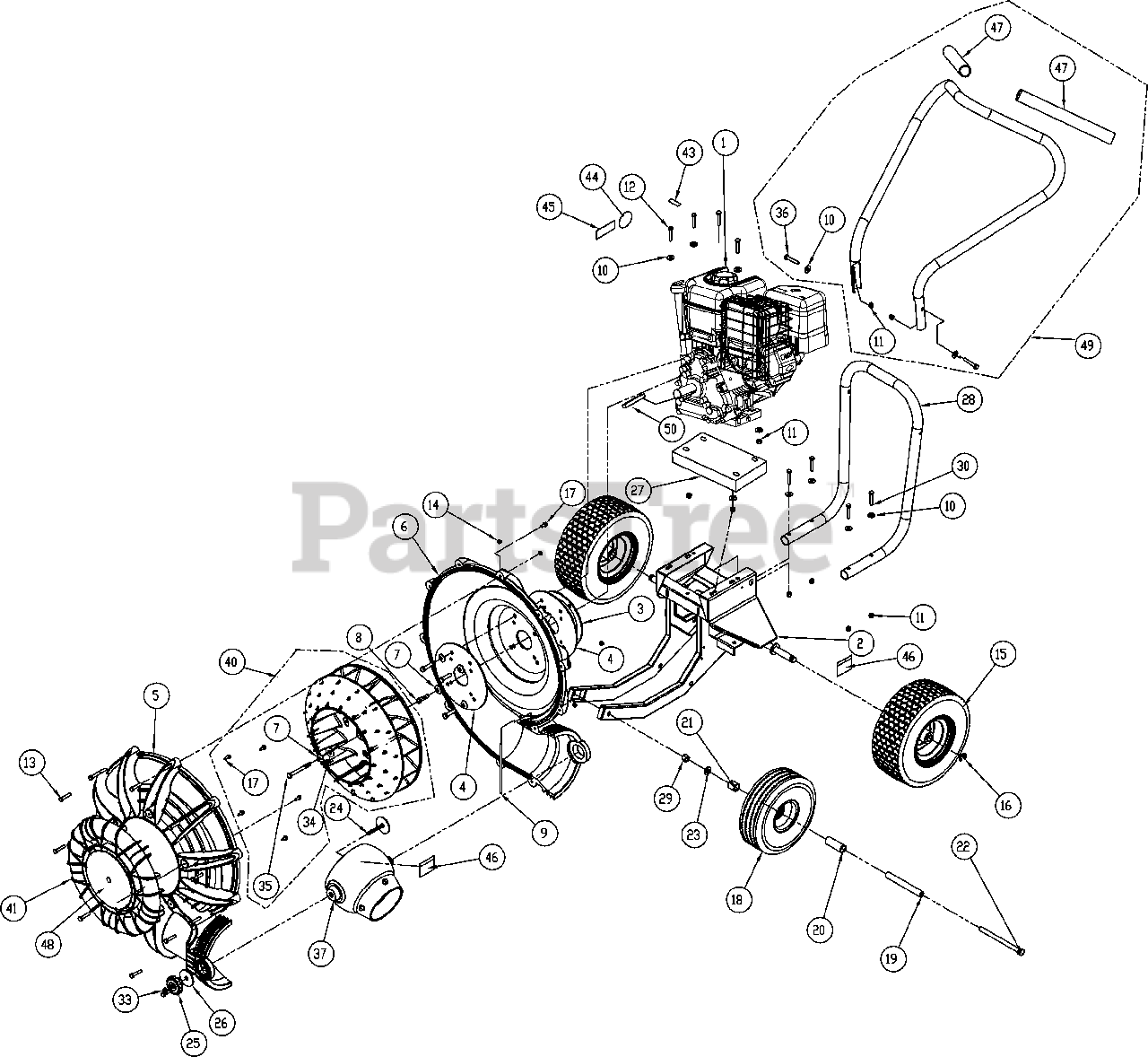

F 800 - Billy Goat Force Wheeled Blower, 8hp Briggs & Stratton Parts Assembly Parts Diagram

Force Wheeled Blower, 8hp

Parts Assembly Parts Diagram

  • Title

1

Billy Goat 440181

ENGINE 8 HP B&S

$

$

Currently unavailable

2

Billy Goat 440011

BASE ENGINE WA
(Superseded to 440333)

$471.99

$

Usually ships in 2-11 days

0

3

Billy Goat 440009

SPACER RING ENGINE

$30.99

$

Usually ships in 2-11 days

0

4

Billy Goat 440010

PLATE REINFORCE HOUSING

$

$

Currently unavailable

5

Billy Goat 440023

HOUSING FRONT MOLDED

$214.99

$

Usually ships in 2-11 days

0

6

Billy Goat 440024

HOUSING BACK MOLDED

$216.99

$

Usually ships in 2-11 days

0

7

Billy Goat 400502

WASHER LOCK 3/8 TWISTED TOOTH

$4.49

$

In Stock, only 1 left!

0

7

Billy Goat 8177013

WASHER LOCK 7/16 S/T MED

$0.99

$

In Stock, Qty 9

0

8

Billy Goat 8041052

SCREW CAP 3/8-16X1 1/2 ZP

$1.49

$

Usually ships in 2-11 days

0

9

Billy Goat 440057

ROD HAND STOP

$5.49

$

Usually ships in 2-11 days

0

10

Billy Goat 8171003

WASHER 5/16 FLATWASHER Z/P

$0.99

$

In Stock, Qty 10

0

11

Billy Goat 8160002

NYLON INSERT LOCKNUT 5/16-18

$0.99

$

In Stock, only 4 left!

0

12

Billy Goat 8041034

SCREWCAP 5/16-18 X 2.5 ZP

$0.99

$

Usually ships in 2-11 days

0

13

Billy Goat 8041008

SCREWCAP 1/4-20 x 1 1/2

$0.99

$

Usually ships in 2-11 days

0

14

Billy Goat 900455

NUT FLANGE 1/4-20

$1.49

$

Usually ships in 2-11 days

0

15

Billy Goat 440054

WHEEL & TIRE 13" X 5" PNEUMATIC

$116.99

$

In Stock, only 2 left!

0

16

Billy Goat 850230

RING RETAINING 3/4

$0.99

$

Usually ships in 2-11 days

0

17

Billy Goat 8122082

SCREW SELF-TAP 5/16 NC X 3/4 HEX

$1.49

$

Usually ships in 2-11 days

0

18

Billy Goat 400295

WHEEL ASSY 10 " PNEUMATIC

$87.99

$

In Stock, only 1 left!

0

19

Billy Goat 440050

SPACER FRONT AXLE

$12.99

$

Usually ships in 2-11 days

0

20

Billy Goat 440052

SPACER LH WHEEL

$20.99

$

Usually ships in 2-11 days

0

21

Billy Goat 440051

SPACER RH WHEEL

$9.99

$

Usually ships in 2-11 days

0

22

Billy Goat 8041235

SCREWCAP 1/2-13 x 7"

$6.49

$

Usually ships in 2-11 days

0

23

Billy Goat 8172011

WASHER FLAT 1/2" SAE

$0.99

$

In Stock, Qty 5

0

24

Billy Goat 440075

WASHER W/BOLT WA

$6.99

$

In Stock, only 1 left!

0

25

Billy Goat 811230

KNOB 3/8-16 SOLID HUB

$8.99

$

In Stock, only 2 left!

0

26

Billy Goat 610308-P

WASHER 2.25 OD x .515 ID x .134 ZP

$2.99

$

In Stock, only 1 left!

0

27

Billy Goat 430355

ENGINE SPACER

$88.99

$

Usually ships in 2-11 days

0

28

Billy Goat 440034

HANDLE LOWER

$87.99

$

Usually ships in 2-11 days

0

29

Billy Goat 8160005

NYLON INSERT LOCKNUT 1/2-13

$0.99

$

In Stock, only 1 left!

0

30

Billy Goat 8041031

SCREWCAP 5/16-18 X 1.75 ZP

$0.99

$

In Stock, only 3 left!

0

33

Billy Goat 8161042

NUT LOCK 3/8-16 LT WT THIN ZP

$0.99

$

In Stock, Qty 7

0

34

Billy Goat 440153

WASHER 1.5 O.D.X 0.45 I.D. X 0.25

$2.99

$

Usually ships in 2-11 days

0

35

Billy Goat 440150

SCREWCAP 7/16-20 X 3.5 GR.8 55-60 ft-lbs

$4.99

$

Usually ships in 2-11 days

0

36

Billy Goat 8041032

SCREWCAP 5/16"-18 X 2" ZP

$0.99

$

In Stock, Qty 6

0

37

Billy Goat 440046

DIRECTOR CONE 4"
(Superseded to 440046-S)

$80.99

$

In Stock, only 1 left!

0

40

Billy Goat 440110

IMPELLER ASSEMBLY 17"
(Superseded to 440236)

$313.99

$

In Stock, only 1 left!

0

41

Billy Goat 440112

GRILL FRONT BLOWER
(Superseded to 440067-1-S)

$80.99

$

In Stock, only 1 left!

0

43

Billy Goat 400268

LABEL HOT ENGINE
(Superseded to 100261)

$3.99

$

Usually ships in 2-11 days

0

44

Billy Goat 890301

LABEL READ
(Superseded to 100346)

$3.99

$

Usually ships in 2-11 days

0

45

Billy Goat 890254

LABEL EAR EYE BREATHING
(Superseded to 100346)

$3.99

$

Usually ships in 2-11 days

0

46

Billy Goat 810736

LABEL DANGER FLYING DEBRIS

$3.99

$

In Stock, only 2 left!

0

47

Billy Goat 440012

GRIP 1-1/4" ID x 13"
(Superseded to 440146)

$9.49

$

In Stock, only 2 left!

0

48

Billy Goat 440182

LABEL FORCE

$

$

Not available

49

Billy Goat 440185

HANDLE ASSY UPPER

$

$

Not available

50

Billy Goat 9201123

Key 1/4" SQ x 2.25

$

$

Not available
