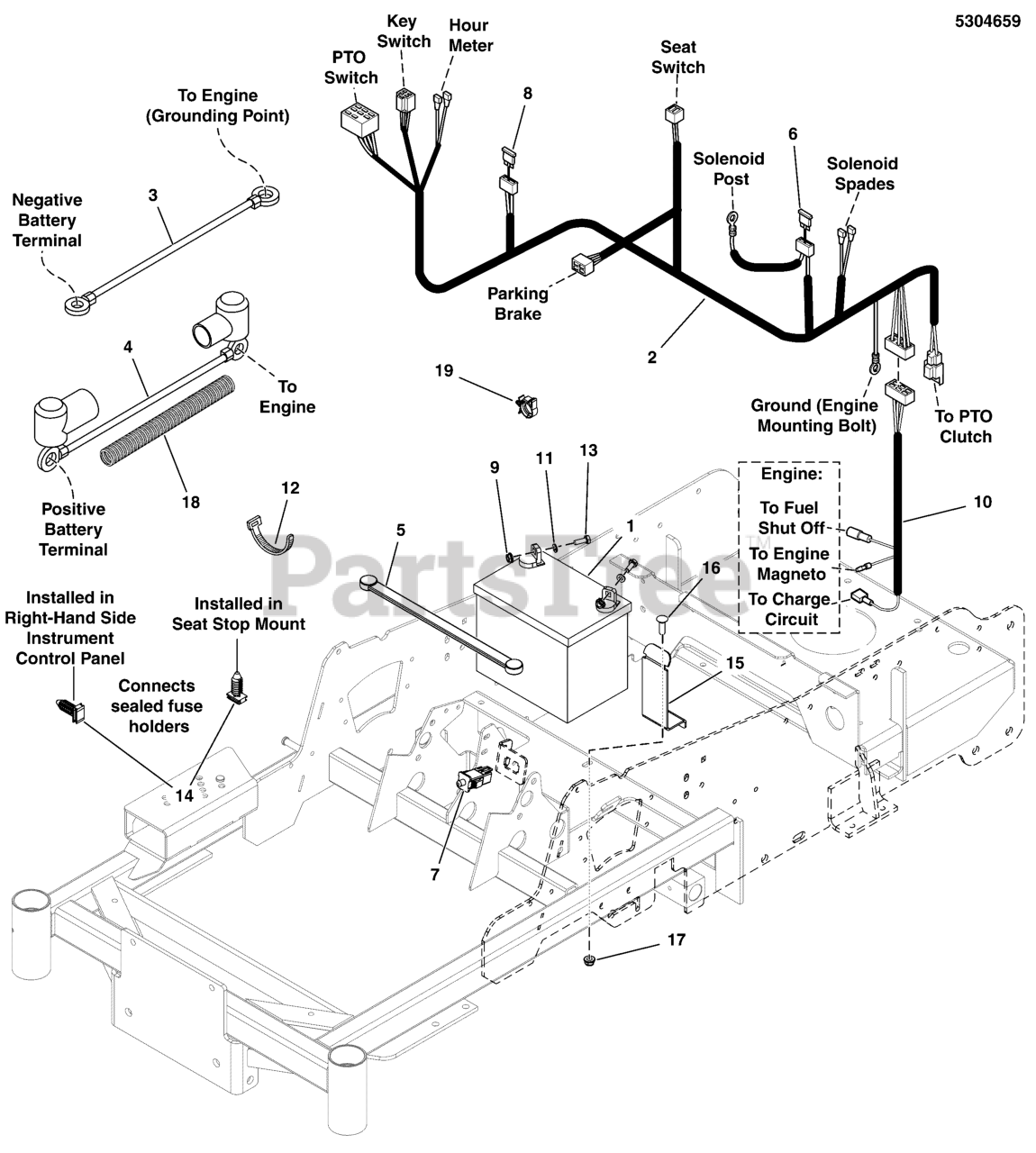

F 60Z (5901895) - Ferris F60Z Series 36" Zero-Turn Mower, 19hp Kawasaki Electrical Group - Kawasaki Parts Diagram

F60Z Series 36" Zero-Turn Mower, 19hp Kawasaki

Electrical Group - Kawasaki Parts Diagram

  • Title

1

BATTERY, 11U1L, 350 CCA

$

$

Not available

2

Ferris 5415589

WIRE HARNESS, MAIN, PROSUMER, NO NEUTRAL
(Superseded to 5415589FS)

Note: (S/N: 2017633638 & Below)

$160.99

$

Usually ships in 2-12 days

0

2

Ferris 5416016

WIRE HARNESS, MAIN, SM, ZTR

Note: (S/N: 2017633639 - 2017954955)

$176.99

$

Usually ships in 2-12 days

0

2

Ferris 5105536

HARNESS, Wiring, Small ZTR
(Superseded to 5105536YP)

Note: (S/N: 2017954956 & Above)

$198.99

$

Usually ships in 2-12 days

0

3

Ferris 5045894

BATTERY CABLE, NEG, 35, 1/4-5/16

$

$

Currently unavailable

4

Ferris 5021542

BATTERY CABLE, POS, 30, 1/4-5/16
(Superseded to 5021542SM)

$29.99

$

Usually ships in 2-12 days

0

5

Ferris 1722009

STRAP, BATTERY, 14 LONG, Rubber
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

6

Ferris 5021603

FUSE, ATO-20 (20 AMP)(SV)
(Superseded to 5021603SM)

Note: (SV)

$4.99

$

In Stock, only 2 left!

0

7

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

8

Ferris 5101935

FUSE, ATO-15 (15 AMP)(SV)
(Superseded to 5101935YP)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

10

Ferris 5104811

WIRE HARNESS, JUMPER, KAWI
(Superseded to 5104811YP)

$18.99

$

Usually ships in 2-12 days

0

11

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

12

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

13

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

14

Ferris 5103761

FIR TREE MOUNT, PACKARD
(Superseded to 5103761YP)

$5.99

$

Usually ships in 2-12 days

0

15

Ferris 5415727A

PLATE, HARNESS/BATTERY SUPPORT - BLK

$

$

Currently unavailable

16

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

17

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5050927X26

WIRE LOOM, 3/8 ID X 26 IN

$

$

Currently unavailable

19

Ferris 5104705

ROSEBUD LOOM CLIP
(Superseded to 5104705YP)

$2.49

$

Usually ships in 2-12 days

0
