F 60Z (5901689) - Ferris F60Z Series 36" Zero-Turn Mower, 25hp Briggs & Stratton, CARB Parking Brake Group Parts Diagram

F60Z Series 36" Zero-Turn Mower, 25hp Briggs & Stratton, CARB

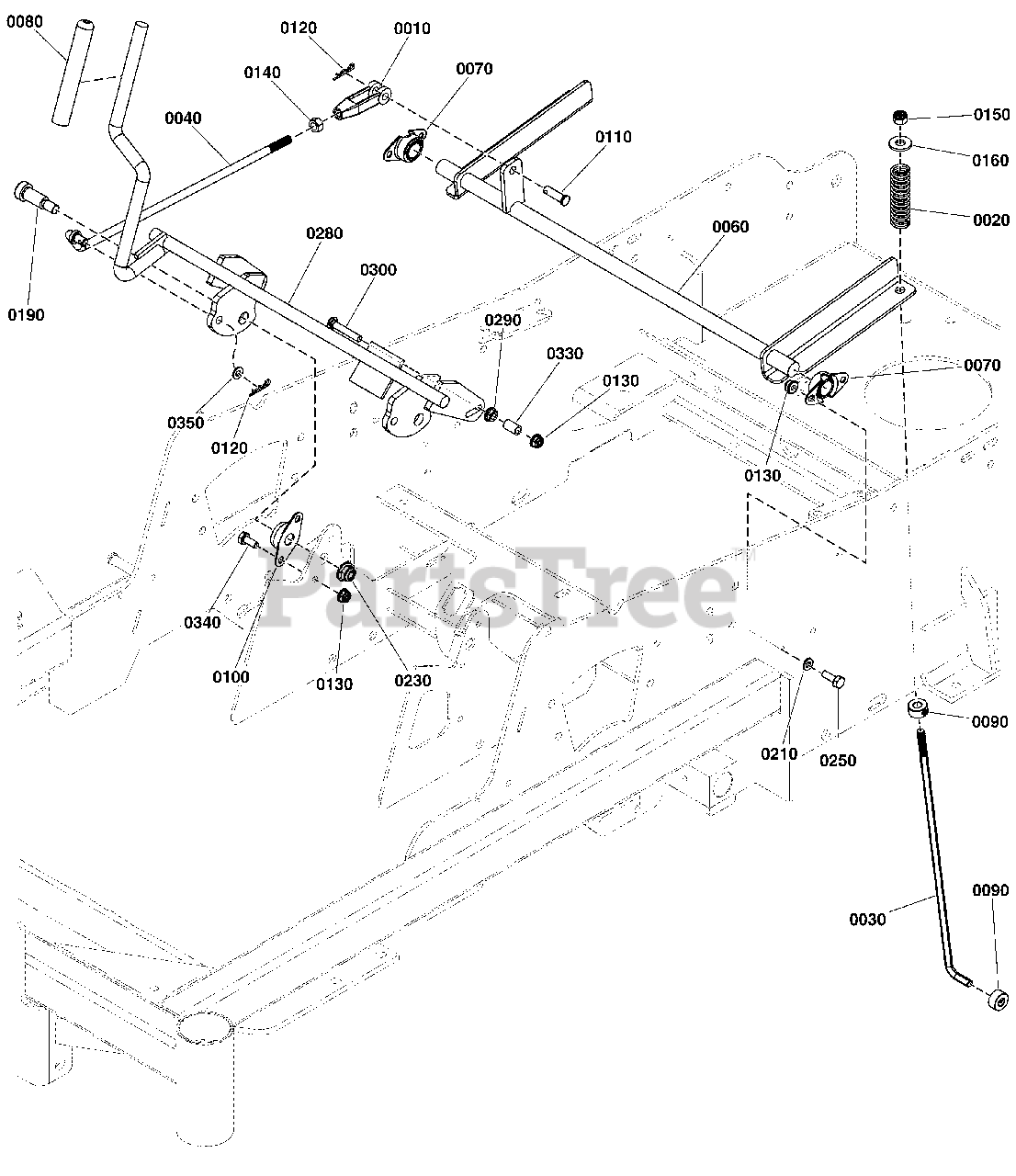

Parking Brake Group Parts Diagram

  • Title

0010

Ferris 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

0020

Ferris 5021102

SPRING-COMP, .594ID X 2.68LG X .080WR
(Superseded to 5021102SM)

$7.49

$

Usually ships in 2-12 days

0

0030

Ferris 5101058

ROD, BRAKE CTRL, LOWER - CONZ
(Superseded to 5101058SM)

$5.49

$

Usually ships in 2-12 days

0

0040

Ferris 5104641

ROD, PARKING BRAKE, W35, UPPER
(Superseded to 5104641YP)

$14.99

$

Usually ships in 2-12 days

0

0060

Ferris 5415462AYP

SHAFT, Brake

$53.99

$

Usually ships in 2-12 days

0

0070

Ferris 5104270

BEARING, 5/8" FLANGED, PLASTIC BALL
(Superseded to 5104270YP)

$4.99

$

Usually ships in 2-12 days

0

0080

Ferris 5021880

GRIP, FOAM, .475 X 4.35 X .095
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

0090

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

0100

Ferris 5101123

BEARING, 1/2 FLANGED, PLASTIC BALL
(Superseded to 5101123SM)

$5.99

$

Usually ships in 2-12 days

0

0110

Ferris 5025213X8

PIN, CLEVIS, 5/16 X 1, PLATED
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

0120

Ferris 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

0130

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0140

Ferris 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

0150

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

0160

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

0190

Ferris 5025223

Bolt, 3/8-16 - 112" Dia. x I" Shoulder
(Superseded to 5025223SM)

$7.99

$

Usually ships in 2-12 days

0

0210

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0230

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0250

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0280

Ferris 5415410AYP

LEVER, Brake

$88.99

$

Usually ships in 2-12 days

0

0290

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0300

Ferris 80003564

BOLT, 1/4-20 X 1.500, GR5, SQ, ZINC/CLEAR
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

0330

Ferris 5041483

SPACER, .52 X .38 X .63, CZ
(Superseded to 5041483YP)

$5.49

$

Usually ships in 2-12 days

0

0340

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

0350

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable
