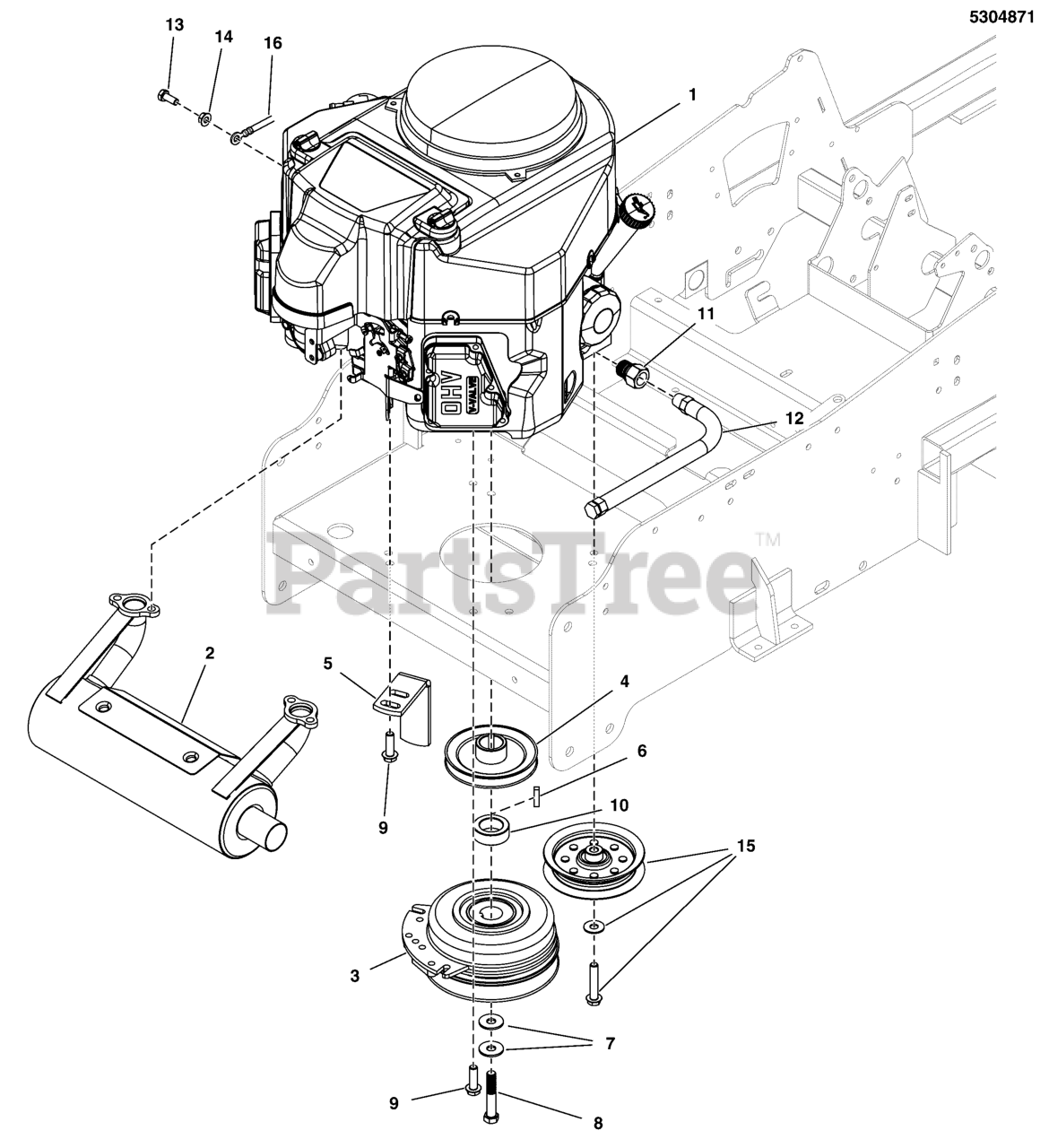

F 60Z (5901688) - Ferris F60Z Series 36" Zero-Turn Mower, 19hp Kawasaki, CARB Engine & PTO Group - Kawasaki Parts Diagram

F60Z Series 36" Zero-Turn Mower, 19hp Kawasaki, CARB

Engine & PTO Group - Kawasaki Parts Diagram

  • Title

1

Ferris FX600V-DS06-R

ENGINE, 19HP, KAWASAKI, FX600V

$

$

Currently unavailable

2

Ferris 5102109

MUFFLER, (16-20HP), KAWASAKI S50X
(Superseded to 5102109FS)

$302.99

$

Usually ships in 2-12 days

0

3

Ferris 5105087

CLUTCH, WARNER, 125 FT LBS, 1-1/8" BORE
(Superseded to 5105087YP)

$420.99

$

Usually ships in 2-12 days

0

4

Ferris 5101338

PULLEY, PUMP DRIVE, 4.857 OB X 1-1/8
(Superseded to 5101338YP)

$46.99

$

Usually ships in 2-12 days

0

5

Ferris 5404967A

ANCHOR, CLUTCH - BLK
(Superseded to 5404967AYP)

$32.99

$

Usually ships in 2-12 days

0

6

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

7

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 2 left!

0

8

Ferris 5102865

BOLT, CRANKSHAFT, 7/16 X 2-3/4, PATCH, CZ
(Superseded to 5102865YP)

$5.49

$

In Stock, only 1 left!

0

9

Ferris 5025532

BOLT, HEX FLG, SER, GD5 3/8-16 X 1-1/4" PACH CZ
(Superseded to 84003591)

$3.49

$

In Stock, only 4 left!

0

10

Ferris 5103892

SPACER, 1.13 X 1.75 X .75, CZ
(Superseded to 5103892YP)

$20.99

$

Usually ships in 2-12 days

0

11

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

12

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

13

Ferris 5025249

BOLT, M8-1.25 X 20 MM GD 8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

14

Ferris 5025355

NUT, M8-1.25 Hex Serrated Flange
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

15

SEE TRANSAXLE DRIVE GROUP

$

$

Not available

16

SEE ELECTRICAL GROUP

$

$

Not available
