F 60Z (5901549) - Ferris F60Z Series 36" Zero-Turn Mower, 19hp Kawasaki 36" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

F60Z Series 36" Zero-Turn Mower, 19hp Kawasaki

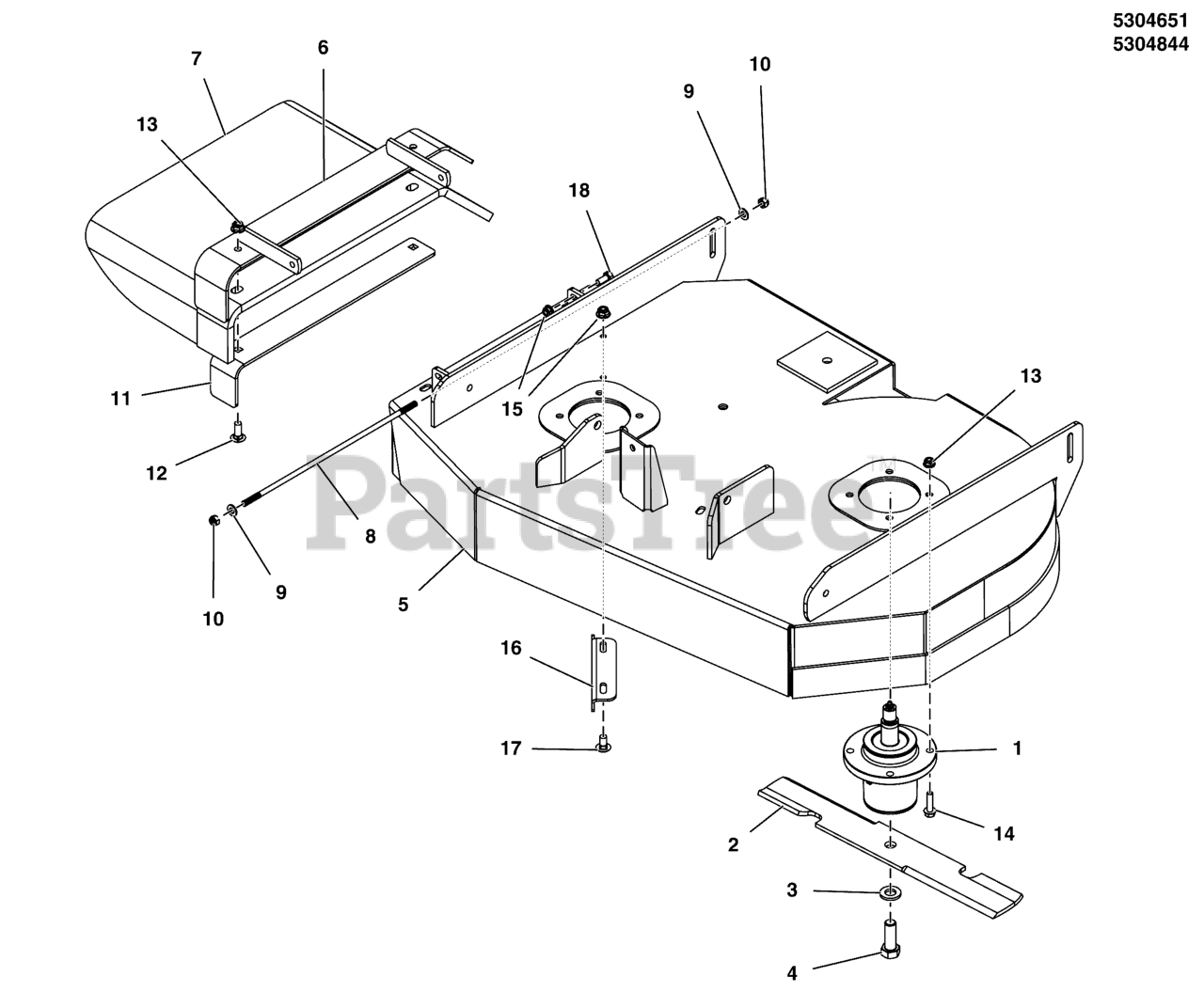

36" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title
1

Ferris 5061095

SPINDLE, ASSM, ALUMINUM - 5.25
(Superseded to 5061095FS)

$231.99

$

Usually ships in 2-12 days

0

2

Ferris 5101756X2

BLADE SET, 36 DECK (2)

$59.99

$

Usually ships in 2-12 days

0

3

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

4

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5600982

DECK SHELL W/DECALS, 36, F60Z (5415641B)

$1282.99

$

Usually ships in 2-12 days

0

6

Ferris 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

$50.99

$

In Stock, only 1 left!

0

7

Ferris 5413498

CHUTE, RUBBER DISCHARGE CHUTE (5104441)

$165.99

$

Usually ships in 2-12 days

0

8

Ferris 5042555

ROD, 5/16 X 13.75, TBE, CZ
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

9

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

10

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

11

Ferris 5413401A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5413401AA)

$32.99

$

Usually ships in 2-12 days

0

12

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

14

Ferris 5025390X10

BOLT, 3/8-16 X 1 1/4 FLANGE
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

15

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5415547A

PLATE, DEFLECTOR, 36" - BLK

$12.99

$

Usually ships in 2-12 days

0

17

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

18

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0
