F 50XT (5901270) - Ferris F50XT Series 48" Zero-Turn Mower, 24hp Briggs & Stratton Main Frame & Front Caster Group Parts Diagram

F50XT Series 48" Zero-Turn Mower, 24hp Briggs & Stratton

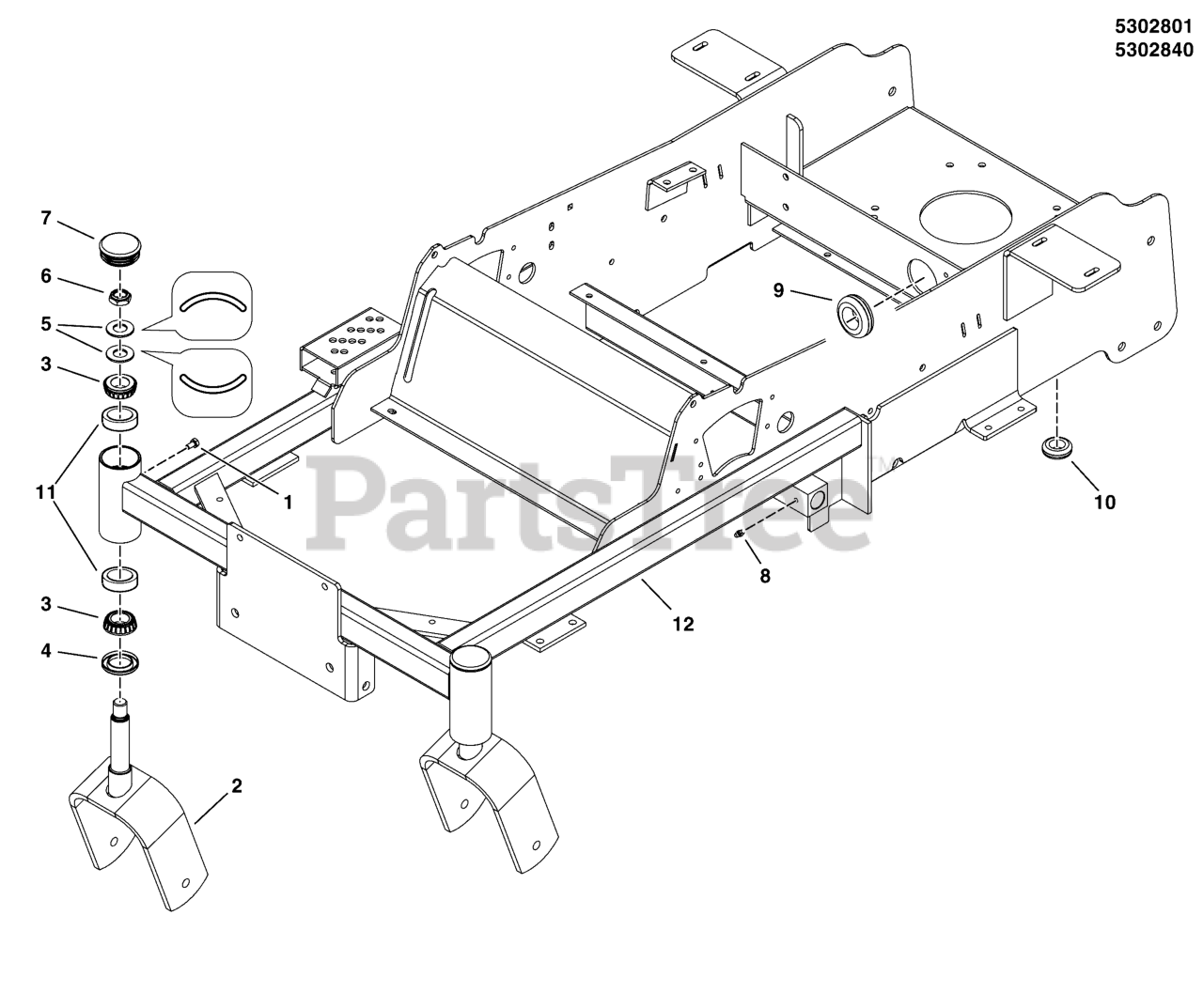

Main Frame & Front Caster Group Parts Diagram

1

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

In Stock, only 3 left!

0

2

Ferris 5402539B

WELD, CASTER YOKE - RED
(Superseded to 5402539BFS)

$201.99

$

Usually ships in 2-12 days

0

3

Ferris 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

4

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 3 left!

0

5

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

6

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

7

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

8

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

9

Ferris 5100716

GROMMET, 2" ID
(Superseded to 5100716YP)

$5.49

$

Usually ships in 2-12 days

0

10

Ferris 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

11

Ferris 5020883

CUP, BEARING (SV)

$8.99

$

Usually ships in 2-12 days

0

12

* WELD, MAIN FRAME, F50XT - RED

Note: (Refer to Note: *)

$

$

Not available
